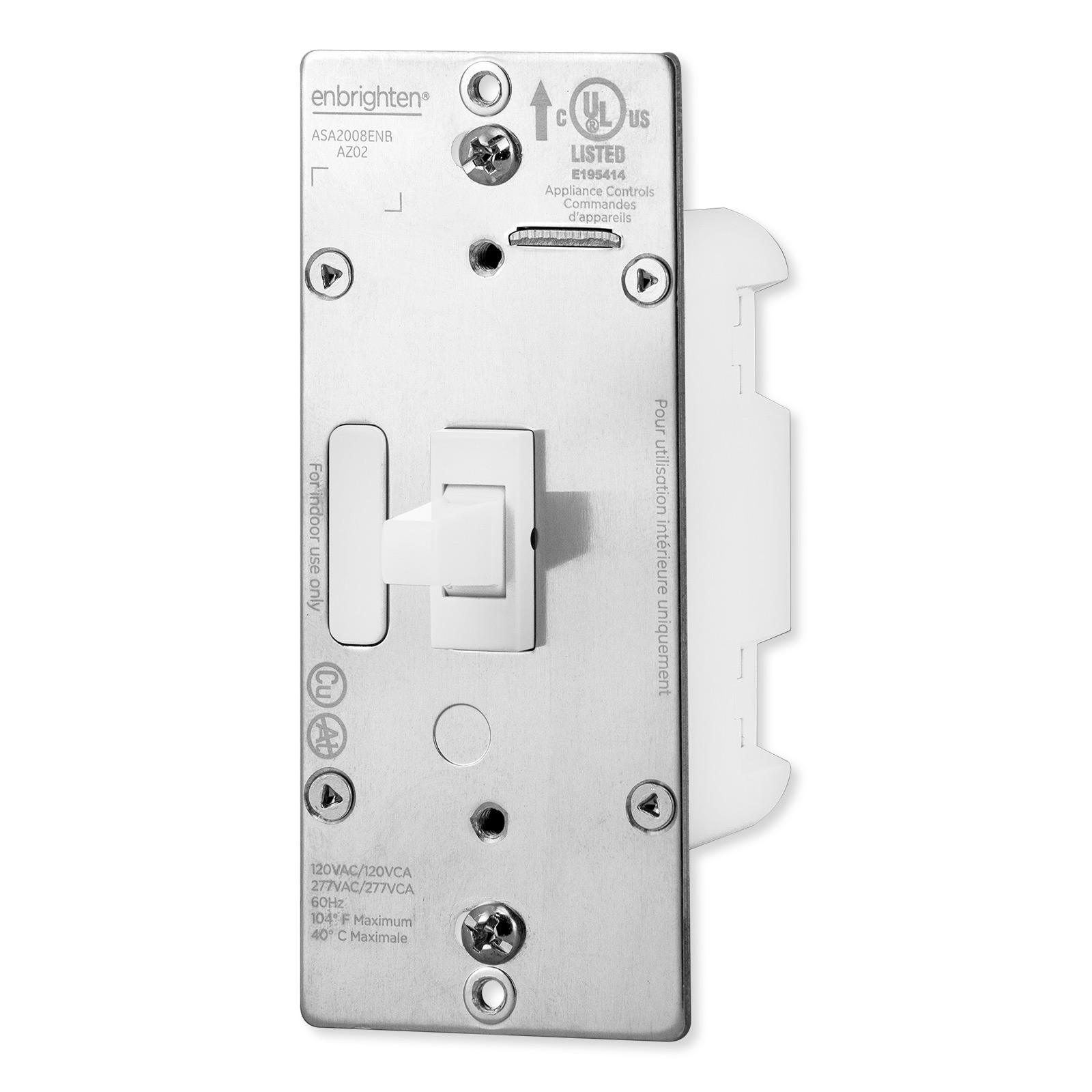

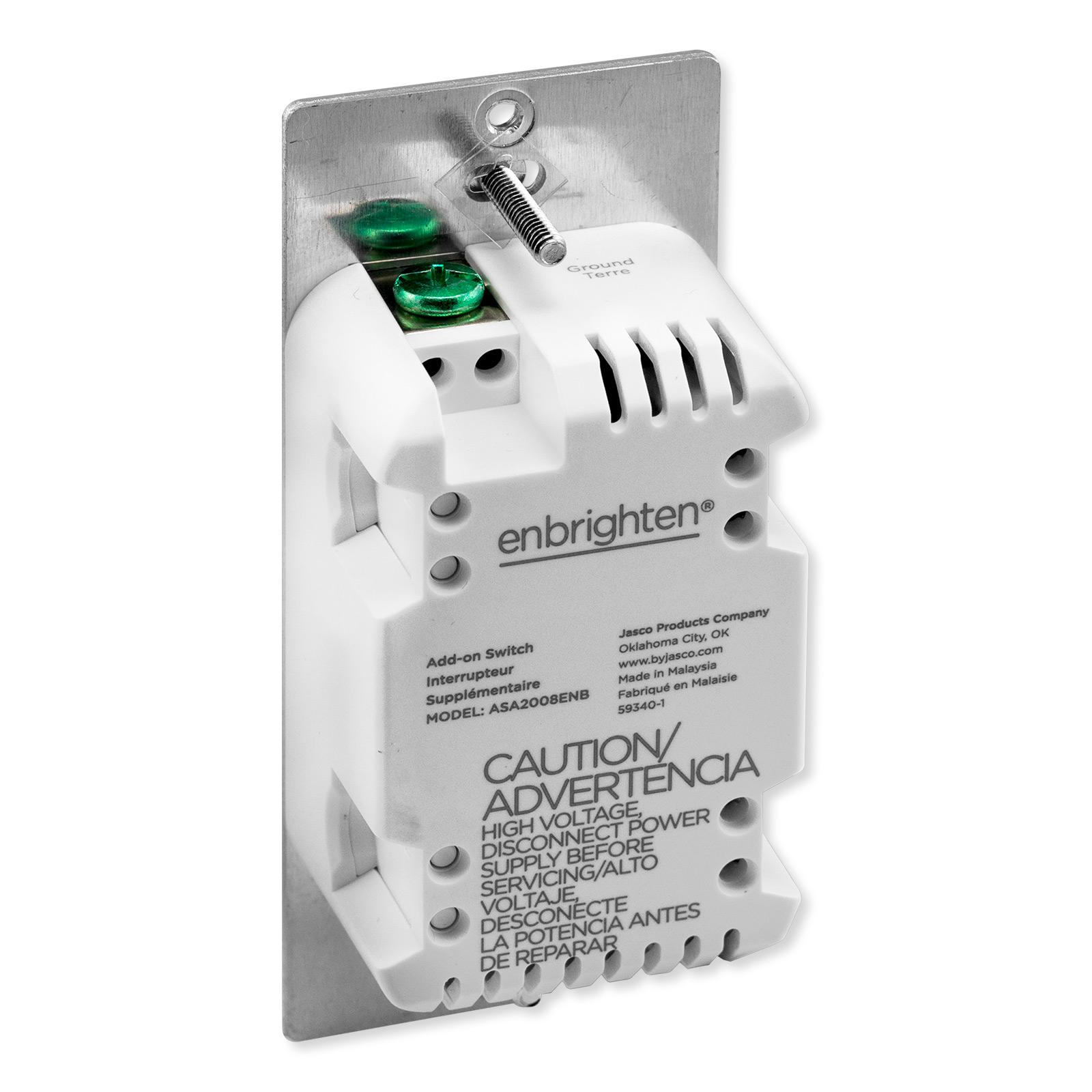

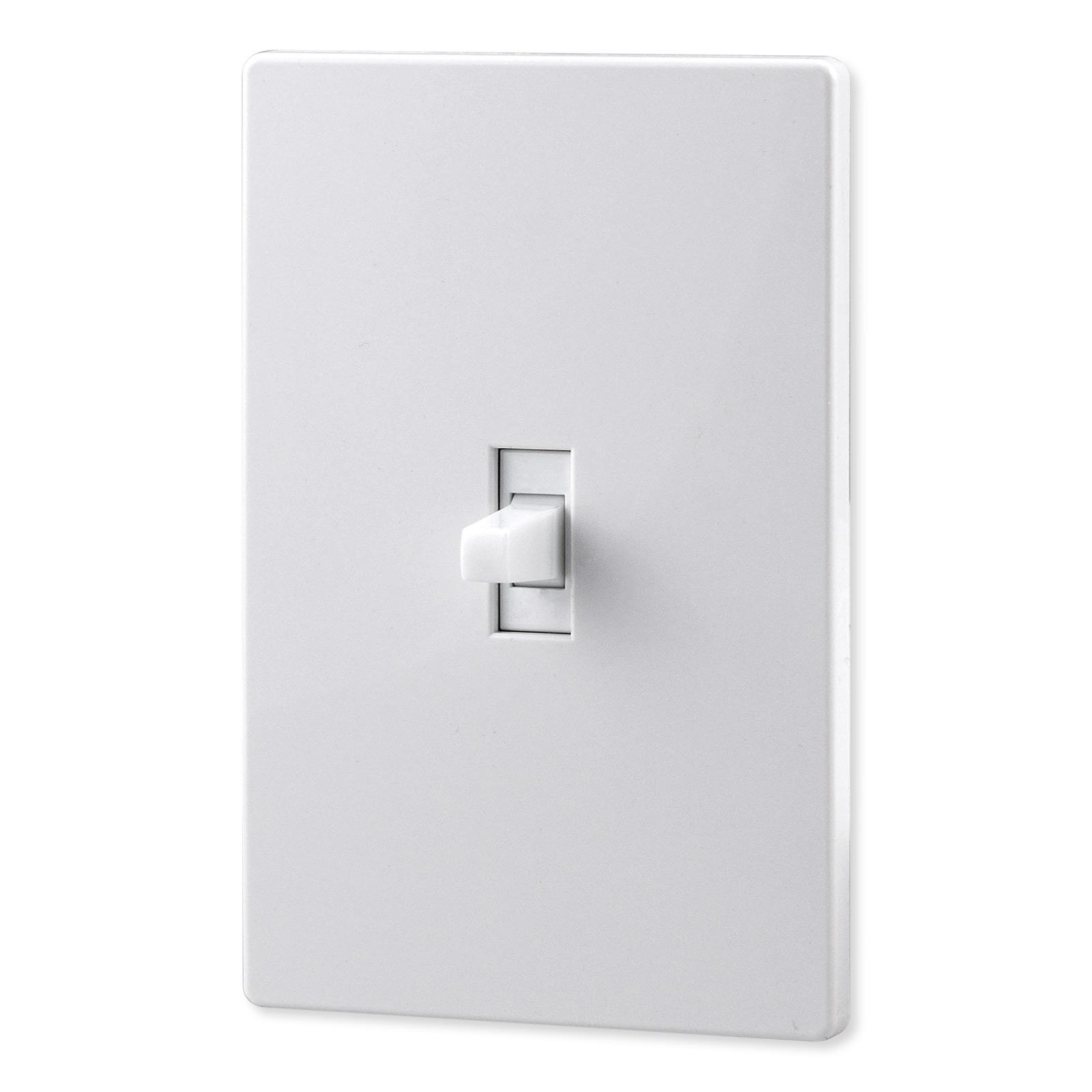

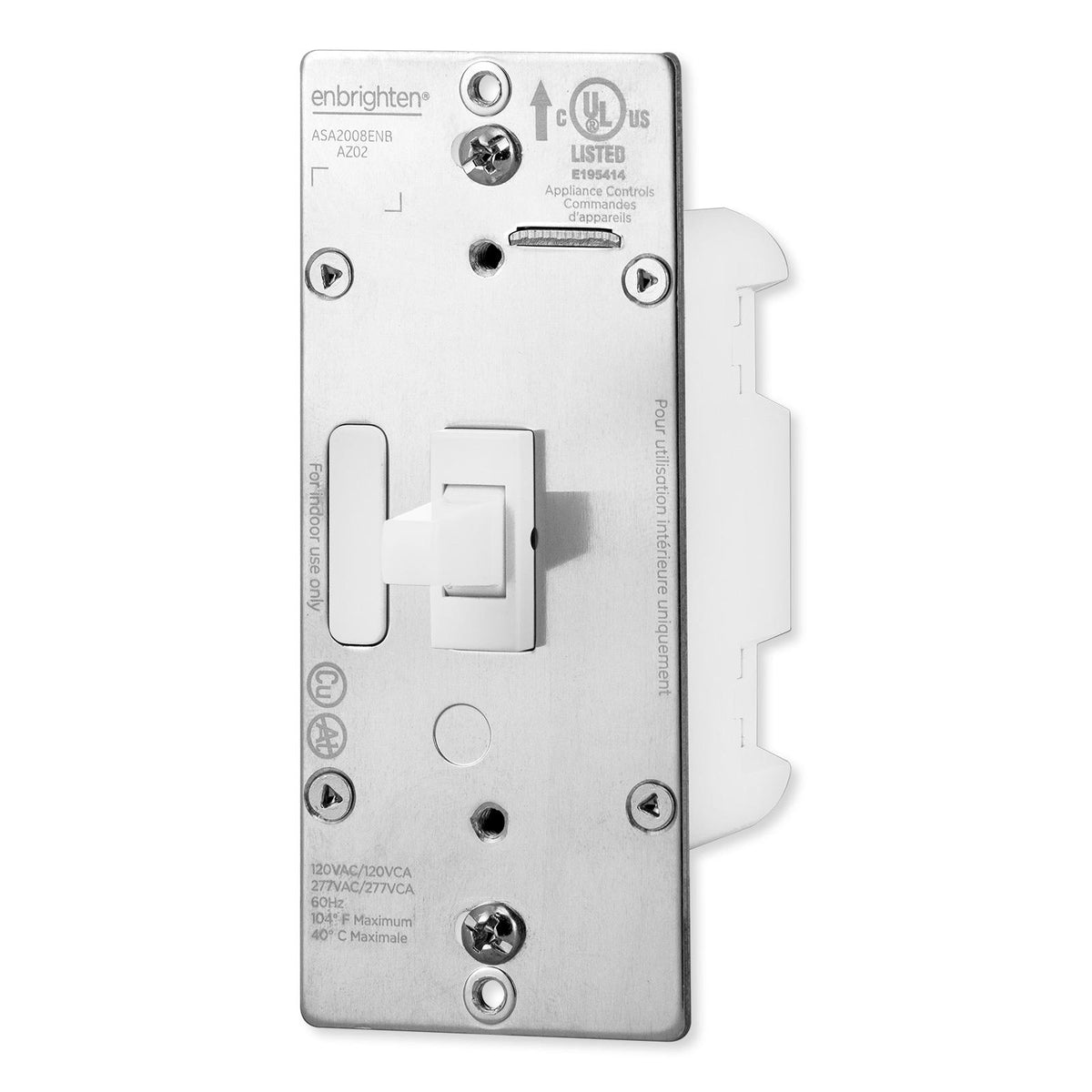

  • Jasco Enbrighten Add-On Switch, White Toggle

    JA59340

    Notify me when this product is available:

    Control a Multi-Way Wired Load with Multiple Switches

    Install an additional switch to control a single lighting fixture or other electrical device from an additional location with the Enbrighten In-Wall Add-On Toggle Switch. This add-on toggle switch shares control of the same wired load as a connected primary Enbrighten in-wall switch or dimmer to create a multi-way lighting control configuration. If the connected Enbrighten primary switch is a part of a smart home automation network, the Add-On Toggle Switch remains capable of controlling the wired load but does not act as a signal repeater. The Add-On Toggle Switch cannot function as a standalone switch and must be included into or create a multi-way wiring configuration. The Switch can be included into multi-way wiring configurations up to 6-way control, with up to 4 Add-On Switches being paired with a single Enbrighten switch. If multiple Add-On Switches are a part of a single multi-way

    • Manufacturer Part #: 59340
    • UPC: 030878593403
    • Size: 1-Gang
    • Power: 120-277VAC, 60 Hz
    • Environmental Conditions: For indoor use only
    • Operating Temperature Range: 32 to 104° F (0 to 40° C)
    • Maximum Traveler Wire Distance: 300ft., interconnected between 4 Add-On switches; No more than 75ft between each switch
    • Maximum Traveler Wire Distance Between Primary and (1) Add-On Switch: 200ft
    • Dimensions: 4.13 H x 1.75 W x 1.13 inches D (104.9 x 44.5 x 28.7 mm)
    • Approvals: UL Certified
    • Warranty: 5 Year
