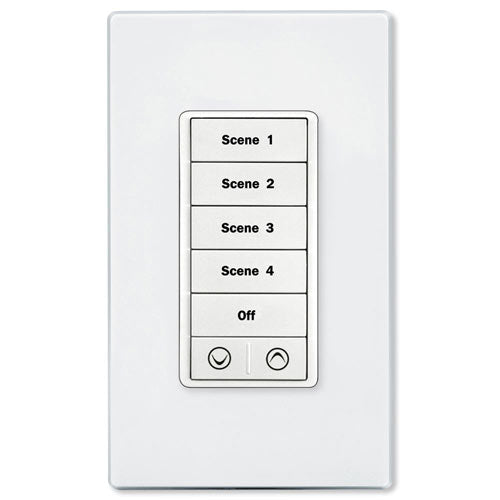

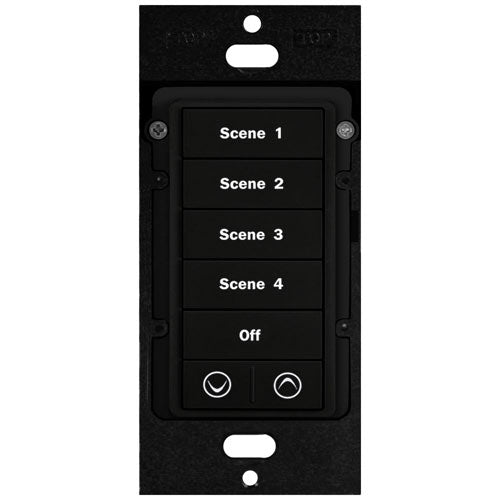

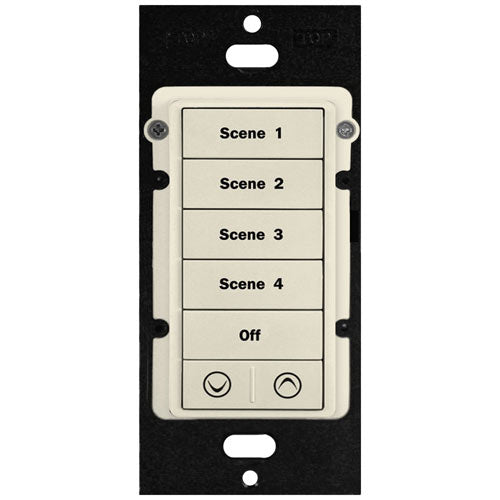

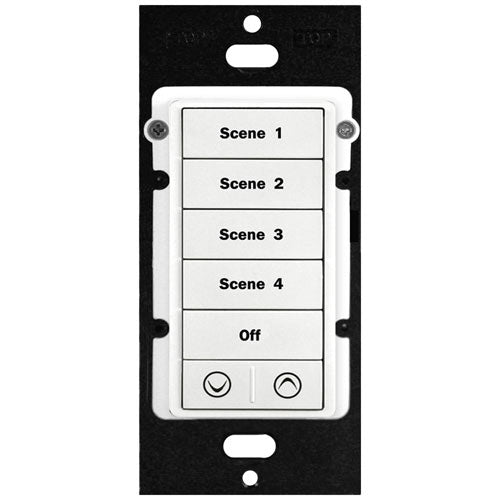

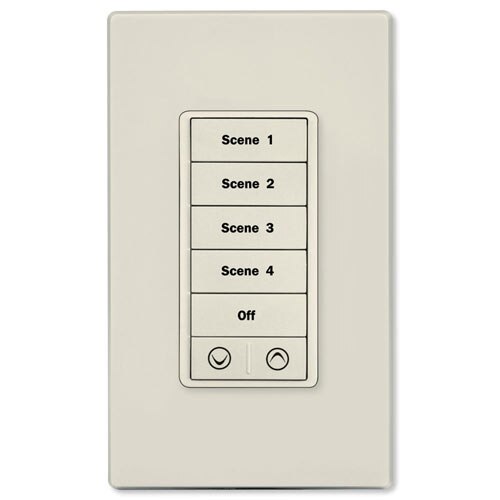

  • PCS PulseWorx UPB Wall Controller with Load Relay, 7 Button

    PCKPLR7B

    Color
    Black
    Light Almond
    White

    Notify me when this product is available:

    One Switch for Many UPB Devices

    PulseWorx by Powerline Control Systems (PCS) Logo

    As a dual-purpose UPB controller, the PulseWorx UPB Wall Controller with Load Relay (7 Button) combines the functionality of PulseWorx's popular KPC Keypad Controllers with an On/Off relay. The standard keypad portion controls UPB receivers around your home, while the relay portion enables both local and UPB remote control for any type of wired light (including fluorescent) or motor load up to 8A.

    • Controls up to six UPB devices or scenes
    • Built-in On/Off relay for one load up to 8A
    • Pre-programmed with 8 light scenes
    • Can be a member of 16 different scenes
    • 16 function modes for each button
    • Fits in a single-gang box

    Each of the seven button

    »PCS PulseWorx KPLR-7 UPB Wall Controller with Load Relay Specifications (.pdf)»PCS PulseWorx KPLR-7 UPB Wall Controller with Load Relay Manual (.pdf)

    UPStart UPB Software

    This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
