    Home / Shop By Compatibility / PCS PulseWorx UPB Dimmer Fixture Module, 2 Channel, 400W

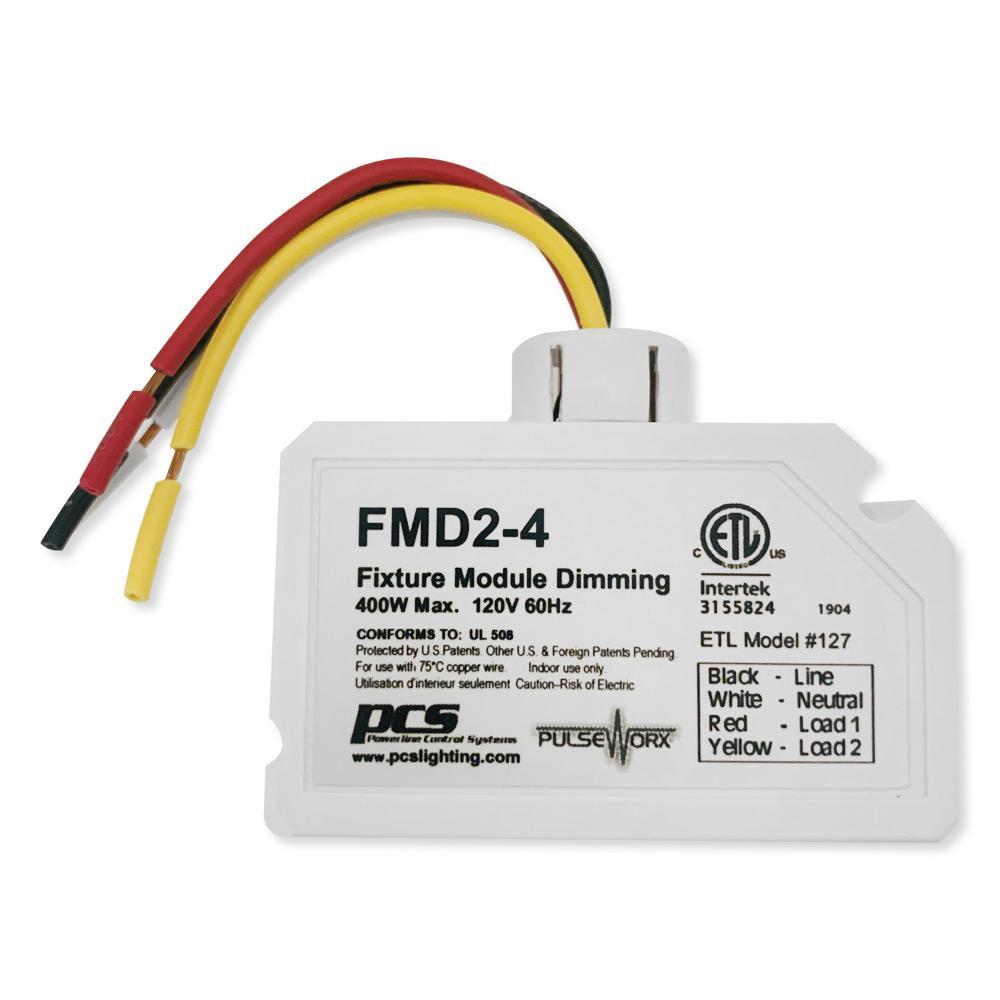

    PCS PulseWorx UPB Dimmer Fixture Module, 2 Channel, 400W

    PCS PulseWorx UPB Dimmer Fixture Module, 2 Channel, 400W

    PCFMD24

    $195.29

    Notify me when this product is available:

    Solution For Incandescent Lighting

    PulseWorx by Powerline Control Systems (PCS) Logo

    The FMD Fixture Module Dimmer is a two channel high quality wire-in home automation light dimmer which is capable of transmitting and receiving digital commands and status over the existing powerlines.

    The FMD is the ideal solution to controlling incandescent lights or fixtures that need to be individually controlled or are not currently wired to a dedicated wall switch location.

    Operation

    Each channel Pre-set on level may be programmed between 0% and 100%. Sixteen different fade rates can be selected – from instant-on to one hour – to give you ultimate flexibility in controlling how fast the lights fade on or off. The dimmer function can

    • Manufacturer Part #: FMD2-4
    • UPC: 811976011620
    • Power: Primary: 120 Volts AC, 50/60Hz
    • Transmission Channels: 2-Channel
    • Max Loading: 400W max. or 200W split between each channel
    • Environmental Conditions: Indoor Use Only
    • Temperature: -40° to 104°F (-40° to 40°C)
    • Humidity: 10% to 90% RH (non-condensing)
    • Certifications: UL-508-2010 CSA C22.2 #14-2010
    • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
    • LED Indicators: One per button; LED reflects status of Group
    • IR Receiver: No
    • During Power Outage: Retains all settings in Non-volatile EERPOM
    • Set-Up Mode: Press the setup button 5 times, the LED blinks to indicate a

    »PCS PulseWorx UPB Fixture Modules Spec Sheet (.pdf)»PCS FMD2 PulseWorx UPB Dimmer Fixture Module User Manual (.pdf)

    UPStart UPB Software

    This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »
