    Home / Shop By Compatibility / PCS PulseWorx UPB Dimmer Wall Switch, 6 Button

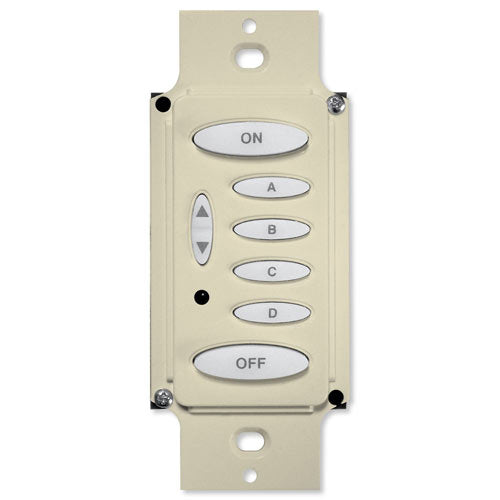

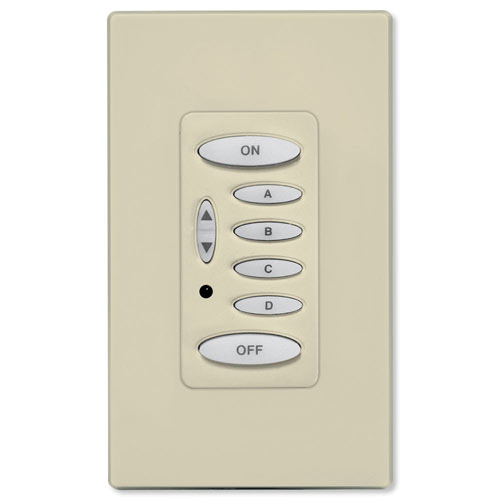

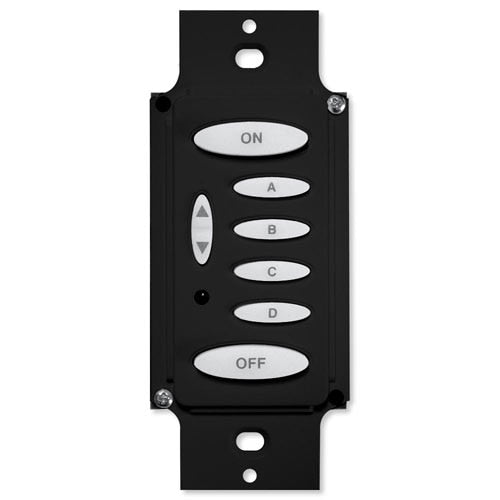

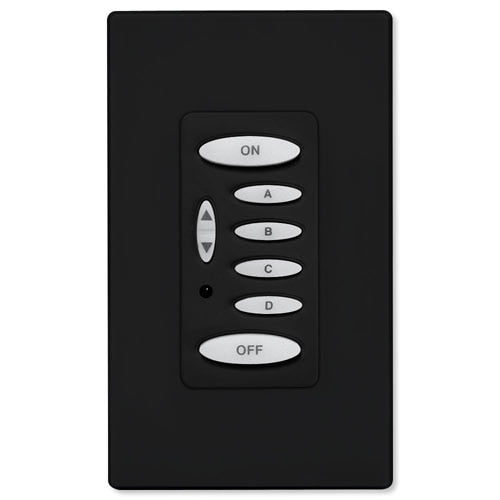

    PCS PulseWorx UPB Dimmer Wall Switch, 6 Button
    PCS PulseWorx UPB Dimmer Wall Switch, 6 Button
    PCS PulseWorx UPB Dimmer Wall Switch, 6 Button
    PCS PulseWorx UPB Dimmer Wall Switch, 6 Button
    PCS PulseWorx UPB Dimmer Wall Switch, 6 Button
    PCS PulseWorx UPB Dimmer Wall Switch, 6 Button
    PCS PulseWorx UPB Dimmer Wall Switch, 6 Button
    PCS PulseWorx UPB Dimmer Wall Switch, 6 Button

    PCS PulseWorx UPB Dimmer Wall Switch, 6 Button

    PCKPLD6AL

    $197.95 - $297.04
    Color
    Almond
    Black

    Features Keypad Backlighting & Blue Lighted Oval Buttons

    PulseWorx by Powerline Control Systems (PCS) Logo

    The Pulseworx Keypad Load Dimmer is an all-in-one Keypad Controller and Light Dimmer in a single package. This controller incorporates the functionality of the PCS KPC Keypad Controllers and a 350W Dimmer Switch.

    The KPLD can transmit and receive UPB digital commands over the existing electrical wiring to remotely turn on, off, and dim its own lighting load as well as trigger dramatic scenes through out a home.

    The Keypad Load Dimmer is capable of being a member of up to 16 links or scenes. Scenes allow you to control a single light or multiple lights with one button. Program each button to trigger a different scene, control specific lights or your whole house. L

    • Manufacturer Part #: KPLD-6-W (White)
    • Programmable Button Modes Each pushbutton can be programmed to control any of over 250 scenes or devices. Different control commands can be configured for the single-tap, double-tap, hold and release events.
    • Scene Control Pushbuttons can be used to activate it's load or scene as well as to adjust the scene's stored light levels.
    • Load Control The 350W rating can be configured to act as a dimmer or switch.
    • Programmable LED Feedback LEDs illuminate when On-type commands are both transmitted or received. LEDs extinguish when Off-type commands are both transmitted or received. Commands can illuminate and extinguish all other LEDs also.
    • Keypad Backlighting Pushbuttons can be faintly lit to aid in finding the keypad in the dark.
    • Aesthetic Design The Blue lighted oval button

    »PCS PulseWorx PLD-6 UPB Dimmer Wall Switch (.pdf)

    UPStart UPB Software

    This Windows-based application, along with a UPB Powerline Interface Module (PIM), allows you to program, configure and test your UPB smart home automation system. »Free download here
