Shelly Smart Security Bundle

Start an Essential Security System Out of One Box

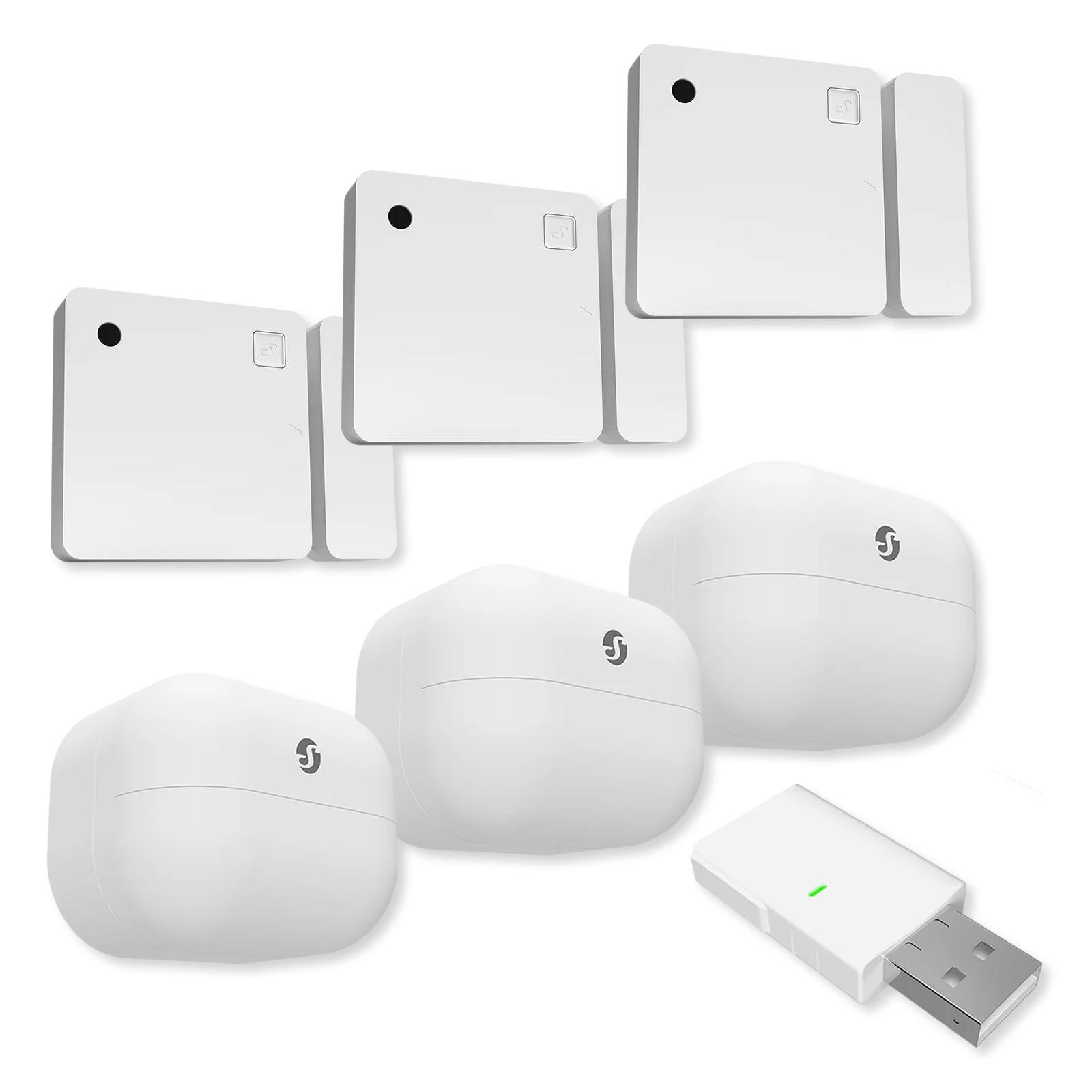

Quickly build a Bluetooth security system with the Shelly Smart Security Bundle. This Bluetooth compatible security kit includes 6 Bluetooth sensors, 3 motion sensors and 3 door/window sensors, and 1 Bluetooth gateway device, that together offer the essentials functions for any security system. The Shelly BLU Bluetooth to Wi-Fi USB Gateway bridges the gap between Bluetooth compatible devices and the Internet through your Wi-Fi network. The Shelly BLU Door Window Sensors report changes in status of monitored Open/Close objects. The BLU Motion Bluetooth Motion Sensors report detected movement within the sensor's detection range. Shelly BLU Door Window Sensors and the BLU Motion Bluetooth Motion Sensors can be managed and controlled via the Shelly Smart Control App for iOS and Android devices or included into Bluetooth compatible smart homes via a connection with a Shelly gateway device or Bluetooth compatible hub within range.

• Shelly BLU Bluetooth sensor and monitors open/close status of a door, window, or other open/close object
• Battery-powered (CR2032 included) for up to 5 years – no wiring required
• Measures illumination and the angle of inclination of a door/window that tilts and turns
• Immediate response time of less than 100ms – for indoor use only
• Can be integrated with other Shelly devices for home automation scenes and actions
• Shelly BLU Bluetooth motion sensor detects and reports movement within 29 feet (9m)
• Built-in lux meter reports real time light levels to trigger automated scenes
• Compact design for easy and discreet installation
• Long-lasting battery life up to 5 years
• Receive alerts, adjust settings, and create or change smart scenes from the Shelly Smart Control App (requires Shelly gateway device)
• Shelly BLU Gateway connects Shelly Bluetooth devices to your Wi-Fi network
• USB Type-A connector for straightforward installation
• Supports MQTT and WebSocket protocols for broad compatibility
• Acts as a Wi-Fi range extender to improve network coverage
• Enables scripting for local control and custom automation

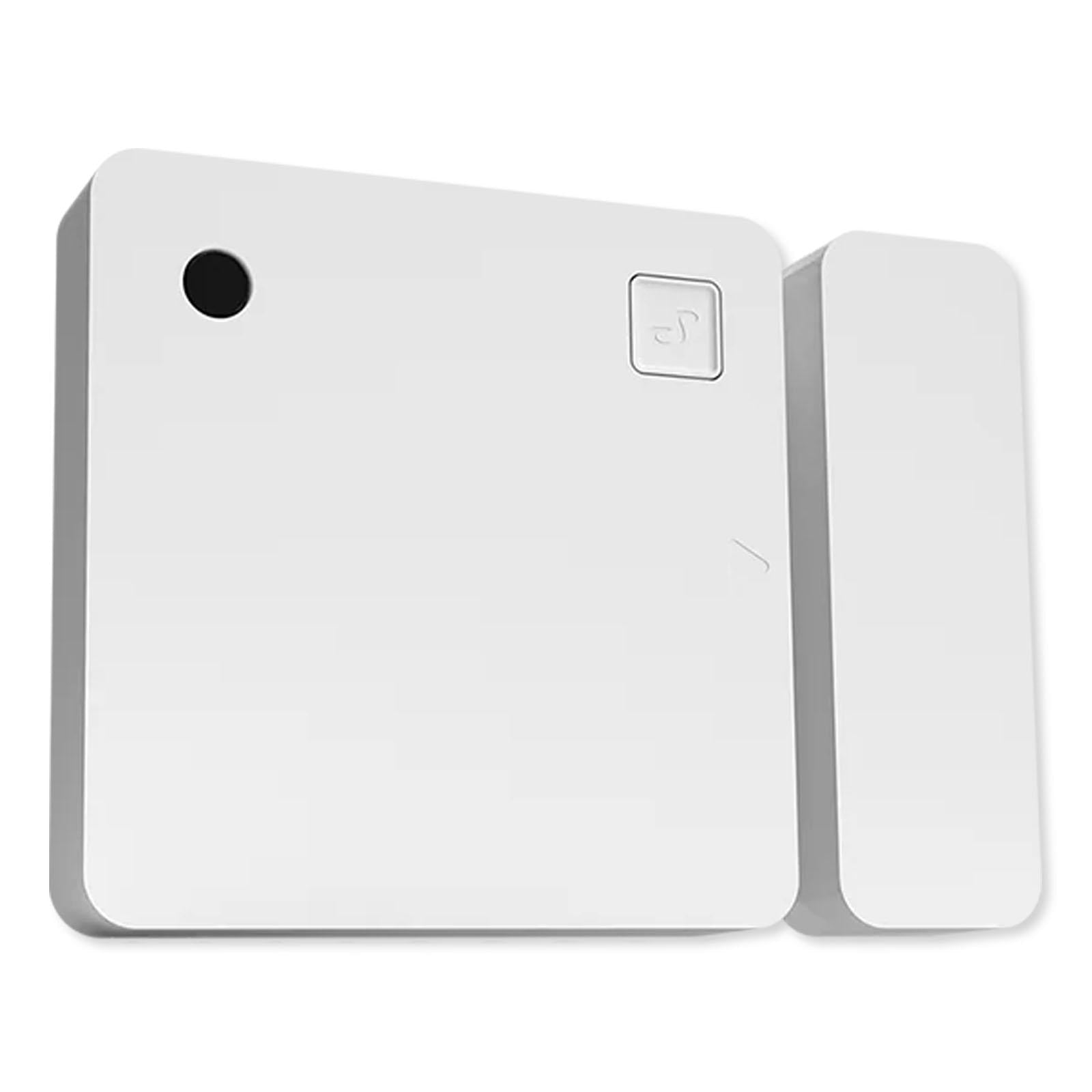

The Shelly BLU Door Window Sensor is a Bluetooth-operated sensor designed to report changes in status of a door, window, or open/close object and trigger an automated action once activated. It can be installed on just about any interior open/close object. Additional integrated LUX and tilt detectors allow for installation on tilt-and-turn windows or use with automated scenes such as closing the blinds or turning on lights when certain light levels are reached. This door/window sensor is stylishly designed to match your interior decor, has a battery life of up to 5 years (battery included).

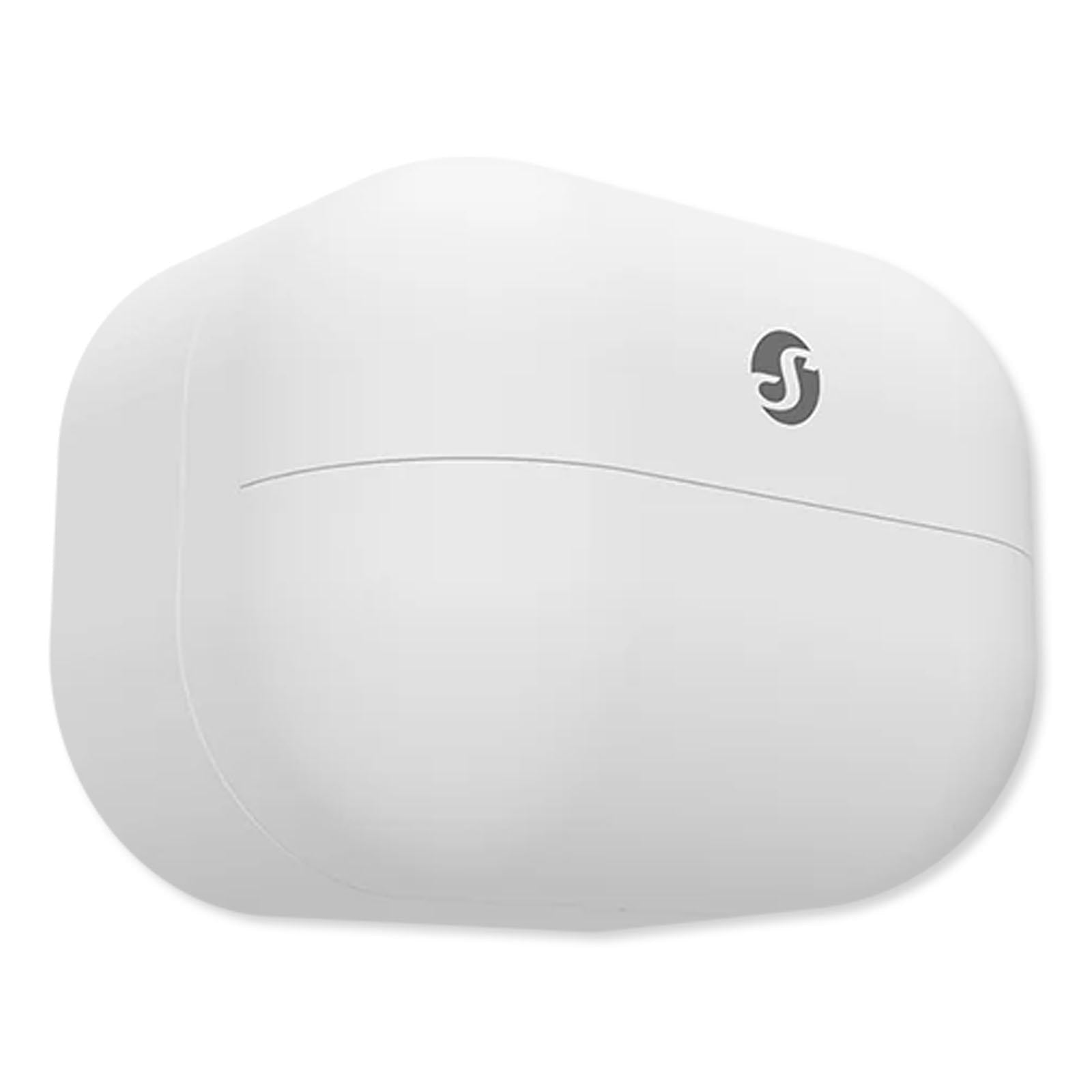

The Shelly BLU Motion Bluetooth Motion Sensor is a motion and light detecting sensor that notifies you through the Shelly Smart Control app when motion or changes in light levels are detected. With its smart sensitivity adjustment, the Shelly BLU Motion can distinguish between animal and human shaped movement, reducing false alarms. Its compact and sleek design allows for seamless integration into any home decor, while the long-lasting battery ensures continuous operation without frequent replacements.

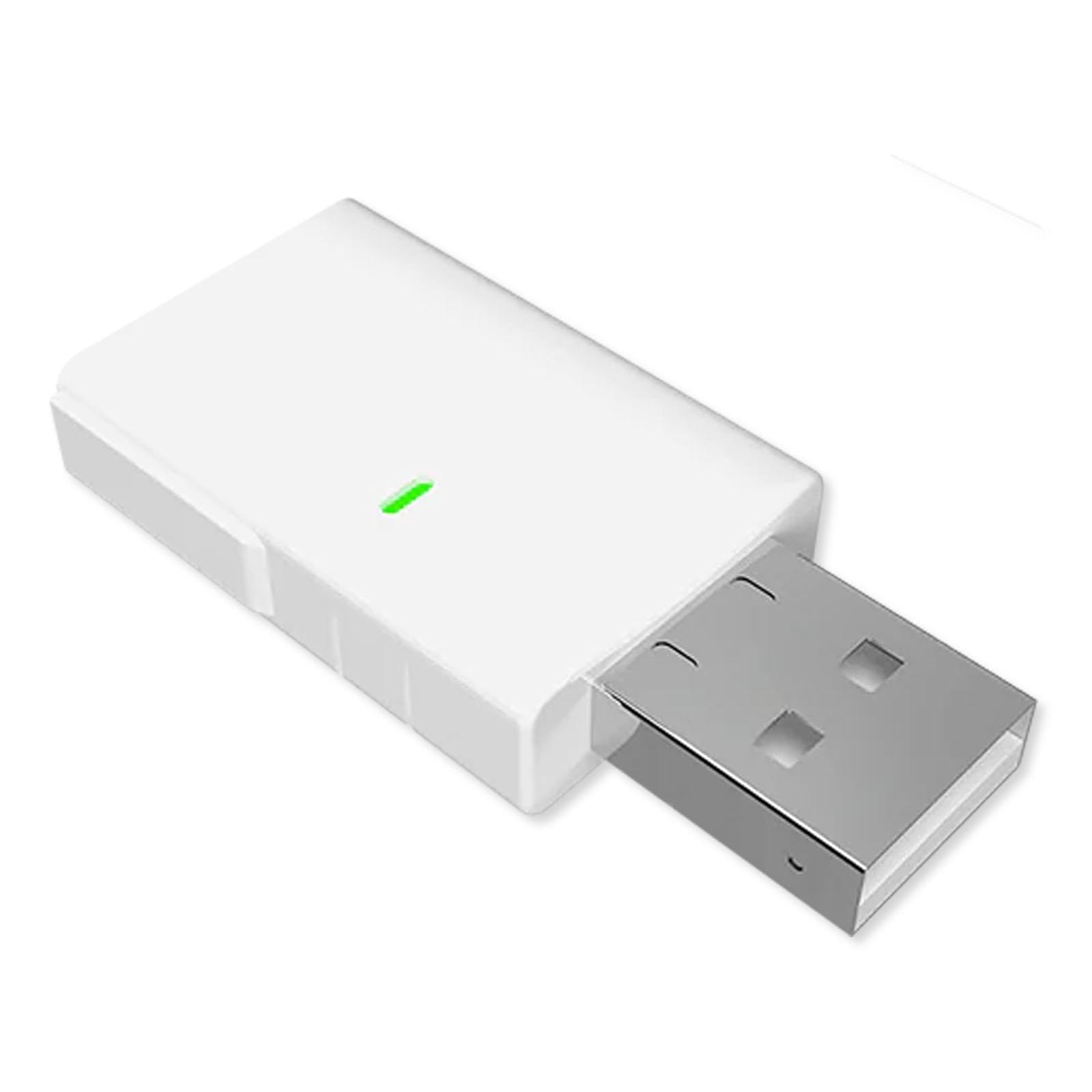

The Shelly BLU Bluetooth to Wi-Fi USB Gateway bridges the gap between Bluetooth compatible devices and the Internet through your Wi-Fi network. This USB Bluetooth to Wi-Fi gateway adds your Shelly BLU devices to your Wi-Fi network, acting as a bridge and a Wi-Fi extender for receiving Bluetooth signals and transmitting them to your Wi-Fi network. This device ensures your Shelly devices, from Shelly Gen1 to Gen4 Shelly Devices, and other Wi-Fi devices can interact with your BLU sensors in the same smart home ecosystem. With its USB Type-A connector, the Shelly BLU Gateway offers easy plug-and-play functionality, allowing you to plug it into a computer or a USB outlet or adapter. It supports MQTT and WebSocket protocols, making it compatible with Wi-Fi home automation systems including Home Assistant.

The Shelly BLU Gateway offers advanced features like local scripting which allows users to create custom automated scenes with their Shelly BLU devices and other Bluetooth and Wi-Fi devices within a smart home network. Its Wi-Fi signal range reaches 100 ft (30m) indoors and 160 ft (50m) outdoors, while its Bluetooth range reaches up to 66 ft (20m) indoors and 100 ft (30m) outdoors. The Shelly BLU Gateway can integrate with platforms like Home Assistant, which may offer these functionalities.

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills. Shelly devices are compatible with other most widely accepted both local and cloud based home automation platforms. A Shelly Smart Control App user account is required to access, include, and control Shelly devices through the Shelly Smart Control application and include your Shelly devices to 3rd party home automation or voice assistant platforms like SmartThings, Amazon Alexa or Google Home.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: Shelly Smart Control is natively compatible with Amazon Alexa.

Installation Details

The Shelly BLU Gateway plugs into a powered USB-A port or adapter. Once powered, it will automatically begin bridging Shelly BLU devices within operating range to your Wi-Fi network.

The Shelly BLU Motion Bluetooth Motion Sensor mounts onto flat surfaces using the included adhesive tape. To ensure optimal signal strength, the Sensor should be placed within range of a compatible Shelly Gateway device or Bluetooth-compatible hub network.

The Shelly BLU Door Window Sensor can be installed on just about any interior open/close object such as a door, window, safety gate, or garage door. To ensure optimal signal strength, the Sensor should be placed within range of a compatible Shelly Gateway device or Bluetooth-compatible hub network.

Contents

• (1) Shelly BLU Bluetooth to Wi-Fi USB Gateway
• (3) Shelly BLU Door Window
• (3) Shelly BLU Motion Bluetooth Motion Sensor
• (6) CR2477 Batteries (Pre-Installed)
• Mounting Adhesive Tape
• Screws for Optional Mounting
• Quick Start Guide
• Manual

Notes

• Shelly BLU Door Window Sensor requires a compatible gateway device to operate.
• Shelly BLU Gateway requires a powered USB port in order to operate.
• Ensure your Wi-Fi network operates on the 2.4 GHz band for optimal compatibility.
• For advanced features like scripting and MQTT integration, additional configuration may be necessary.
