  • 3-Phase Energy Meter with LAN, Wi-Fi and Bluetooth. Monitor the consumption of any home appliance, electric circuits and office equipment individually with active energy measurement accuracy of 1%.

    SHPRO3EM400

    Notify me when this product is available:

    Add Wi-Fi, LAN, & Bluetooth Connectivity to A Switch or Outlet

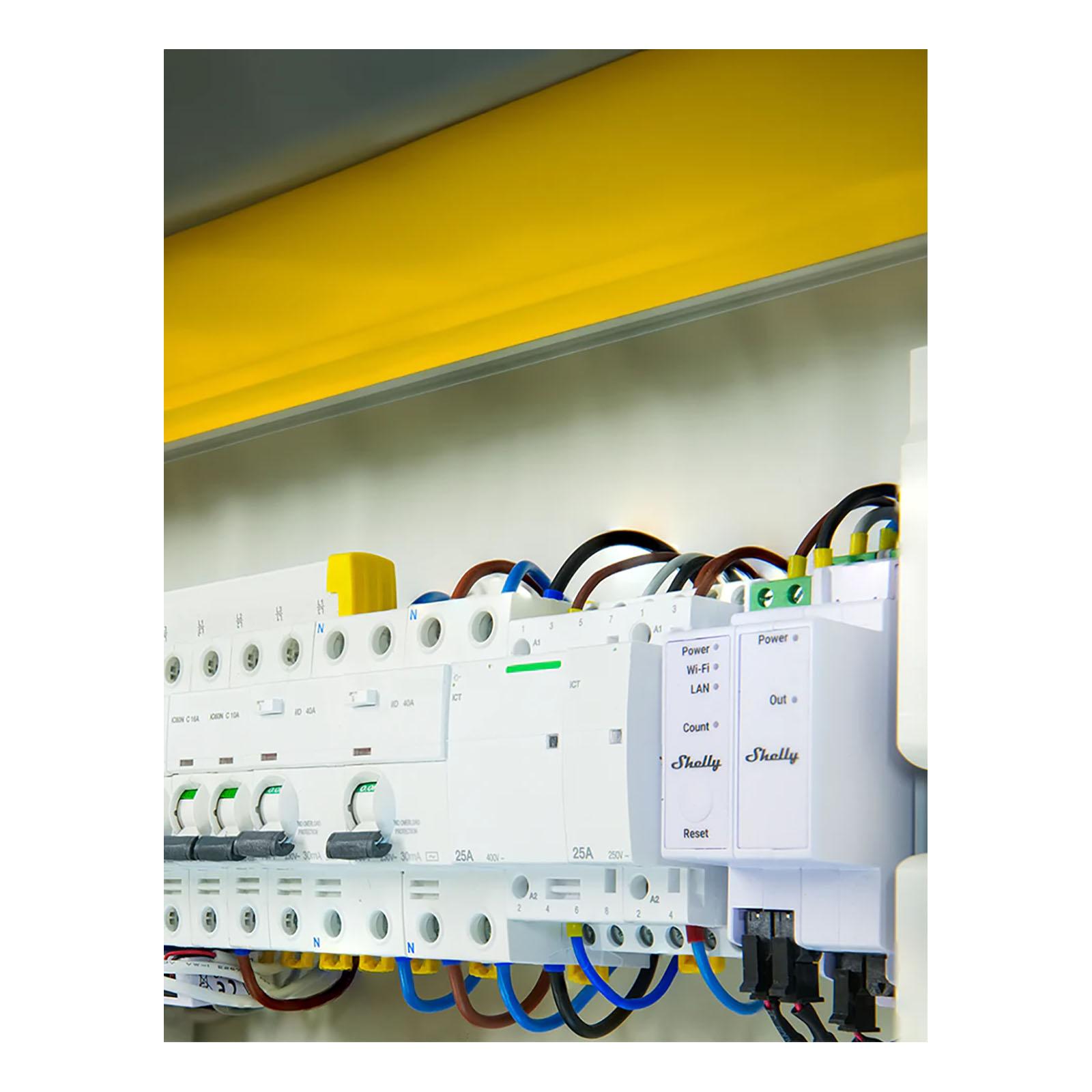

    Remotely monitor your appliances, home office, server room, and more through Wi-Fi & Bluetooth connectivity with the Shelly Pro 3EM-400A Wi-Fi & Bluetooth Module! This dry contact energy reader module mounts inside your breaker box to add remote power metering of up to 3 phase inputs on a single electrical load in your home or business. The device reports total consumed energy as well as instantaneous voltage, current, active, and apparent power per phase in real time. Data is stored on local memory that can be retrieved for a period of up to 60 days in 1-minute intervals. The Shelly Pro 3EM-400A supports resistive, capacitive, and inductive loads to allow for most electrical devices to be remotely monitored from your mobile device from the Shelly Smart Control app. It can be used as a standalone device in a local LAN and/or Wi-Fi network, or it can be operated through

    • Manufacturer Part #: SPEM-003CEBEU400
    • Model Part: Pro 3EM-400
    • EAN: 3800235268117
    • Warranty: 5-Year

    Radio

    • RF Band: 2400 – 2495 MHz
    • Max. RF Power: <20 dBm
    • Wi-Fi Protocol: 802.11 b/g/n
    • Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
    • Bluetooth Protocol: 4.2
    • Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

    Physical

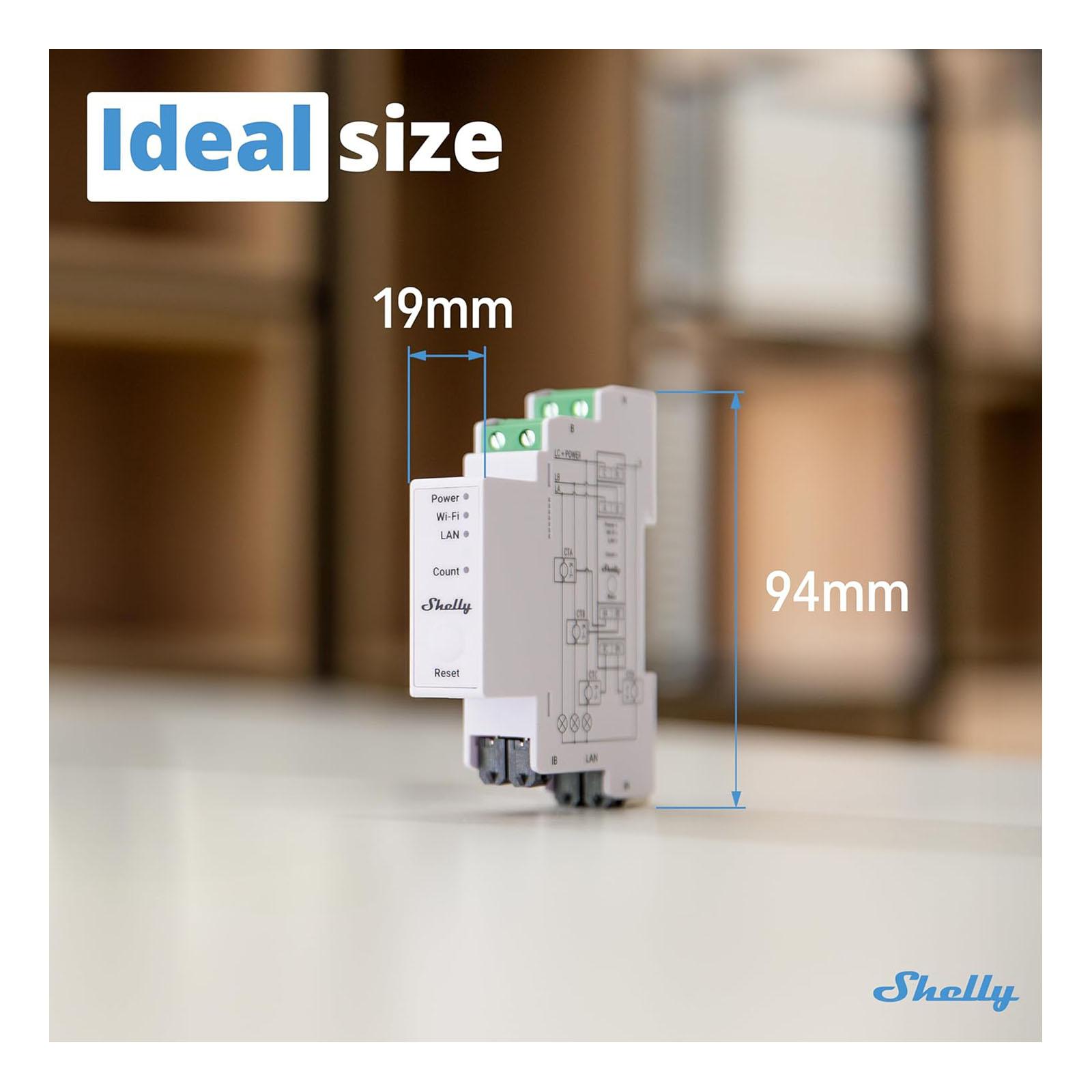

    • Size (HxWxD): 94 x 19 x 69 ±0.5 mm / 3.70 x 0.75 x 2.71 ±0.02 in
    • Weight: 62 g / 2.19 oz.
    • Mounting: DIN rail
    • Screw Terminals Max Torque: 0.4 Nm / 4.43
