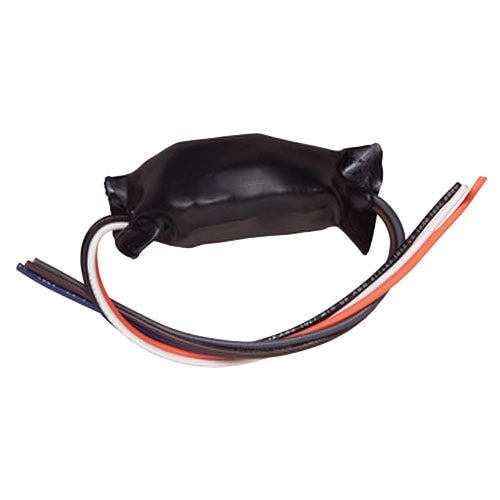

  • FirstAlert Wired-In Relay, 120V

    BRRM4

    Notify me when this product is available:

    Use With BRK & First Alert Alarms

    The 120VAC Smart Relay activates an auxiliary device when an alarm is triggered. The relay is designed for use with BRK and First Alert Smoke, Heat and Carbon Monoxide Alarms. When any interconnected alarm sounds, the relay contacts activate. The contacts automatically deactivate a few seconds after the alarm silences.

    • Activates auxiliary devices from smoke, CO and/or heat alarm signal
    • Works with all First Alert and BRK "Smart Interconnect" CO Alarms
    • Fits in most standard electrical boxes

    BRRM4 Wiring Diagram, Read Left to Right: Alarm AC Power to BRK Alarm to BRK Relay Module to both Auxiliary Device AC Power and Auxilliary Device

    When connected to BRK or First Alert alarms, the relay can activate an alert or other auxiliary device like

    • Manufacturer Part #: RM4
    • Dimensions: 3.5 (L) x 1.5 (H) inches
    • Weight: 2.2 ounces
    • Operating Voltage: 120V AC 60Hz
    • Operating Current: .02 amps (standby/alarm)
    • Temperature Range: 40 to 100° F (4 to 38° C)
    • Humidity Range: 10 to 90 percent relative humidity (RH)
    • Interconnections: Up to 18 units of First Alert or BRK Smoke, CO and Heat Alarms. Maximum of 12 smoke alarms. See user's manual for details.
    • Listing: Meets UL217, UL2034, UL539, ULC S-531, CSA6.19 and ULCS-530 for accessories.
