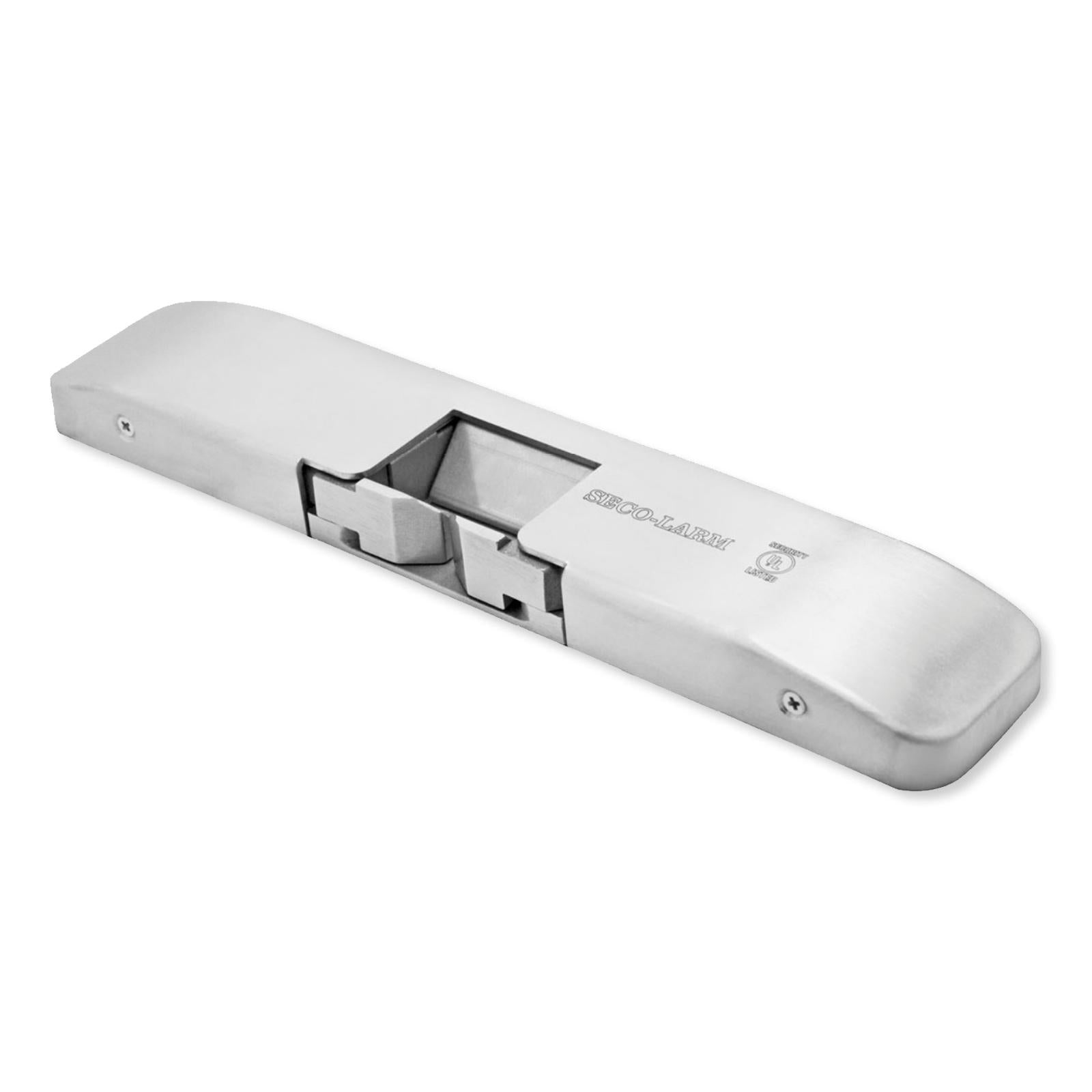

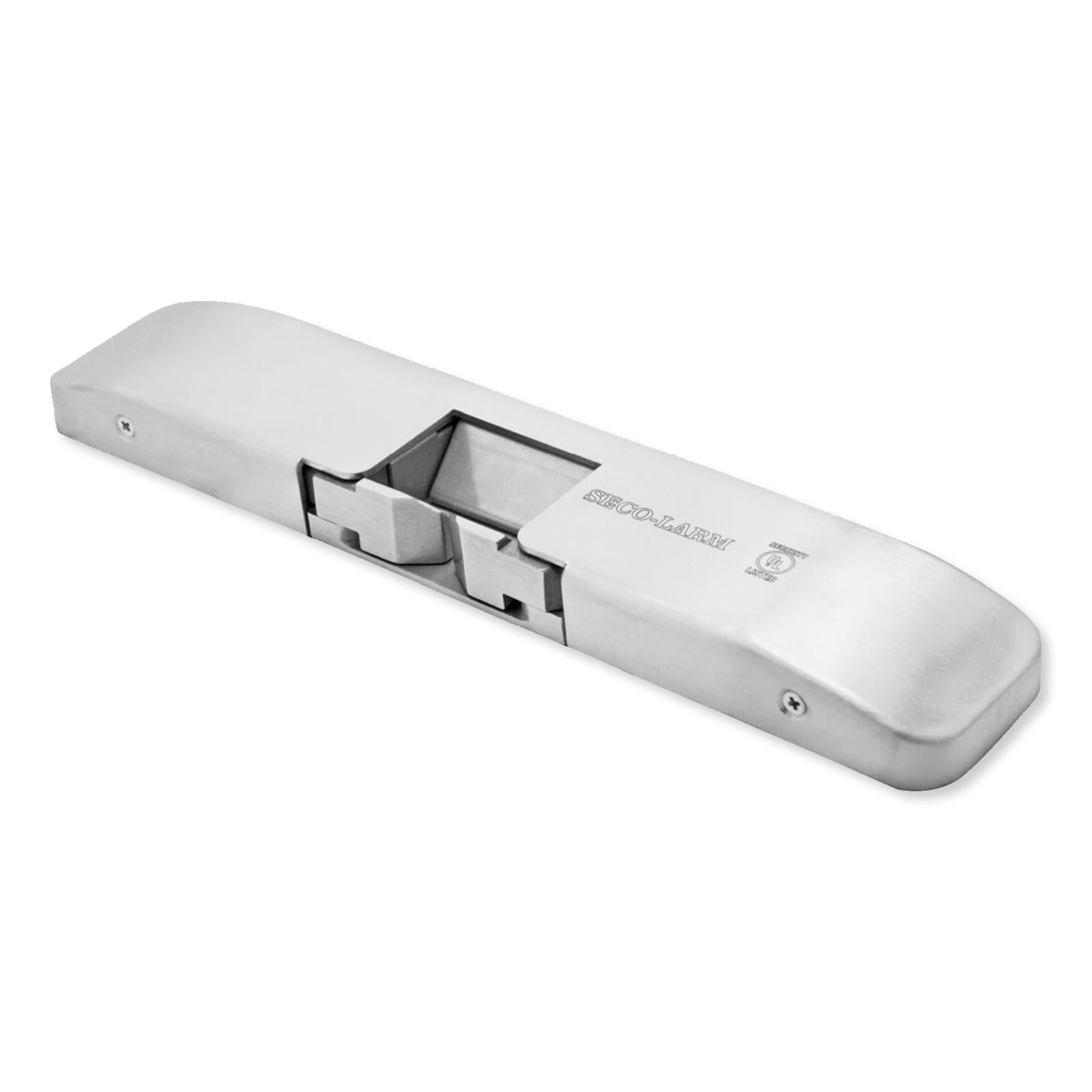

  • Seco-Larm Surface-Mount Electric Rim Strike, 1/2 Inch

    SESD998CD3AQ

    Ensure Secure Open/Close Access with an Electric Rim Strike

    Adds secure access control to your push bar release with the Seco-Larm Surface-Mount Electric Rim Strike, 1/2 Inch. This electric door strike for rim-type exit devices, operates with 1/2" Pullman latch bolts. It features fail-safe/fail-secure options for enhanced access control security and guaranteed operation in daily and emergency situations. The strike surface mounts onto metal or wood frames, eliminating the need for cutting into the frame during installation. Plus, the strike is built with durable, stainless steel for long-lasting use and it provides additional protection to your property because it's tamper-resistant.

    • Electric rim door strike for up to 1/2" Pullman latches
    • Surface-mounts on metal or wood frames
    • Field-selectable for fail-safe or fail-secure operation
    • Works with standard rim-type exit devices including SECO-LARM
    • Manufacturer Part #: SD-998C-D3AQ
    • UPC: 676544020424
    • Operating Voltage: 12/24 VDC
    • Current Draw: 540mA@12VDC, 270mA@24VDC
    • Maximum Latch Throw: 1/2" (13mm)
    • Static Strength: 1,500-lb (6673N)
    • Dynamic Strength: 70ft-lb (95J)
    • Endurance: 250,000 cycles (UL Tested), Level IV
    • Destructive Attack: Level I
    • Line Security: Level I
    • Standby Power: Level I
    • Operating Temperature: 14° to 120° F (-10° to 49° C)
    • Operating Humidity: 0 to 85%

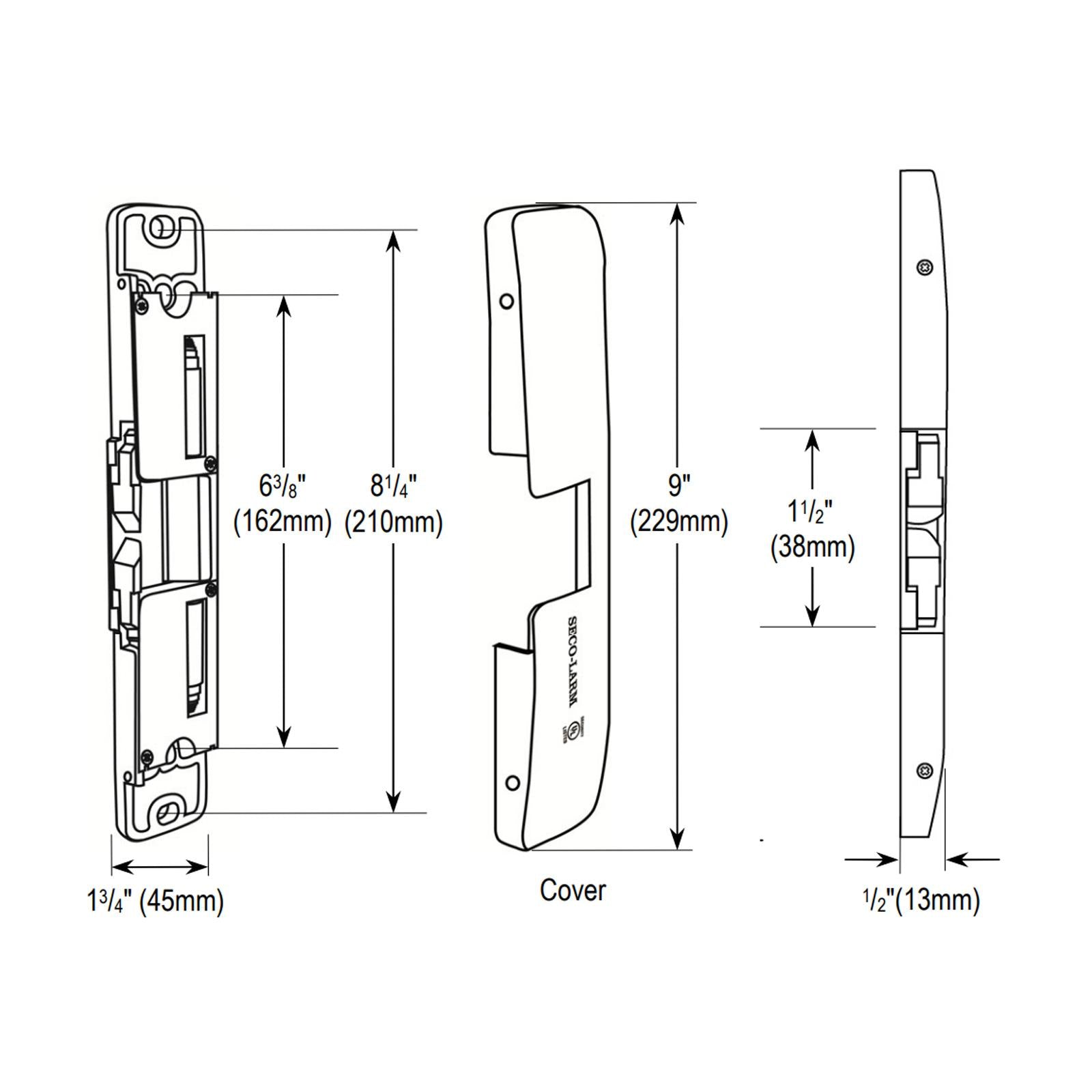

    • Dimensions: 9(H) x 1-3/4(W) x 1/2(D) inches (229 x 45 x 19 mm)
    • Warranty: 5-Year Limited
