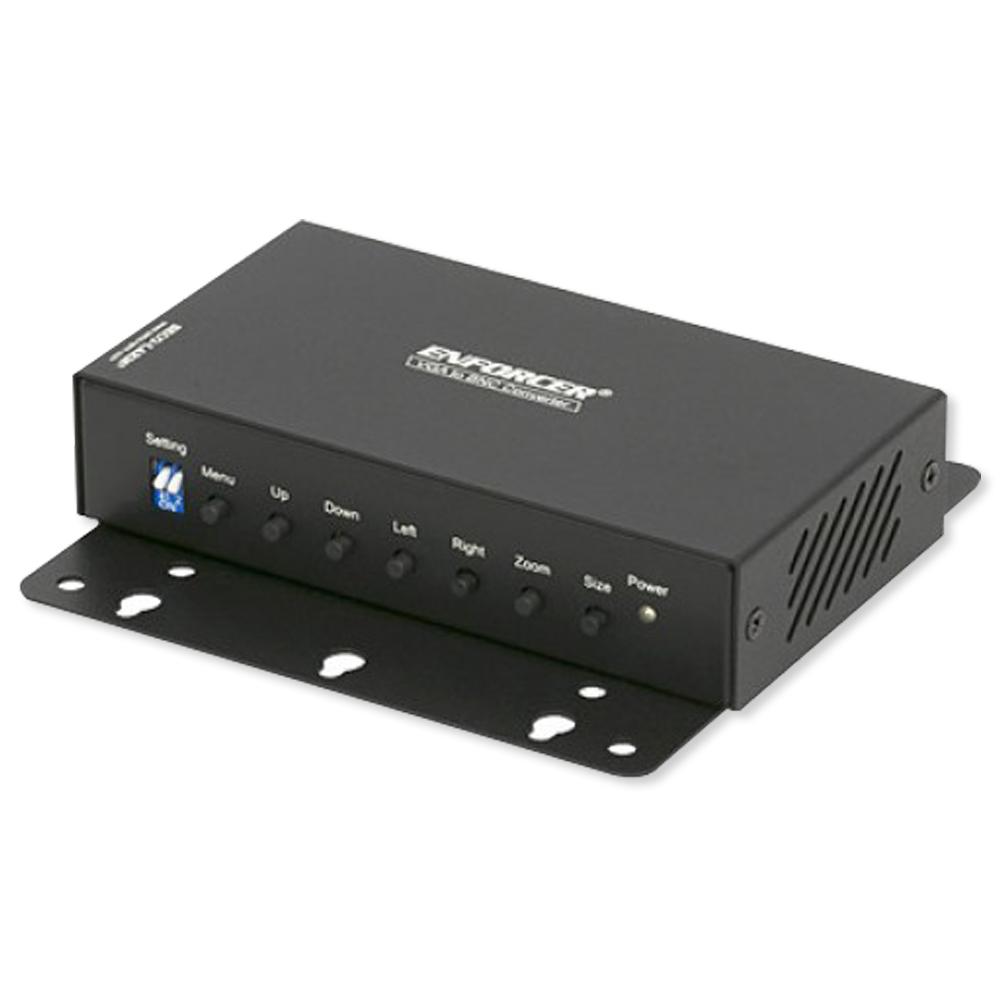

  • Seco-Larm Enforcer VGA-to-BNC Converter, 1024x768 Resolution

    SEVC2VAQ

    Notify me when this product is available:

    View VGA Signals on Devices With BNC Connectors

    Want to view a VGA signal on a TV, monitor, or other viewing device that only accepts a BNC connector? Simply use the Seco-Larm Enforcer VGA-to-BNC Converter (1024x768 Resolution) to convert the VGA signal to a BNC signal. It's great for connecting a DVR with a VGA output to an existing monitor with a BNC input.

    • Converts VGA signals to BNC signals
    • Perfect for CCTV/home surveillance applications
    • Auto-configures resolution up to 1024x768 (75Hz)
    • Gold-plated BNC connector for longer life
    • Desktop, wall, or VESA mountable

    The Converter features an included VESA mounting bracket and screws for attachment to the VESA mount found on most VGA monitors. Additional screws are included for alternative mounting to a wall or non-VESA monitor, and rubber feet are included for tabletop placement.

    Contents

    Product Features

    • Video standards: NTSC/PAL
    • Dual composite video (BNC) and VGA output ports
    • On-screen display (OSD) for image adjustments including size, brightness, contrast, hue, saturation, sharpness, and more
    • Quick installation – no driver or operating system requirements

    Technical Details

    • Manufacturer Part #: VC-2VAQ
    • Type: VGA to BNC
    • Input Signal: VGA
    • Output Signal: VGA: 0.7 Vp-p RGB, 15 pin female D-sub, Composite Video 1Vp-p 75ohm BNC
    • Maximum Resolution: Up to 1024x768 NTSC: 720x480 PAL: 720x576
    • Current Draw: 500mA@5VDC
    • Power Supply: 1A@5VDC, 2.5mm
    • Dimensions: 4-13/16 x 3-3/16 x 1-1/16 inches (122 x 81 x 27 mm)
    • Weight: 9.3 ounces (265g)
