  • Seco-Larm Enforcer Track-Mount Overhead Door Magnetic Contact NO/NC

    SESM4201L3Q

    Notify me when this product is available:

    Track the Status of Sliding Track Doors

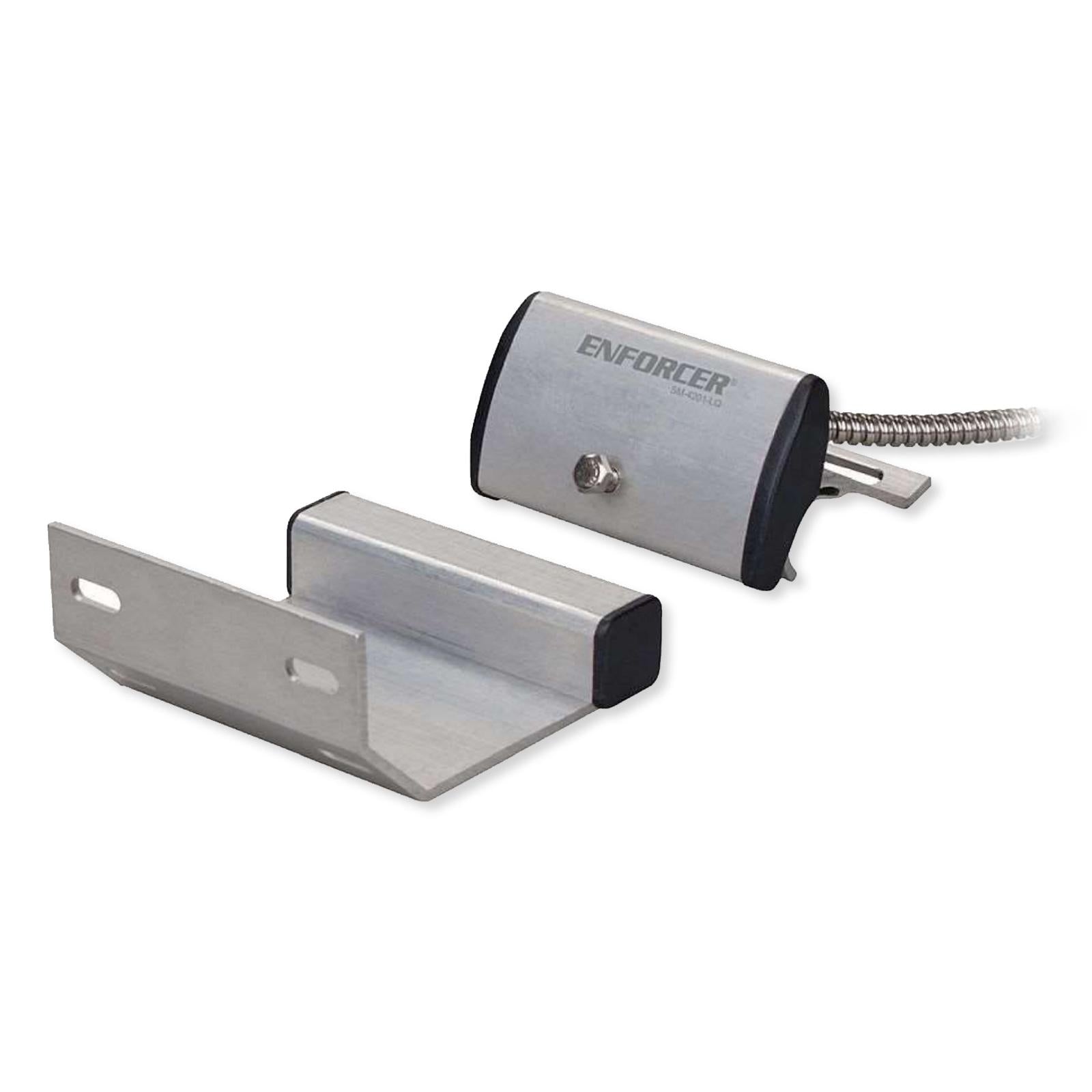

    Monitor the status of your track door with the Seco-Larm Enforcer Track-Mount Overhead Door Magnetic Contact, NO/NC. This magnetic contact switch is specifically designed to monitor and report the Open/Closed status of a track door mounted overhead. Its adjustable design allows it to be mounted overhead on a door with a wide door-channel gap between 2 and 3 inches wide. Doors with larger or smaller gaps require an L mounting bracket, sold separately. The contact can be mounted directly to the door channel while the magnet can be mounted vertically on the door. The Track-Mount Overhead Door Magnetic Contact is ideal for both residential and industrial properties. Its aluminum housing, iridium-plated contacts, and 36-inch armored cable protect it from extreme environments and ensure long-lasting use.

    • Contact sensor for overhead mounted track doors in both industrial and residential installation
    • Manufacturer Part #: SM-4201-L3Q
    • Loop Type: Open/Closed Loop
    • Operation Gap: 3" (76mm)
    • Case Material: Aluminum
    • Terminal Material: 36" (91cm) armored leads
    • Contacts: Iridium-plated
    • Contact Rating: 1.0A@10VDC (max), 10W (max)
    • Operating Temperature: -15 to 160°F (-25 to 70°C)
    • Switch Cycles: 50 Million (0.1mA@5VDC)

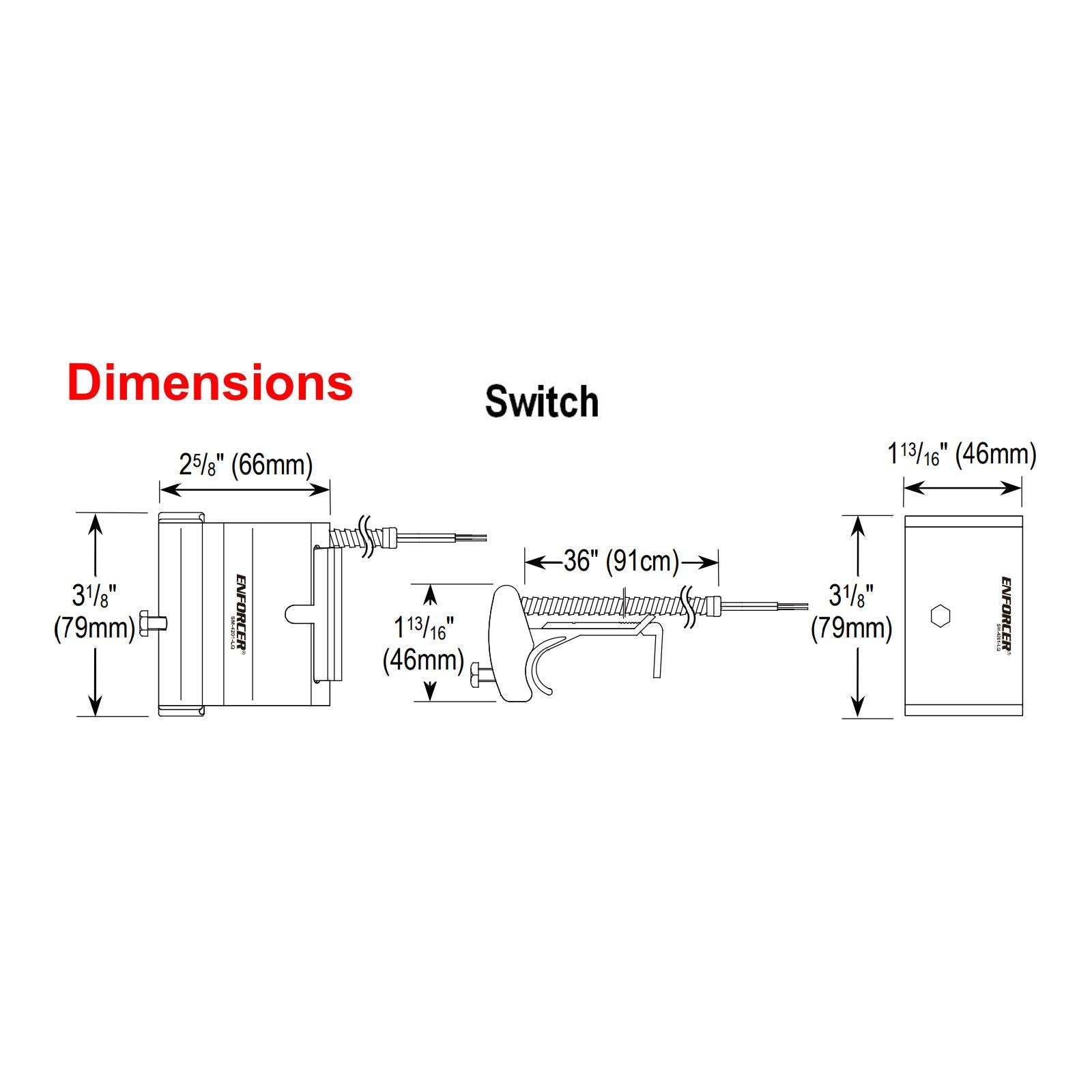

    • Switch Dimensions: 3-7/64" x 2-19/32" x 1-13/16" (79 x 66 x 46 mm)
    • Magnet Dimensions: 3-7/32" x 3-17/32" x 1-3/4" (82 x 90 x 44 mm)
    • Magnet Type: Ferrite
    • IP Rating: Weatherproof IP65
    • Warranty: Limited Lifetime
