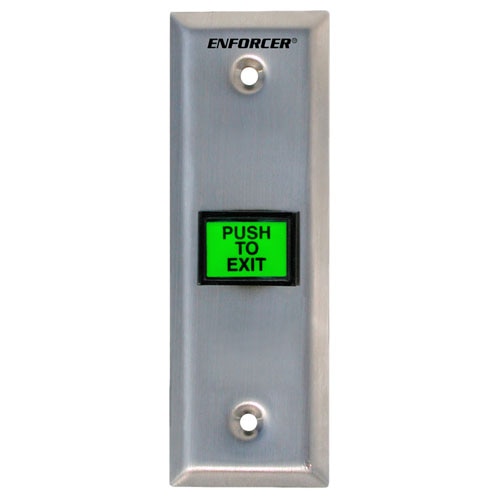

  • Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated

    SESD7103GCPEQ

    Slim Design For Narrow Installation

    The Seco-Larm Enforcer Slimline Push-to-Exit Plate is illuminated with a "PUSH TO EXIT" caption that can be easily changed to "PRESIONE PARA SALIR" in the field. The slimline plate features a narrow design for easy installation on tight wall panels.

    • Both English and Spanish messages included
    • Long-life green LED momentary button
    • Rubber-sealed switch to prevent liquid penetration
    • Plastic terminal protector for dividing individual terminals

    Contents

    • "PUSH TO EXIT" and "PRESIONE PARA SALIR" message plates
    • (6) Wire leads with easy-to-attach spade lugs for fast installation
    • Stainless-steel slimline plate
    • 680 ohm resistor

    Seco-Larm Security Products

    So many places and things to protect; so many ways to protect

    Technical Details

    • Manufacturer Part #: SD-7103GC-PEQ
    • Wire Leads: 12-inch, AWG 18, color-coded
    • Mechanical Lifetime: 2,000,000 operations
    • Unit Dimensions: 4-1/2 x 2-3/4 x 1-3/4 inches (114 x 70 x 45mm)
    • Button: N.O./N.C. contacts rated, DPST, 5 Amps at 125~250 VAC
    • Button Dimensions: 15/16 x 11/16 inches
    • LED: 12/24 VAC/VDC, approx. 35,000-hour life
    • Resistor: 680 ohms, 0.5W
    • Plug-In Terminals: 6
    • Warranty: 1 Year
    • CE and UL approved
