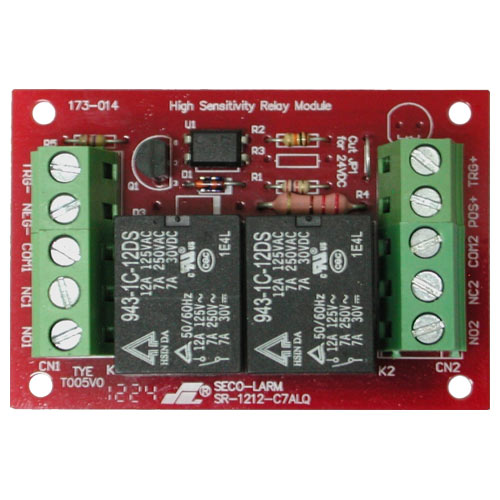

  • Seco-Larm Enforcer Relay Module, 3~24VDC Low Trigger Voltage, Two 7A Form C SPDT Relays

    SESR1212C7ALQ

    Notify me when this product is available:

    General Purpose Dual Form C SPDT Relay

    As a general purpose relay, the Seco-Larm Enforcer Relay Module (3~24VDC Low Trigger Voltage, Two 7A Form C SPDT Relays) can be used for various Single Pull Double Throw (SPDT) applications. Pre-wiring and screw terminals on the board facilitate installation.

    Building A Secure Future Since 1971

    So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it’s physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

    • Supply Voltage: 12/24VDC
    • Trigger Voltage: 3~24VDC
    • Voltage Selection: Jumper
    • Relay Type: SPDT
    • Relay Ratings: 7A
    • # of Relays: 2
    • Active Current: 60mA at 12/24VDC
    • Size: 2-3/4 x 1-9/16 x 3/4 inches (70 x 40 x 20 mm)
    • Weight: 1.3 ounces (37g)
    • Approvals: FCC, RoHS, ISO 9001
    • Warranty: 1 Year
