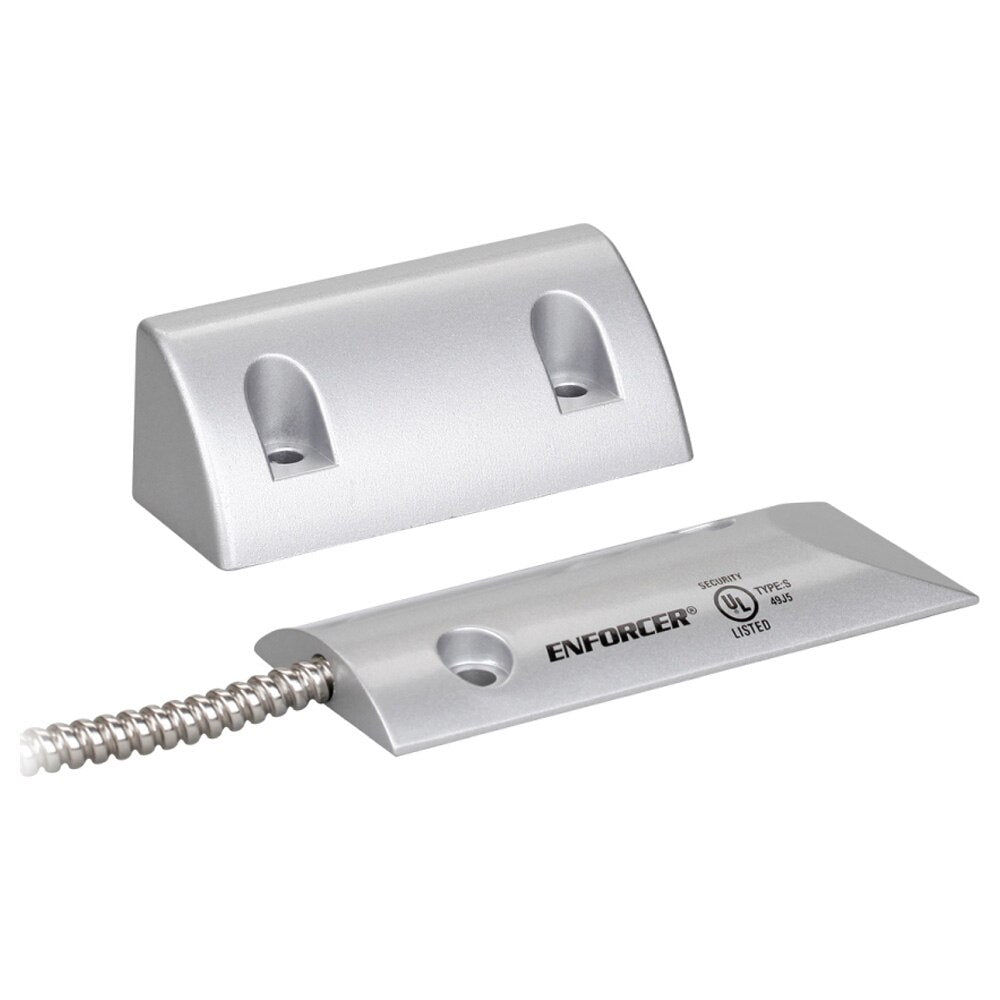

  • Seco-Larm Enforcer Overhead Door Magnetic Contact, Open/Closed Loop

    SESM226R3Q

    Notify me when this product is available:

    Heavy-Duty Contact for Open or Closed Circuits

    The Seco-Larm Enforcer Overhead Door-Mount Magnetic Contact (Open/Closed Loop) is a three-wire NO/NC contact that allows you to monitor the open/closed status of an overhead garage door or screen. This model is suitable for alarm systems with either closed or open circuits. The contact switch is protected by curved low-profile cast aluminum housing, which anchors to the floor. Because the contact’s wire leads are also protected inside a stainless-steel cable, vehicles can run over the unit without causing damage.

    • Low-profile cast aluminum housing anchors to the floor
    • Durable ABS case protects magnet mounted on L-shaped bracket
    • 24" (61cm) wire leads enclosed in stainless-steel cable
    • Used in open or closed circuit applications

    Building A Secure Future Since 1971

    So many places and things to protect; s

    • Manufacturer Part #: SM-226R-3Q
    • Gap: 2-3/4 inches (70mm)
    • Wire Leads: 24 inches (61cm)
    • Switch Dimensions: 4-3/8 x 1-3/4 x 7/16 inches (111 x 44 x 11 mm)
    • Alarm Circuit: Three-wire N.O./N.C. Contact for either closed or open circuit alarm systems. Simply connect the green (N.O.) and black (common) wires for closed circuit systems or the red (N.C.) and black wires for open circuit systems.
    • Reed Switch: Gold under-plating with DEACTIVATED RHODIUM outer-plating. SECO-LARM contacts have a unique RHODIUM plating which has gone through a special oxygen treatment to DEACTIVATE the surface, thus eliminate the absorption of organic impurities, polymer growth during operation, and the possibility of contact freezing.
    • Switch Housing: Weatherproof die-cast aluminum constructed for surface-mounting on garage floor; able to withst
