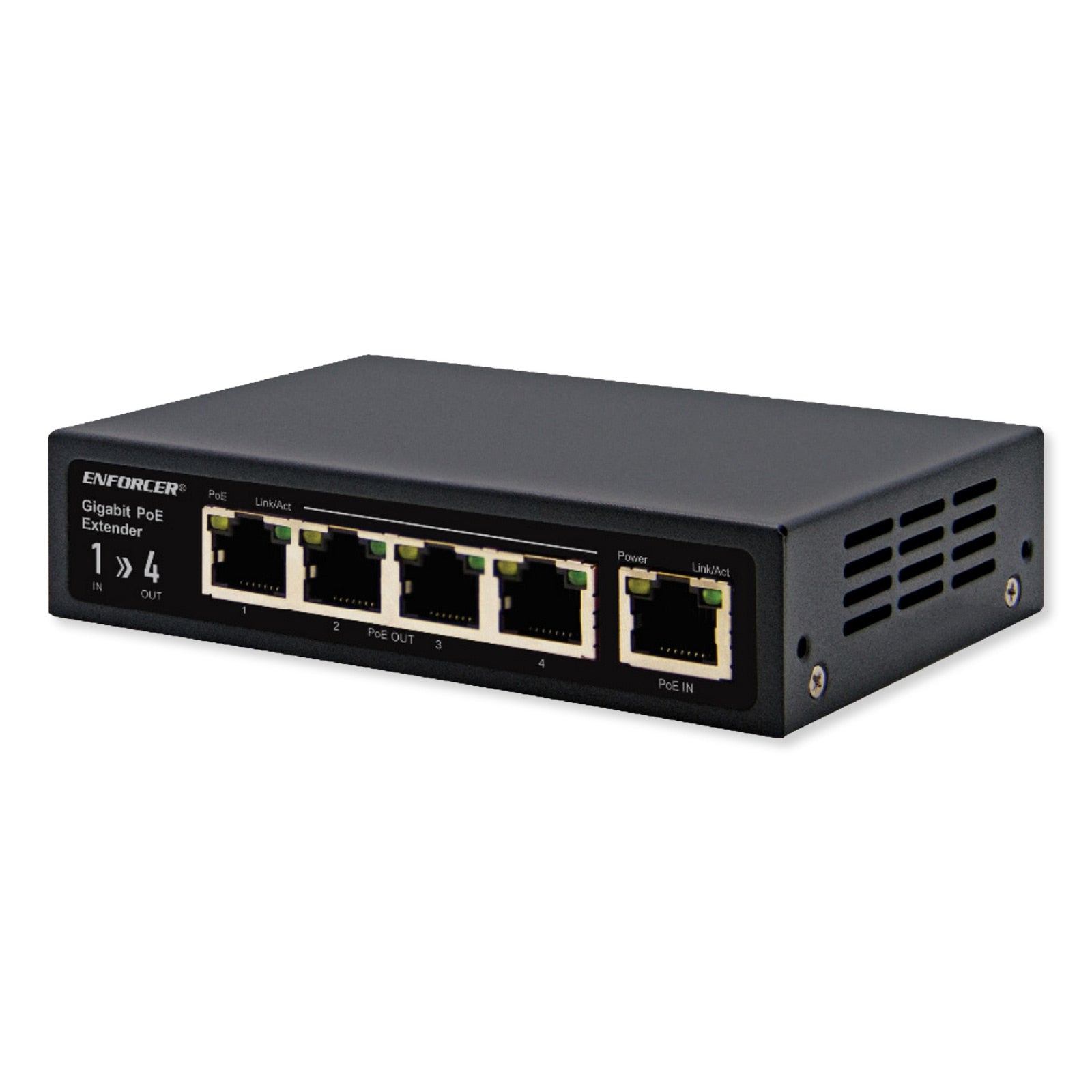

    Seco-Larm Gigabit PoE Extender, 1-Input to 4-Outputs

    Seco-Larm Gigabit PoE Extender, 1-Input to 4-Outputs

    SENRP401ETQ

    $65.95

    Notify me when this product is available:

    Install Longer Indoor PoE Cable Runs At Gigabit Speeds

    The Seco-Larm Gigabit PoE Extender, 1-Input to 4-Outputs, extends power over Ethernet (PoE) signals (up to 4 PoE devices) an additional 328 feet (100m). This Gigabit PoE extender can connect to PoE cameras, IP access control, IP speakers/intercoms, IP telephony, or other PoE devices using Cat5e or Cat6 UTP cable. You can also use an additional two extenders to increase the total range up to 984 feet (300m). This plug-and-play solution saves you money and hassle by eliminating the need to purchase additional hubs, switches, etc., and because it supports gigabit transmission speeds, your PoE devices will function and perform better than ever before.

    • Extends power and data signals (PoE) an additional 328 feet
    • Connects to Cat5e/6 cable to extend power and data of PoE devices
    • 4 Output ports for up to 4 PoE devices
    • Compliant with PoE standard IEEE 802.3af, IEE
    • Manufacturer Part #: NR-P401E-TQ
    • UPC: 676544020837
    • Connections PoE In: 1x Shielded RJ-45
    • Connections PoE Out: 4x Shielded RJ-45
    • PoE Power Input: Up to 60W
    • PoE Power Output: Up to 55W (total for 4 ports)
    • Transmission Range 1 Extender: 656ft (200m)
    • Transmission Range 2 Extenders: 984ft (300m)
    • Data Link: Both pin 1/2, 3/6 and 4/5, 7/8
    • Power Link: Pin 1/2(+), 3/6(–) up to 12W for 4 PSE, 25W for 2 PSE
    • Network Cables: Shielded Cat-5e or higher
    • Ethernet Speed: 10/100/1000 Mbps half/full duplex
    • PoE Standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 4 pairs (60W)
    • LED Indicators Power Link: Yellow
    • LED Indicators Data Link:

    »Seco-Larm Enforcer Gigabit PoE Extender Spec Sheet (.pdf)»Seco-Larm Enforcer Gigabit PoE Extender User Manual (.pdf)
