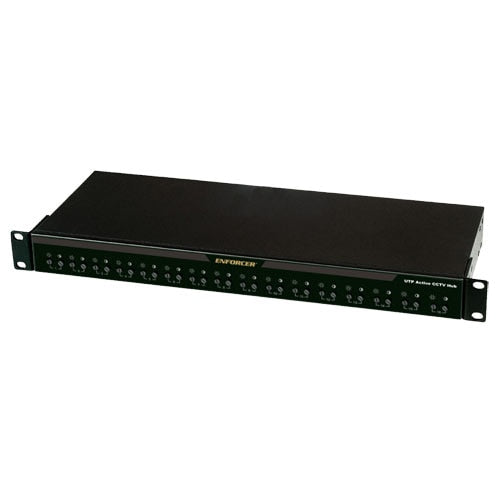

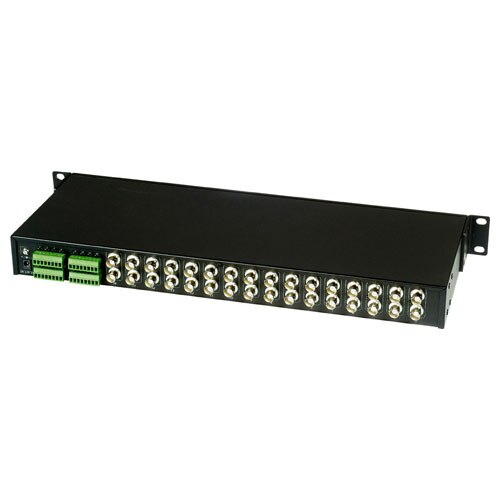

  • Seco-Larm Enforcer Active Receiver Hub, 16-Port

    SEEVTAH16VT2Q

    Notify me when this product is available:

    Interconnect Up To 16 Cameras Easily & Affordably

    The Seco-Larm Enforcer Active Receiver Hub, 16-Port allows you to interconnect up to 16 color or monochrome CCTV cameras. The hub reduces the cost and complication of security networks by eliminating the need to run expensive coaxial cable to multiple cameras.

    • Transmits color video signal up to 5,000 feet
    • Easy installation with removable terminal blocks
    • Feeds camera signals to any standard video multiplexer, switcher, or DVR
    • Built-in video surge protection and ground loop isolation
    • Status LEDs indicate video signal for each channel

    Contents

    • Rack-mount balun hub
    • 2 Cable management brackets
    • 4 M3x6 Cable bracket screws
    • 2 Mounting brackets
    • 4 Rubber feet
    • Power adapter
    • Ground wire
    • Manual

    Seco-Larm Secur

    Product Features

    • Connect camera via inexpensive CAT5e/6 unshielded twisted pair (UTP) cable.
    • Active operation amplifies video signal for high picture quality at long distances.
    • Compact 1U height fits most standard 19-inch equipment racks.
    • 16 Video inputs, 32 Video outputs (two per channel)
    • Adjustable contrast and brightness at each port.
    • Transmits color video signal up to 5,000ft (1.5km) using an active balun transmitter and 3,940ft (1.2km) using a passive balun.
    • Built-in impedance-coupled device and noise filter.
    • Cable management brackets included for flexible, organized wiring.
    • Gold-plated BNC connector.
    • Allows for rack, wall, desk, or shelf mounting.

    Technical Details

    • Video input ports: 2-wire ports on removable terminal blocks
    • Video input cables: Unshielded twisted pair
