Seco-Larm Enforcer Access Control Keypad with Backlit Keys

Indoor Keypad for Simple Access Control

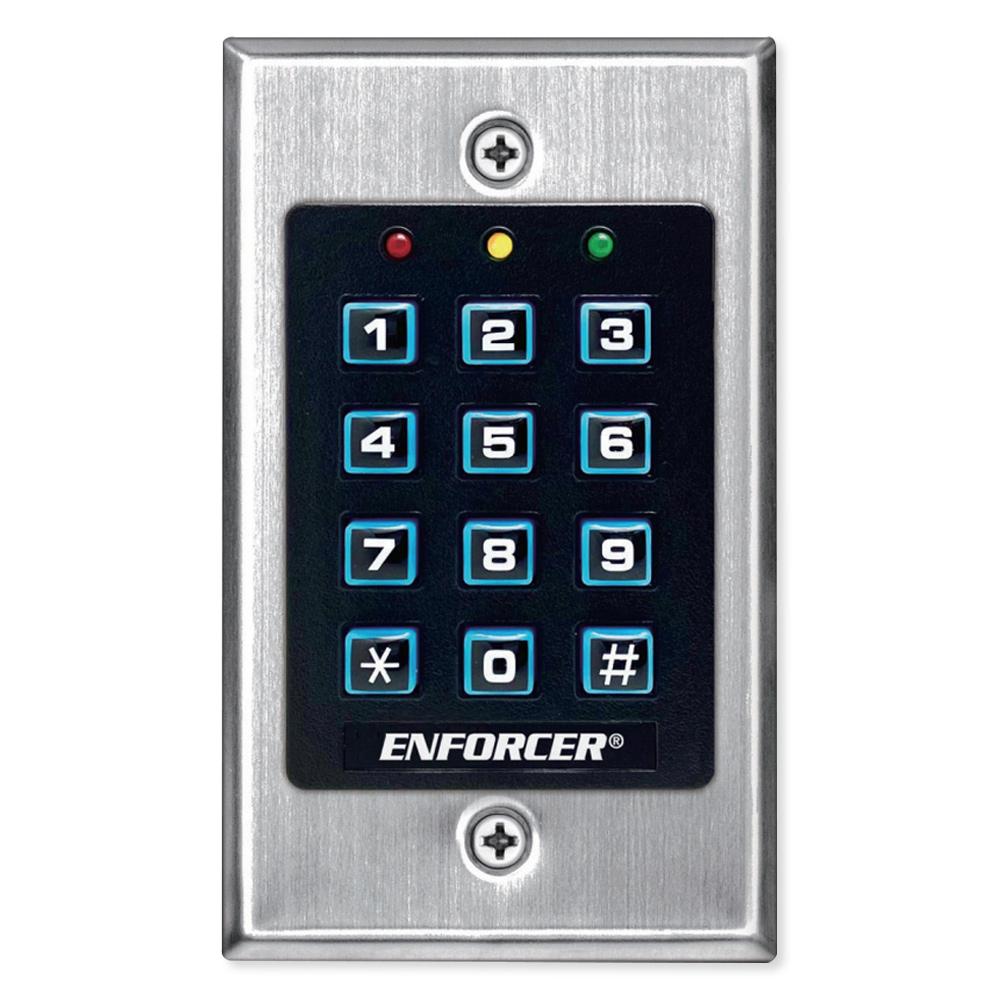

Control access to an indoor area for up to 1,000 permanent users and 50 temporary guests with the Seco-Larm Enforcer Access Control Keypad (Indoor). The 12-button, always-on backlit keypad is set in a durable stainless-steel single-gang plate. It features a real-time clock to auto-disable access at specific times, plus programmable wrong-code lockout to help prevent intrusion.

• 12-button, always-on backlit keypad with stainless-steel face
• Supports 1,000 permanent codes, 50 guest codes (4-8 digits)
• Auto-disable access at specific times with a built-in clock
• Egress input allows exit without code entry
• Auto-adjusting operation – 12~24 VDC/VAC

The keypad has a single Form C relay output (1A at 30VDC max.) that can be programmed to activate for up to 99,999 seconds (nearly 28 hours). All programming is done locally at the keypad. Both permanent user codes
