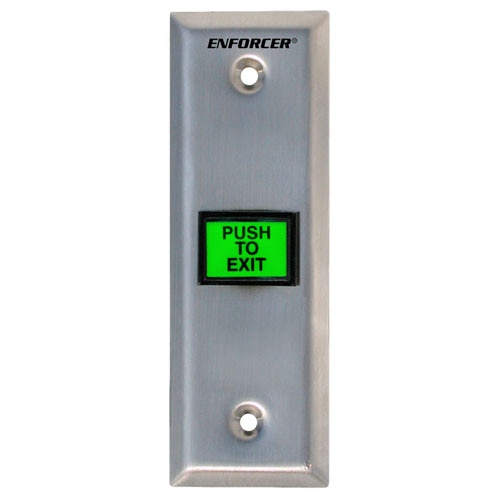

  • Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Timer

    SESD7103GCPTQ

    Slim Design For Narrow Installation

    The Seco-Larm Enforcer Slimline Push-to-Exit Plate, Illuminated with Built-In Timer Plate is illuminated with a "PUSH TO EXIT" caption that can be easily changed to "PRESIONE PARA SALIR" in the field. It includes a built-in timer that allows you to extend activation time up to 180 seconds. The slimline plate features a narrow design for easy installation on tight wall panels.

    • Built-in timer, 1 to 180 seconds with buzzer output for audio status
    • Both English and Spanish messages included
    • Long-life green LED momentary button
    • Rubber-sealed switch to prevent liquid penetration

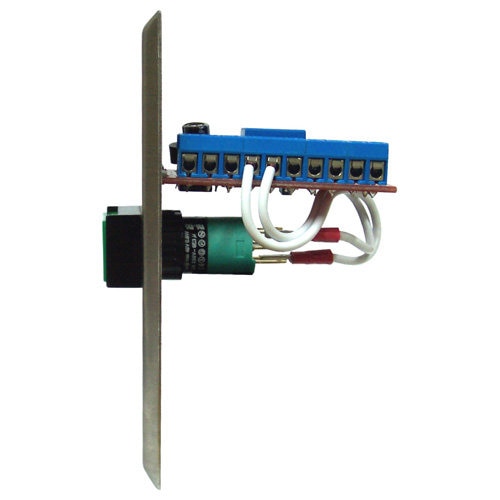

    • Plastic terminal protector for dividing individual terminals

    Contents

    • "PUSH TO EXIT" and "PRESIONE PARA SALIR" message plates
    • (6) Wire leads with easy-to-attach spade lugs for fast installation
    • Wire Leads: 12-inch, AWG 18, color-coded
    • Mechanical Lifetime: 2,000,000 operations
    • Unit Dimensions: 4-1/2 x 2-3/4 x 1-3/4 inches (114 x 70 x 45mm)
    • Button: N.O./N.C. contacts rated, DPST, 3 Amps at 24VDC
    • Button Dimensions: 15/16 x 11/16 inches
    • LED: 12/24 VAC/VDC, approx. 35,000-hour life
    • Resistor: 680 ohms, 0.5W
    • Plug-In Terminals: 6
    • CE and UL approved
