    Home / Request-To-Exit Door Systems / Seco-Larm Enforcer Piezoelectric Request-To-Exit Single-Gang Plate, Manual Override

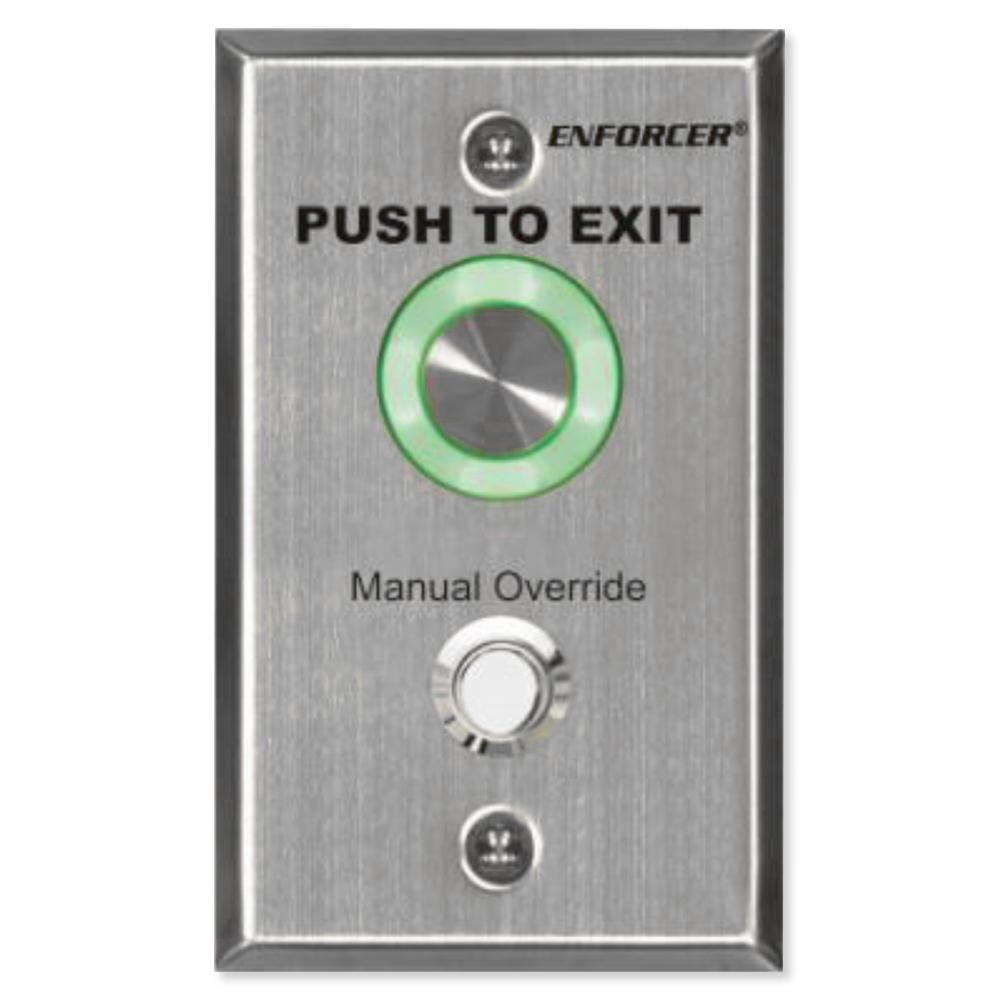

    Seco-Larm Enforcer Piezoelectric Request-To-Exit Single-Gang Plate, Manual Override

    Seco-Larm Enforcer Piezoelectric Request-To-Exit Single-Gang Plate, Manual Override

    SESD6276SSVQ

    $72.95

    Notify me when this product is available:

    Simple Wall-Mount Button For Door Opening System

    The Seco-Larm Enforcer Piezoelectric Request-to-Exit Single-Gang Plate is used with an electric door lock or opener and allows the user to request an exit with the push of a button. When the button is pressed, the door unlocks/opens and the LED ring around the button changes from green to red or from red to green (selectable). The plate's relay is rated 2A at 30VDC with two individually programmable outputs (NO/NC). The plate also includes a manual override button in case power to the piezoelectric push button fails.

    • Designed for indoor or outdoor use (IP65)
    • Manual override button in case power to piezoelectric push button fails
    • LED ring around button changes color when button is pressed (green to red or red to green, selectable)
    • No moving parts for heavy duty applications
    • Timed or toggle output

    »Seco-Larm SD-6276-SSVQ Enforcer Piezoelectric Request-to-Exit Plates Spec Sheet (.pdf)»Seco-Larm SD-6276-SSVQ Enforcer Outdoor Piezoelectric Request-to-Exit Pushbuttons Installation Manual (.pdf)
