  • Qolsys IQ Hardwire 16-F Wireless Converter

    QS7133840

    Add 2 Dozen Security Zones to Your Qolsys System

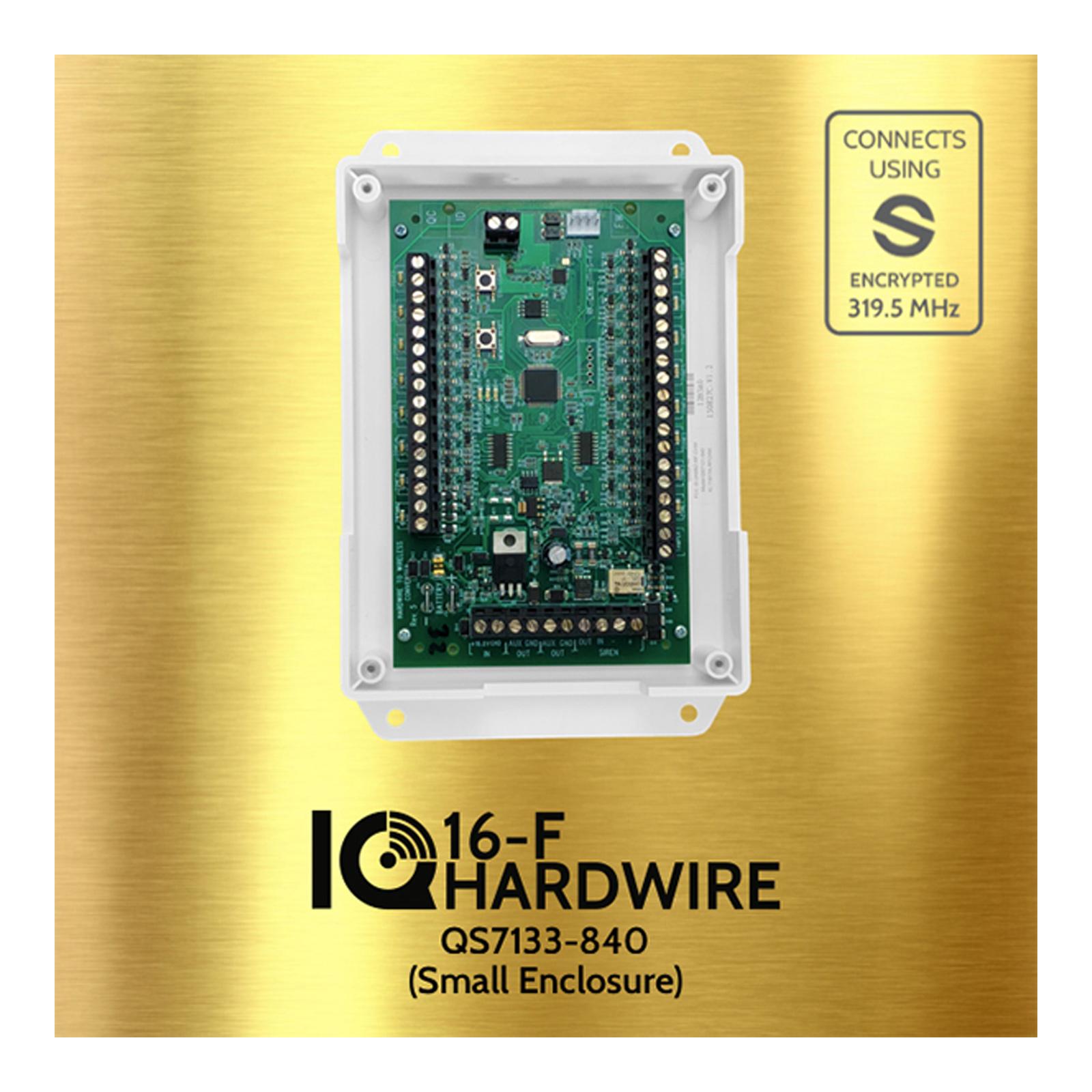

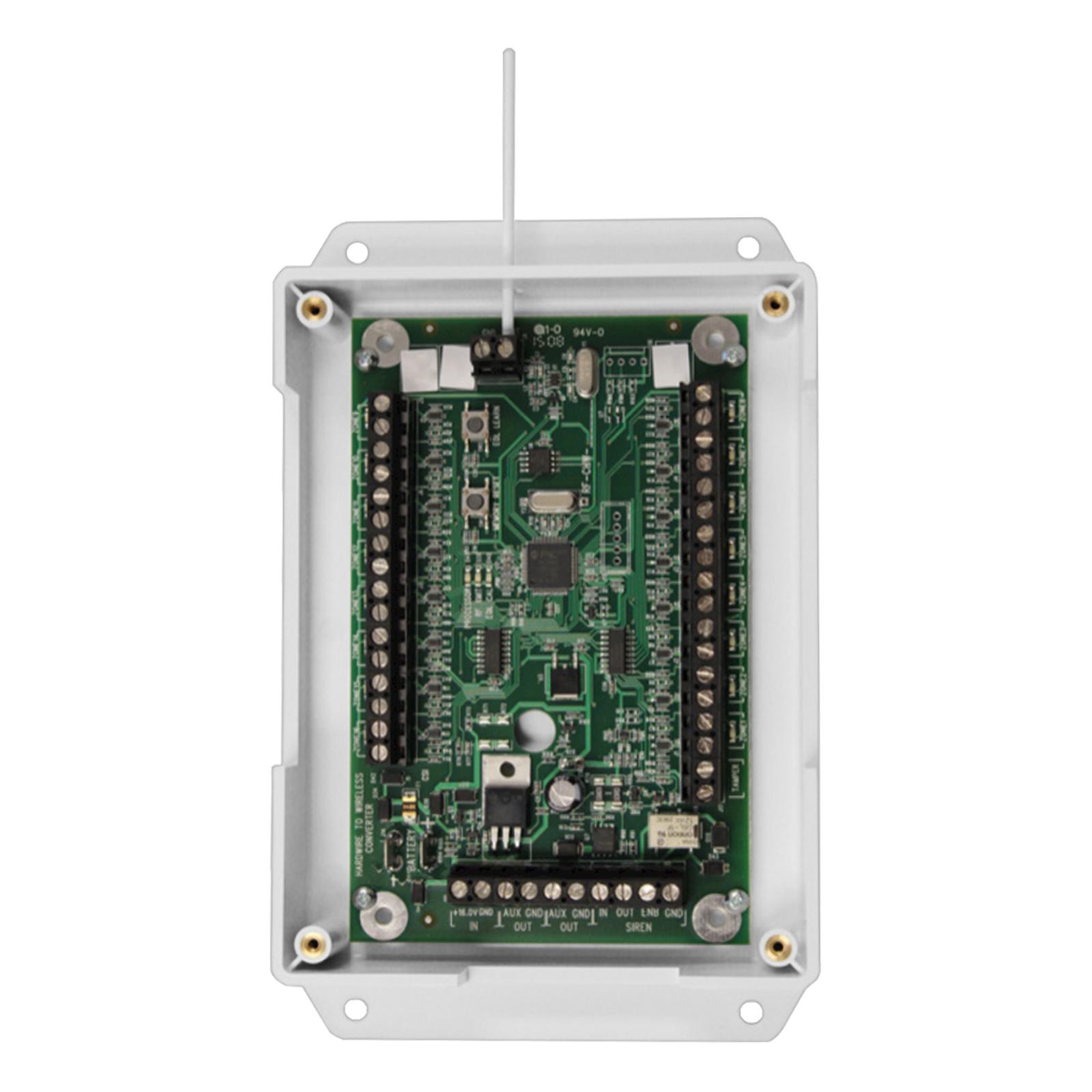

    Add hardwired security zones to your IQ Panel 2 (or 2+) with the Qolsys IQ Hardwire 16-F Wireless Converter. This security control board increases the amount of sensors and smoke detectors that can be supported in your Qolsys system. The board also provides power sources for multiple input zones, LED status lights, backup battery charging, and a siren relay.

    • Programmable security control board supports security and smoke detecting zones
    • Supports up to 10 2-wire smoke detectors and powers up to 15 input zones
    • Encrypted S-Line technology protects signals while supporting legacy 319.5 systems
    • LED lights indicate status of each individual zone
    • Up to 500 Milliamps of power for hardwired motion detectors, glass break detectors, and/or sirens
    • Charging circuit for back-up battery, fully supervised with power outage recovery

    • Manufacturer Part #: QS7133-840
    • Input Voltage: 16.0VDC Plug-In Transformer
    • Backup Battery: 12VDC 5AH Max (optional)
    • Dimensions: 5.5 H X 3.5 W inches
    • Operating Temperature: 32 to 122 degrees F (0 to 50 degrees C)
    • Humidity: 95% RH Max
    • EOL Supervision: 4.7K Ohm fixed or 1k-10k Ohm depending on Resistor Mode
    • Input Zones: 15 N/O or N/C (Normally Open/Normally Closed)
    • Smoke Zone: 1 two-wire smoke loop, 10 detectors max. Support for System Sensor@reg; 2W-B, 2WT-B, 2WTA-B*
    • Auxiliary Voltage Output: 12VDC @ 500mA Max
    • Tamper Zone: Used for case tamper, no resistor
    • Relay Contact: 60VDC/1A Max drives siren
