    Home / Pro-Grade Security Systems / Napco Gemini P9600 Security Panel, 8-96 Zones

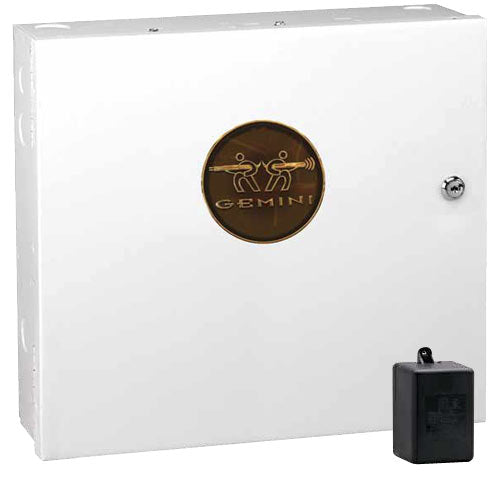

    Napco Gemini P9600 Security Panel, 8-96 Zones

    Napco Gemini P9600 Security Panel, 8-96 Zones

    NPGEMP9600

    $455.95

    8 To 96 Hardwire Zones/Points

    The Napco Gemini P9600 Security Panel, 8-96 Zones is a fierce, multi-tasking hybrid security control panel suitable for high-end security applications and home automation integration. This microcomputer-based burglary and residential fire alarm control panel supports 96 users, four RF receivers, two interior bypass groups, automatic system arming/disarming, and three relay outputs (expandable to 96).

    • Allows permanent panel connection to home automation hubs
    • Offers up to eight independent area partitions
    • Supports up to 96 users, 15 keypads, and 800 logged events
    • Compatible with GEM-ACCESS access control

    The P9600 panel offers 8 to 96 hardwired or wireless zones/points, with up to 48 RF wireless points, including eight 2-wire fire zones. Among its advanced features, the P9600 offers support for permanent panel-port connection to automation hubs using the GEM-RS232 inte

    Control Panel

    • 8 End-of-line-resistor burglary zones programmable for area, exit/entry delay, interior, follower, day zone, chime, fire option, sensor watch, swinger shutdown, zone anding and a variety of other features
    • Up to 96 zones with optional zone-expansion modules and 4-zone keypads
    • Including up to 8 2-wire fire zones
    • Up to 96 individually coded users, each with a programmable authority level
    • Exclusive RS232 panel-port supports PC home automation/ networking integration for 9600 baud comprehensive communications
    • 3 On-board relay outputs; expandable to 96
    • Three keypad panics: fire, police and auxiliary
    • Up to 8 independent area partitions
    • Up to 8 separate access stations by up to 96 users
    • Up to 64 separately-addressable X-10 devices with the GEM-X10 kit
    • English-language prompts and system status messages from choice of keypad models
    • User-customized z

    »Napco Gemini P9600 Security Control Panel Spec Sheet (.pdf)»Napco Gemini P9600 Security Control Panel Installation Manual (.pdf)
