    Home / Pro-Grade Security Systems / Napco Gemini P3200 Hybrid Security Panel, 8-32/48 Zones

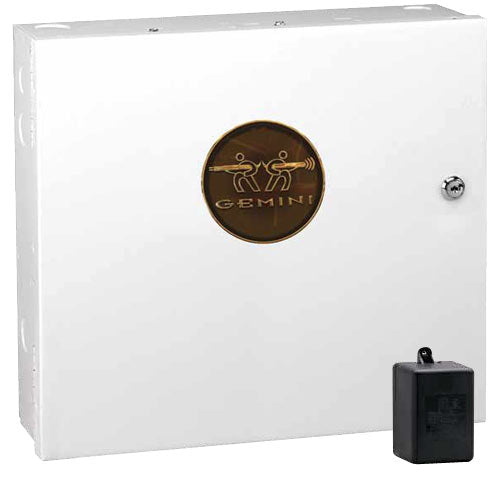

    Napco Gemini P3200 Hybrid Security Panel, 8-32/48 Zones

    Napco Gemini P3200 Hybrid Security Panel, 8-32/48 Zones

    NPGEMP3200

    $235.95

    Notify me when this product is available:

    Schedule Up To 255 Events

    The Napco Gemini P3200 Hybrid Security Panel, 8-32/48 Zones is an 8-zone hybrid control panel that can be expanded to 32 zones or 48 RF wireless points. This microcomputer-based burglary and residential fire alarm control panel features a built-in scheduler that allows you to program up to 255 scheduled events. The P3200 also offers an onboard programmable lug and GEM-ACCESS access control compatibility, allowing versatile use in most residential and commercial applications.

    • 8 to 32 hardwired or wireless zones/points; up to 48 RF wireless points
    • Allows you to program up to 255 scheduled events
    • Supports up to 48 users, 7 keypads, and 800 logged events
    • Compatible with GEM-ACCESS access control

    With EZ programming, users can easily set up the system through a keypad. The panel also includes support for two RF receivers, an interior bypass group, automatic system arming/disa

    Product Features

    Control Panel

    • 8 End-of-line-resistor burglary zones programmable for area, exit/entry delay, interior, follower, day zone, chime, fire options, sensor watch, swinger shutdown, zone anding and a variety of other features
    • Up to 48 points of up to 32 zones with optional zone-expansion modules 4- zone keypad EZMs (built-in)
    • Including up to 2 2-wire fire zones
    • Up to 32 individually coded users, each with a programmable authority level
    • 3 on-board relay outputs, expandable 24 external relay outputs
    • 3 keypad panics: fire, police and auxiliary
    • 2 independent area partitions
    • Up to 7 separate access stations by up to 32 users
    • Up to 24 separately-addressable X-10 devices with the GEM-X10KIT
    • English-language prompts and system status messages from choice of keypad (8) models
    • User-customized zone descriptions, reprogrammable as required<

    »Napco Gemini P3200 Control Panel Spec Sheet (.pdf)»Napco Gemini P3200 Control Panel Installation Manual (.pdf)»Napco Gemini P3200 Control Panel Programming Instructions (.pdf)
