    Napco Gemini P1664 Security System Kit with GEM-K1VPS Talking Keypad

    Napco Gemini P1664 Security System Kit with GEM-K1VPS Talking Keypad

    NPGEMP1664VPSPK

    $334.95

    Start Building Your Napco Gemini Security System

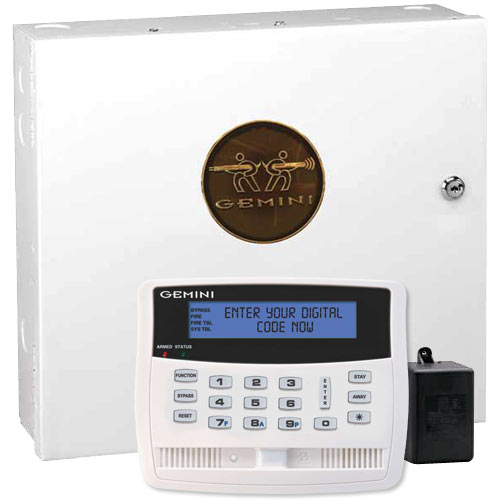

    The Napco Gemini P1664 Security System Kit with GEM-K1VPS Talking Keypad includes the P1664 control panel in an enclosure, a talking keypad with built-in expansion, and the required power supply. Together, these components provide a solid starter kit for your new Napco Gemini security system.

    • Supports up to 64 users, 7 keypads, and 400 logged events
    • Supports 8 hybrid (wired/wireless) zones and 16 EOL zones
    • Intuitive setup via EZ programming at keypad
    • Fire, police and auxiliary programmable panic keys

    Advanced Gemini Security Control Panel

    The P1664 Security Panel offers a strong foundation for a Napco security system, with programmable partitioning for up to four different locations, as well as support for up to 64 EOL zones. This control panel also accommodates two Napco helically-filtered, crystal-control RF receivers and w

    Product Features

    Control Panel

    • 8 Hardwire/Wireless Zones on board
    • Up to 64 zones with multiplex expansion including two 2-wire fire zones
    • With multiplexing, can accommodate up to 64 EOL zones (from custom alpha keypads or multiplex modules)
    • EZ Programming2 – More comprehensive, menu-driven programming for all zones plus test timer.
    • Three on-board relay outputs, up to 16 external relay outputs (RM3008s).
    • Up to two Napco helically-filtered, crystal-control RF receivers
    • Interior bypass group with programmable automatic interior bypass
    • Uses up to 7 of any of the Classic/RP-, K-Series or DK-Door Style Stay and Away keypads
    • Programmable telephone line cut supervision with delay
    • Three keypad panics (F, P, A)
    • Supports all major communicator formats, including: 4/2, SIA, 4+2 and Point ID, plus pager
    • Backup/double/split reporting; thre

    »Napco Gemini GEM-P1664 Security Panel Specificaitons (.pdf)»Napco Gemini GEM-P1664 Security Panel Installation Manual (.pdf)»Napco Gemini GEM-P1664 Security Panel Programming Instructions (.pdf)»Napco Gemini GEM-K1VPS Talking Keypad Installation Manual (.pdf)»Napco G
