    Home / Pro-Grade Security Systems / Napco Gemini P1664 Security Panel, 8-64 Zones

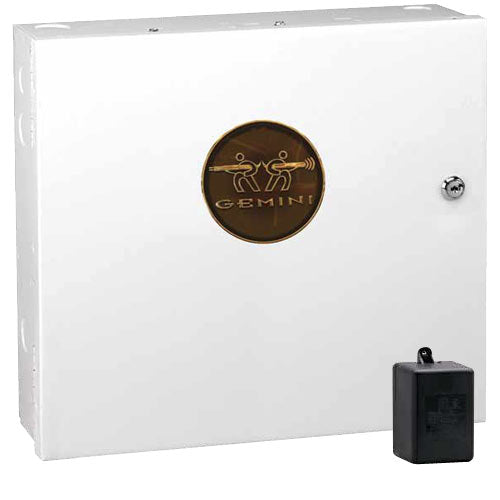

    Napco Gemini P1664 Security Panel, 8-64 Zones

    Napco Gemini P1664 Security Panel, 8-64 Zones

    NPGEMP1664

    $159.95

    Notify me when this product is available:

    Security Control Panel With Multiplexing & 4 Areas

    The Napco Gemini P1664 Security Panel, 8-64 Zones provides a comprehensive foundation for a Napco security system with advanced functionality for complete customization. The panel features programmable partitioning for up to four separate areas, in addition to support for up to 64 EOL zones via multiplexing. It also accommodates two Napco helically-filtered, crystal-control RF receivers and works with all Gemini crystal-control devices.

    • Up to 64 zones with multiplex expansion
    • Control four independent areas with programmable partitioning
    • Supports up to 64 users, 7 keypads, and 400 logged events
    • Intuitive setup via Self-Programming Plus at keypad (sold separately)

    With multiplexing, the P1664 control panel can accommodate up to 64 EOL zones from custom alpha keypads or multiplex modules (sold separately). Eight EOL burglary zones are programmable f

    Product Features

    • 8 Hardwire/Wireless Zones on board
    • Up to 64 zones with multiplex expansion including two 2-wire fire zones
    • With multiplexing, can accommodate up to 64 EOL zones (from custom alpha keypads or multiplex modules)
    • EZ Programming2 – More comprehensive, menu-driven programming for all zones plus test timer.
    • Three on-board relay outputs, up to 16 external relay outputs (RM3008s).
    • Up to two Napco helically-filtered, crystal-control RF receivers
    • Interior bypass group with programmable automatic interior bypass
    • Uses up to 7 of any of the Classic/RP-, K-Series or DK-Door Style Stay and Away keypads
    • Programmable telephone line cut supervision with delay
    • Three keypad panics (F, P, A)
    • Supports all major communicator formats, including: 4/2, SIA, 4+2 and Point ID, plus pager
    • Backup/double/split reporting; three 20-digit telephone numbers

    »Napco Gemini GEM-P1664 Security Panel Specificaitons (.pdf)»Napco Gemini GEM-P1664 Security Panel Installation Manual (.pdf)»Napco Gemini GEM-P1664 Security Panel Programming Instructions (.pdf)
