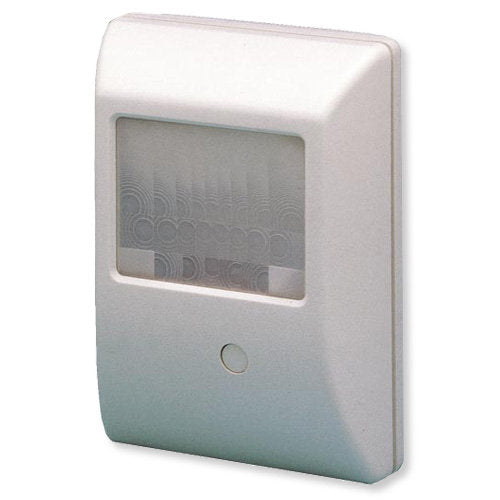

    Linear DXS Supervised PIR Motion Detector Transmitter

    Linear DXS Supervised PIR Motion Detector Transmitter

    LNDXS54

    $93.90

    Notify me when this product is available:

    Features DXS Wireless Technology

    The DXS-54 Supervised Passive Infrared Motion Detector Transmitter can be used in a variety of motion detection applications for home security. When the passive infrared (PIR) sensor detects motion in its field of view, the DXS transmitter sends a digitally coded signal to a security receiver or security control panel, alerting you of a possible intruder.

    The transmitter is a battery powered passive infrared motion detector with a built-in transmitter designed for use with Linear’s DXS and DX receivers. The DXS can send three different signals: alarm, low battery and status. The DX code format features more than one million possible codes. Each transmitter is precoded at the factory to a unique code so no field coding is required.

    In a typical installation, the motion detector is mounted indoors in a corner or on a wall between six and eight feet high. The sensor monitors the infrared level i

    For setup and testing, pressing the detector’s test button places the unit in walk test mode for four minutes. The installer can walk in front of the unit while viewing the red test indicator through the detector’s lens to determine the detection area.

    In walk test, an alarm signal is sent each time the walk test indicator lights. During normal operation, the detector requires a pulse count of three events in eight seconds before sending an alarm transmission.

    • Power: one 9V alkaline battery (supplied)
    • Current Consumption: 15 mA transmitting, 4 mA walk test, 8 µA standby, 15 µA timer mode
    • Battery Life: Three years (typical)
    • Battery Saver Timer: 4-minute software timer, rearms after alarm transmission
    • Measured Range: 1,500 feet open air, with DVS 2400 control panel
    • Accessories: Mounting hardware, includin

    »Linear DXS-54 Supervised PIR Motion Detector Transmitter Installation Manual (.pdf)
