    Home / Pro-Grade Security Systems / Linear Power Supply in Enclosure, 2A, 4 Output, 12VDC/24VDC

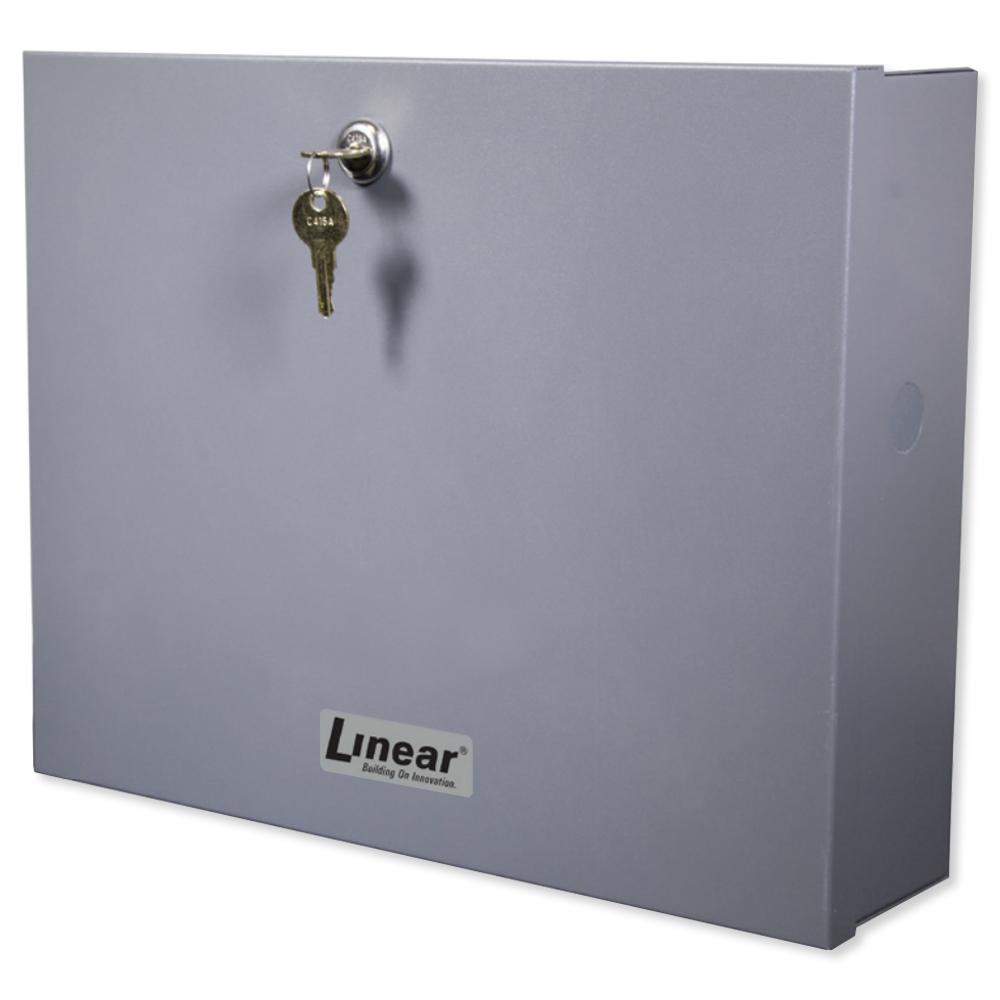

    Linear Power Supply in Enclosure, 2A, 4 Output, 12VDC/24VDC

    Linear Power Supply in Enclosure, 2A, 4 Output, 12VDC/24VDC

    LNPS124D02A4

    $255.95

    Notify me when this product is available:

    Fast Installation & Protected Power

    The Linear Power Supply in Enclosure (2A, 4 Output, 12VDC/24VDC) supplies 12VDC and 24VDC output for alarm, emergency fire release, and battery charging applications. This complete power kit can deliver 12V or 24V at 2 Amps to four (4) aux outputs and two (2) access controller outputs, housed in a metal cabinet enclosure. The cabinet is large enough to house an additional power distribution module (sold separately) to add 4 more outputs to the power supply.

    • Ideal for alarm, emergency fire release, or battery charging applications
    • Provides 4 selectable outputs – select 12V or 24V
    • Auto-reset Positive Temperature Coefficient (PTC) removes need to replace fuses
    • Integrated battery charging output up to 2 Amps (battery not included)
    • LEDs indicate Output Voltage, AC Power Failure, Fire Release, and Battery Status
    • Fire release input enables connected access c
    • Manufacturer Part #: PS124D-02A4
    • Input Voltage: 3, 13.5, or 24 VDC
    • Output Amperage: 2 Amps
    • Number of Outputs: 6
    • Lock – Aux: 4; Selectable 12 or 24 VDC per each output – auto resetting function
    • Panel Power: 2 – 12 VDC – Non fused
    • Battery Charging: 1=13.5 VDC Batteries Charge up to 2–12 VDC 7 AMP
    • Fire Alarm Input: Yes
    • LED Indicators: Battery, Fire Release Status, Low Battery, Output voltage (12 or 24 VDC) per individual output/ output power
    • Add-on Board Option: Yes – Mounting space in housing to add 1 additional power module. Amperage output remains the same: 2 Amps total
    • Approvals: UL 294, ROHS, DOE, Level 6 Efficiency

    »Linear PS124D E-Series Power Supply Brochure (.pdf)»Linear PS124D E-Series Power Supply Spec Sheet (.pdf)
