  • 2GIG Wireless Recessed Door Contact

    LN2GIGDW20R345

    Notify me when this product is available:

    Hides Inside the Door Frame

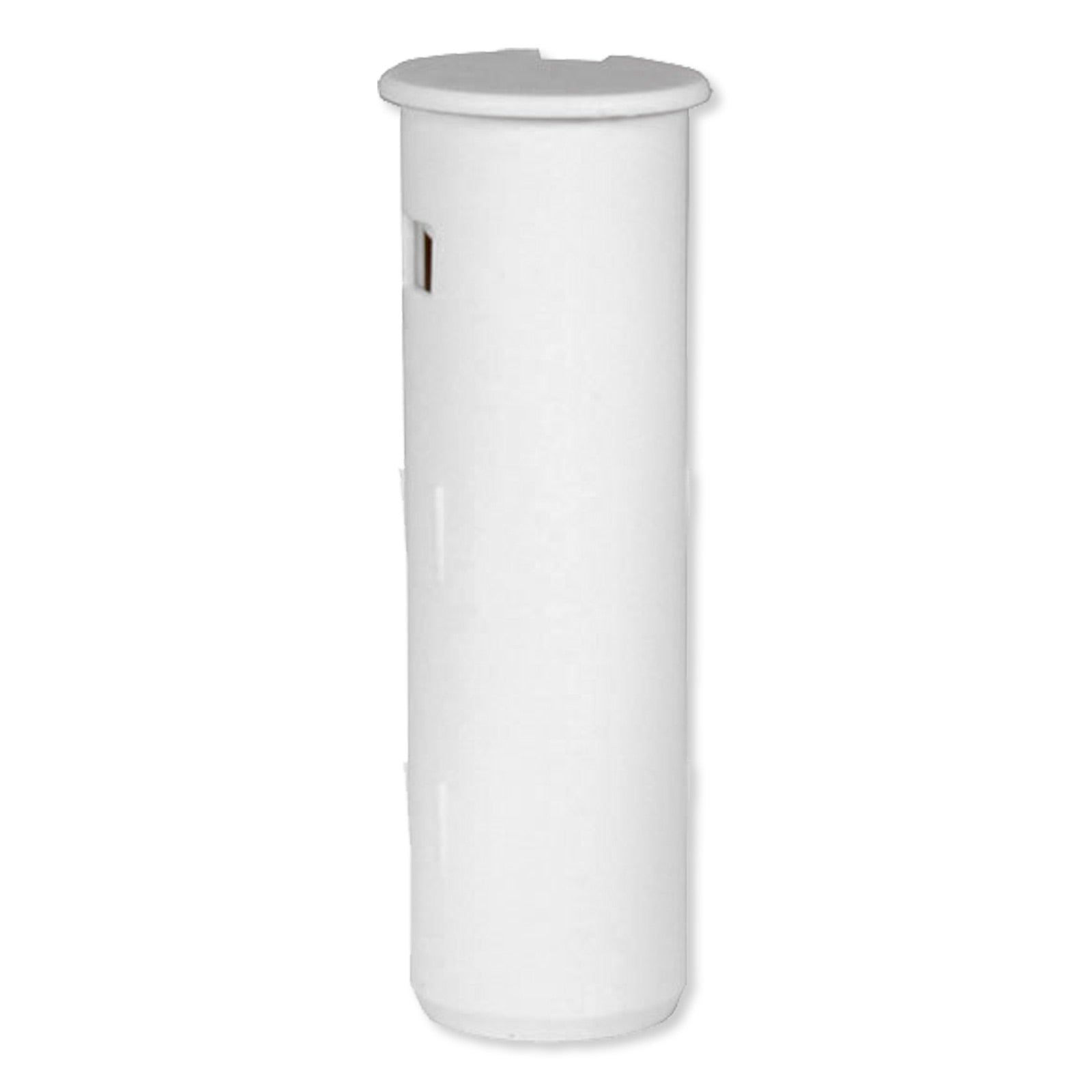

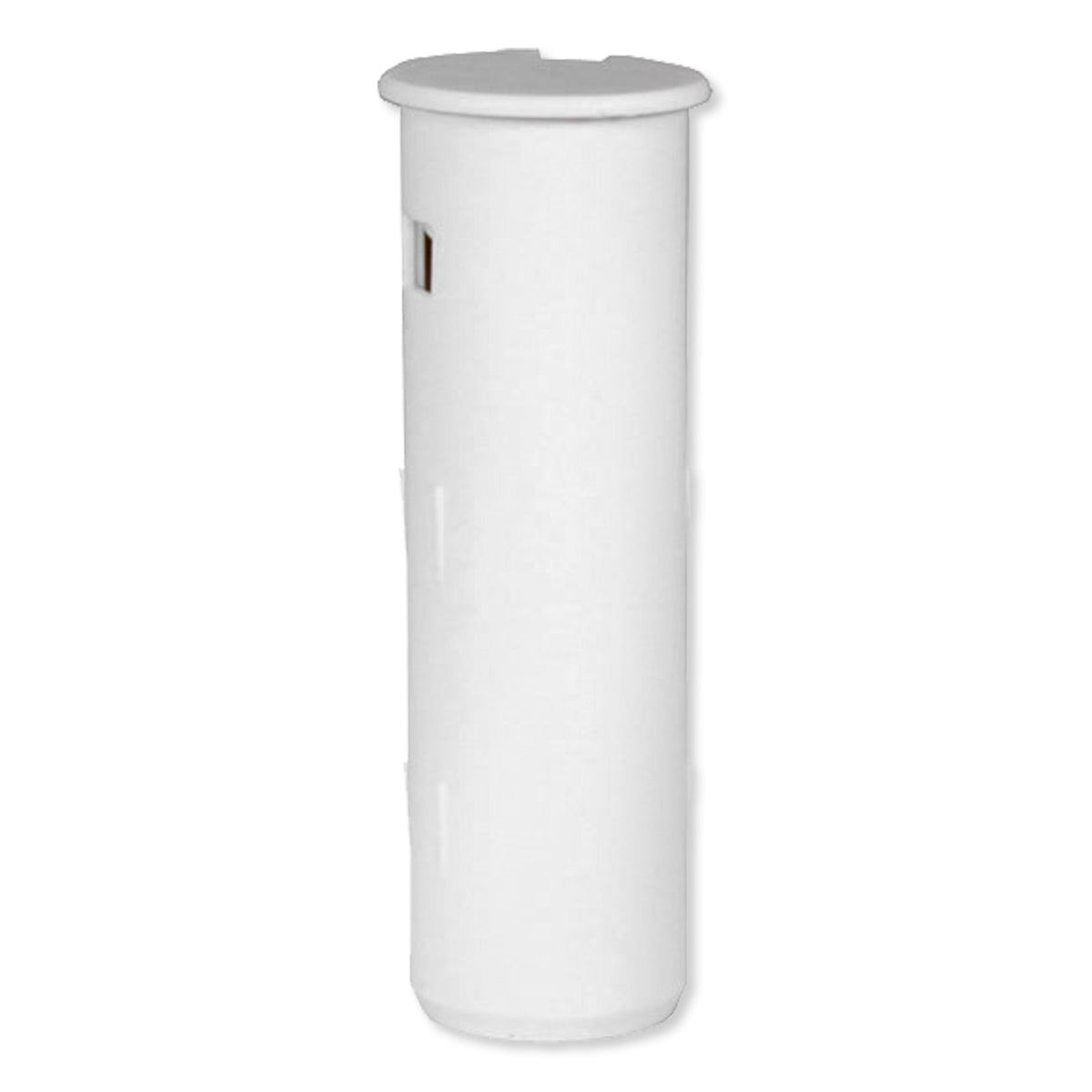

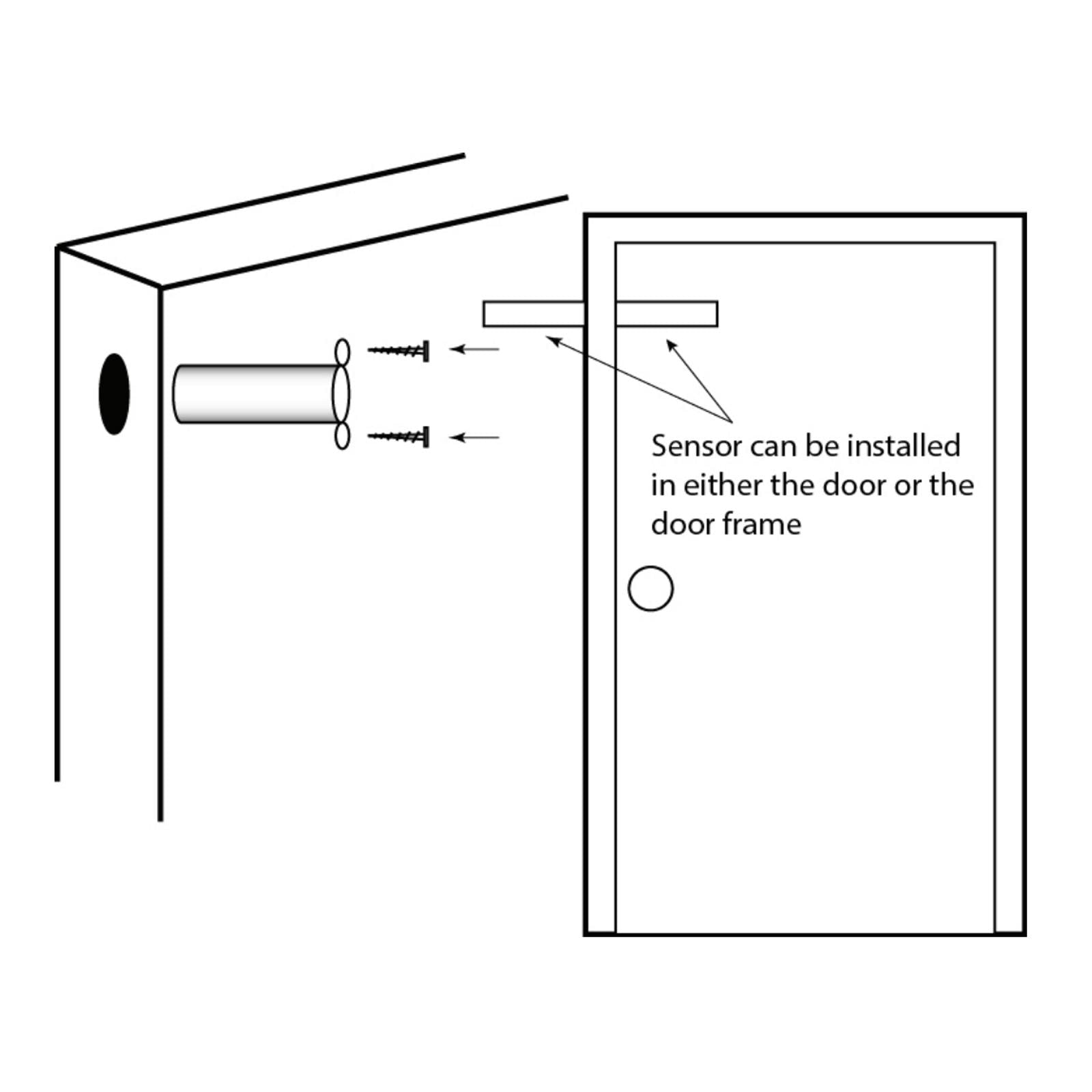

    No one will know the door is being monitoring when you use the 2GIG Wireless Recessed Door Contact. The compact sensor installs within the frame of your door and becomes hidden from view when the door is closed.

    • Monitors open/close status of a door
    • Hidden from view upon installation
    • Easy to install with included screws
    • Works with 2GIG wireless systems (345 MHz)

    The wireless, battery-powered sensor works with the 2GIG GoControl panel or Vario wireless receiver. It consists of two components: the main sensor, which mounts inside the door frame, and the smaller magnet, which mounts to the door itself. When the two parts are separated, the sensor signals the control panel to trigger an alarm.

    Contents

    • Door Contact
    • Magnet
    • (2) Screws
    • (2) Magnet Caps
    • Instruction Manual

    Note: Requi

    • Manufacturer Part #: 2GIG-DW20R-345
    • Wireless Signal Range: 450 feet, open air, with 2GIG Wireless Control Panel
    • Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery
    • Transmitter Frequency: 345.000 MHz (crystal controlled)
    • Transmitter Frequency Tolerance: ±15kHz
    • Transmitter Bandwidth: 24kHz
    • Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
    • Unique ID Codes: Over one million different code combinations
    • Supervisory Interval: 70 minutes
    • Peak Field Strength: Typical 50,000 uV/m at 3m
    • External Input Sampling Current: 20 uA
    • External Input: Accepts N/C dry contact devices
    • Reed Switch Magnetic Sensitivity: 10 to 20 amp turns
    • Reed Sen
