    Home / Optex / Optex iSeries Wireless High Mount Outdoor PIR Motion Detector, with Inovonics, 80 Ft.

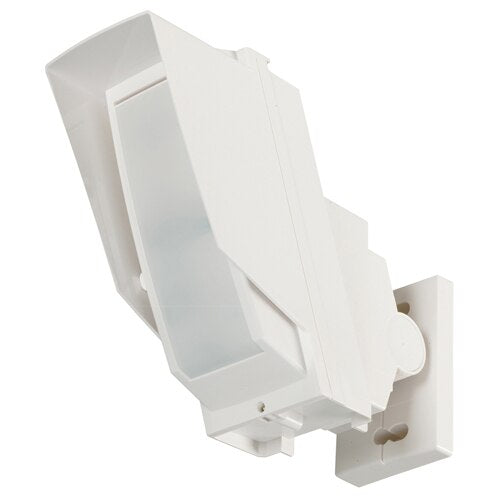

    Optex iSeries Wireless High Mount Outdoor PIR Motion Detector, with Inovonics, 80 Ft.

    Optex iSeries Wireless High Mount Outdoor PIR Motion Detector, with Inovonics, 80 Ft.

    $268.75

    Notify me when this product is available:

    DEALER ONLY ITEM: Not Available Directly to End Users.

    Dealers, log on to see pricing. »Sign up to become an authorized installer.

    Outdoor Motion Detector With Pyro-Elements

    Designed to reduce the change of both false alarms and missed alarms, the Optex iSeries Wireless High Mount Outdoor PIR Motion Detector (with Inovonics, 80 Ft.) offers enhanced detection accuracy for outdoor applications. It's perfect for harsh environments where rain, fog, etc. threaten to disrupt standard motion detection devices. This model detects

    • Manufacturer Part #: HX-80NRAMi
    • Detection Method: Passive infrared
    • PIR Coverage: 80 x 6.6 feet (24 x 2 m) narrow / 20 zones
    • PIR Distance Limit: 22 feet, 33 feet, 42 feet, 59 feet (6.5 m, 10.0 m, 13.0 m, 18.0 m)
    • Detectable Speed: 1 foot/second to 4.9 feet/second (0.3 m/s to 1.5 m/s)
    • Sensitivity: 3.6° F (2.0° C) at 0.6 m/s
    • Power Input: 3 – 7.2 V DC Lithium Battery (CR123A x 3, CR2 x 3, 1/2AA x 3, 1/2AA x 6)
    • Operating Voltage: 2.5 – 9 V DC
    • Current Draw: 30µA (standby) / 4 mA (max.) at 3VDC
    • Alarm Period: 2.0 ±1 second
    • Warm-Up Period: Approx. 90 seconds (LED blinks)
    • Alarm Output: Form C -Solid State Switch- 10 V DC 0.01 A max.
    • Trouble Output:

    »Optex HX-80N iSeries Wireless High Mount Outdoor PIR Motion Detector Literature (.pdf)»Optex HX-80NRAM iSeries Wireless High Mount Outdoor PIR Motion Detector Installation Instructions (.pdf)»Optex HX-80NRAMi iSeries Wireless High Mount Outdoor PIR Motion Detector Wiring Guide (.pdf)
