    Home / Optex / Optex iSeries Wireless High Mount Outdoor PIR Motion Detector, with Inovonics, 40 Ft.

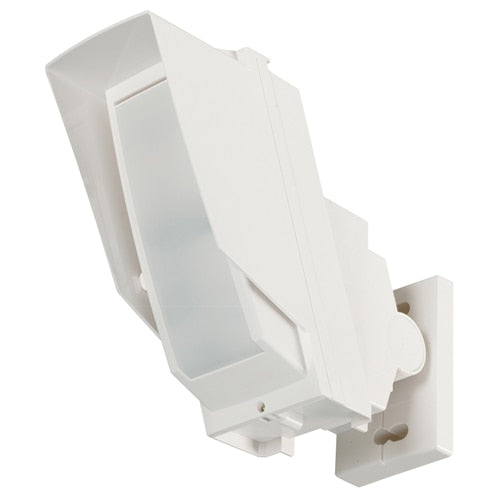

    Optex iSeries Wireless High Mount Outdoor PIR Motion Detector, with Inovonics, 40 Ft.

    Optex iSeries Wireless High Mount Outdoor PIR Motion Detector, with Inovonics, 40 Ft.

    $218.88

    Notify me when this product is available:

    DEALER ONLY ITEM: Not Available Directly to End Users.

    Dealers, log on to see pricing. »Sign up to become an authorized installer.

    Outdoor Motion Detector With Pyro-Elements

    Optex designed these HX series motion detectors to outperform standard outdoor sensors in both false alarm and missed alarm reduction. With superior detection accuracy and an outdoor design, the Wireless High Mount Outdoor PIR Motion Detector is perfect for high-end applications where severe environmental changes require enhanced performance.

    • Id
    • Detection Method: Passive infrared
    • Anti-Masking: Yes
    • PIR Coverage: 40 feet (12m), 85° wide, 94 zones
    • PIR Distance Limit: 13' 1", 18' 1", 29' 6" (4m, 5.5m, 9m)
    • Detectable Speed: 1 foot to 14 feet 1 inch per second (0.33 to 1.5 m/s)
    • Sensitivity: 3.6° F (2° C) at 0.6 m/s
    • Power Input: 3 to 7.2VDC Lithium battery (CR123 x 3, CR2 x 3, 1/2AA x 3, 1/2AA x 6)
    • Operating Voltage: 2.5 to 9VDC
    • Current Draw: 30 uA (standby), 4mA (max) at 3VDC
    • Alarm Period: 2 ± 1 second
    • Warm-Up Period: approx. 90 seconds (LED blinks)
    • Alarm Output: Form C – Solid State Switch – 10 VDC 0.01A max
    • Tamper Output: Form C 28 VDC, 0.1A max. Activ

    »Optex HX40RAMI High Mount Outdoor Detector Specifications (.pdf)»Optex HX40/40AM High Mount Outdoor Detector Quick Guide (.pdf)»Optex HX-40RAMI High Mount Outdoor Detector Installation Manual (.pdf)
