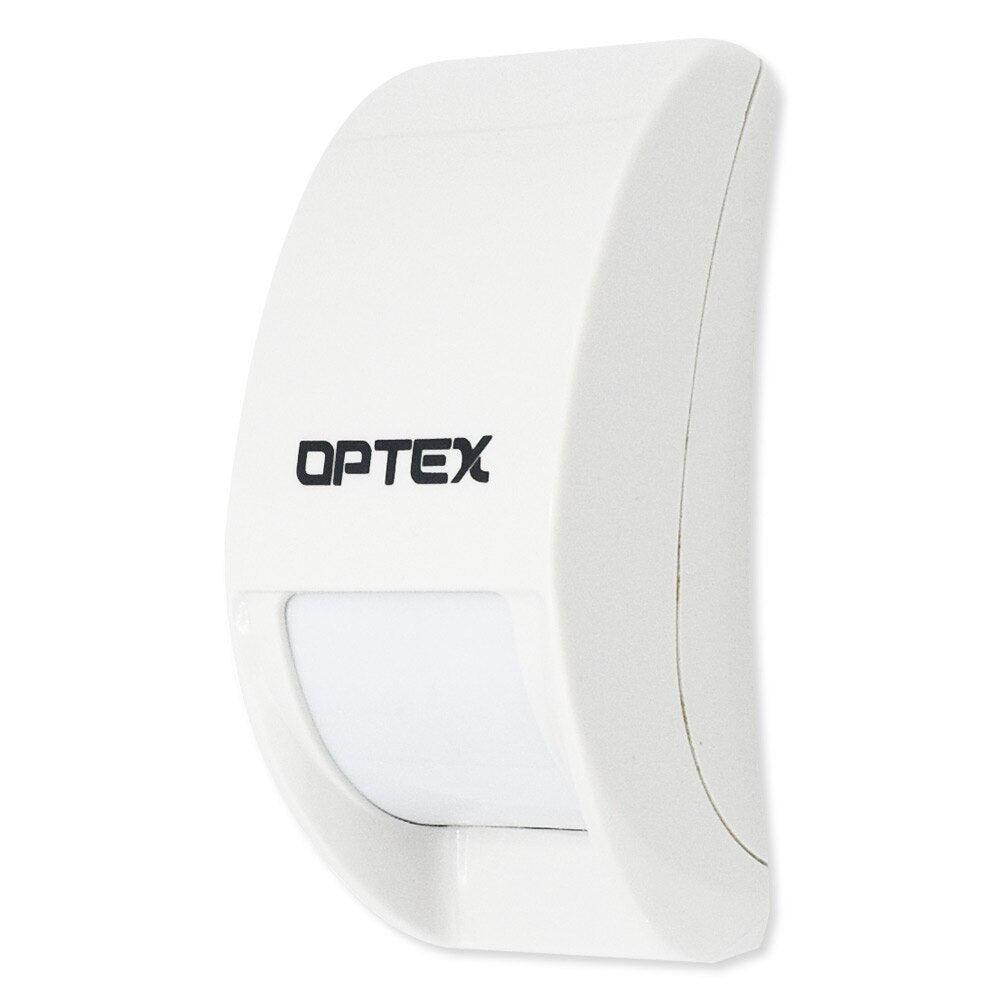

    Optex Indoor Curtain PIR Detector

    Optex Indoor Curtain PIR Detector

    $66.95

    Notify me when this product is available:

    Reliable Detection Coverage With A Compact Design

    The Optex Indoor Curtain PIR Detector is perfect for providing enhanced motion detection of hallways, small entryways, large storefront windows, and long narrow areas of both homes and businesses alike. This indoor curtain detector features Double Conductive Shielding Technology, uniform sensitivity for stable performance, and a detection range of 20 feet with a mounting height of 8 feet to 12 feet.

    • Ideal indoor PIR detection of large storefront windows, hallways, small entryways, and other long narrow areas
    • 20 feet detection range with 8 feet to 12 feet mounting height
    • Double Conductive Shielding Technology
    • Modern, compact build with Fresnel lens design
    • Easy to install on a wall or ceiling

    The Optex Indoor Curtain PIR Detector is designed with Optex's Double Conductive Shielding Technology. This helps to reduce false alarms due to it

    • Manufacturer Part #: AP2-20N
    • Detection Method: Passive Infrared
    • PIR Coverage: 20ft x 3.3ft – mounting height at 12ft (6m x 1m – mounting height at 3.6m)
    • Mounting: Wall and ceiling
    • Mounting Height: 8ft – 12ft (2.4m – 3.6m)
    • Zone Width: 3.3ft max – mounting height at 12ft (1m max – mounting height at 3.6m)
    • Sensitivity: 35.6°F at 2ft/s (2°C at 0.6m/s)
    • Detectable Speed: 1ft – 10ft/s (0.3m – 3m/s)
    • LED Indicator: Switchable ON/OFF
    • Sensitivity Adjustment: H/L
    • Alarm Output: Approx. 2.5 sec, N.C., 28V DC, 200mA max
    • Tamper Switch: N.C., opens when cover is removed. N.C. 28V DC, 100mA (max)
    • Warm-up Period: Approx. 60 sec.

    »Optex AP2-20N Indoor Curtain PIR Detector Spec Sheet (.pdf)»Optex AP2-20N Passive Infrared Detector Installation Manual (.pdf)
