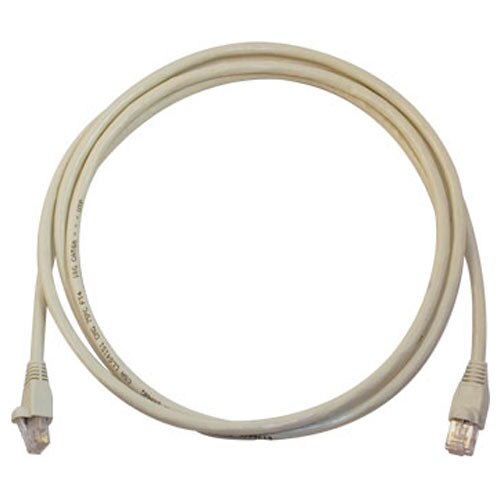

  • On-Q/Legrand Cat6a Patch Cable

    OQAC6A01GYV1

    Size

    Notify me when this product is available:

    Snagless For Use In High Density Applications

    Designed to fully support 10 Gigabit Ethernet speeds up to 100 meters, this 500MHz Cat6a Patch Cable exceeds 750 insertion cycles and meets Cat6a performance patch cable specifications. The cable also features a low profile with a snagless overmold to prevent the insertion tab from catching onto nearby cables.

    Start With A Strong Foundation

    From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

    Technical Details

    • Manufacturer Part #: AC6xx7-GY-V1
    • Color: Gray
    • Pair Count: 4
    • Termination: 8P8C, contact area plated 50 microinches hard gold over 100 microinches of nickel
    • Type: Cat 6a Patch Cable
    • Housing Material: Flame-Retardant Polycarbonate
    • Input Plug Type: RJ45 Male
    • Flammability Rating: UL 94V-0
    • Humidity: Maximum non-condensing 93 percent
    • Material: Fire retardant PVC compound jacket with high density polyethylene insulation material
    • Operating Temperature: 14 to 140 degrees F (-10 to 60 degrees C)
    • Storage Temperature: -40 to 70 degrees C
    • Wire Gauge: 26 AWG
    • Diameter: 0.25 inches (6.4 mm)
