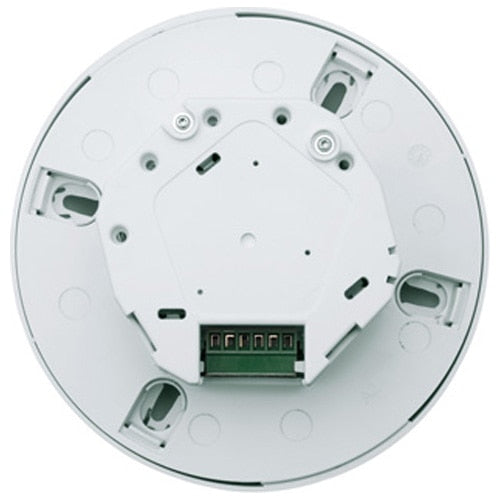

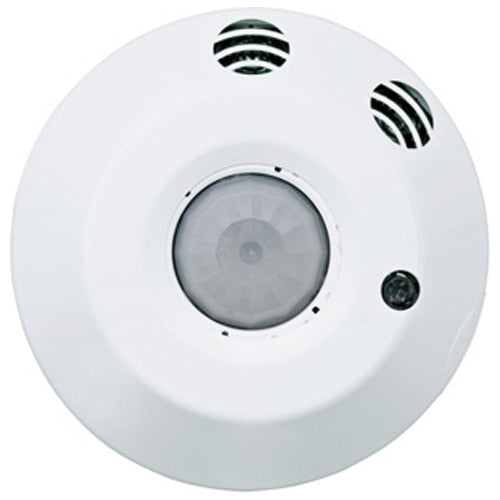

  • Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor

    LVODC05MDW

    Size

    Notify me when this product is available:

    Automatic Lighting With Daylight Harvesting

    Automate your lighting without risking wasted energy by using the Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor. When lights turn ON/OFF according to motion detection, they are sometimes left on for too long due to false detections. This sensor's multi-technology motion detection overcomes that challenge with advanced false alarm immunity.

    • Motion detection turns lights ON
    • Lights turn OFF when room is vacant
    • Advanced false alarm immunity
    • Presentation Mode provides manual control
    • Daylight harvesting capabilities
    • Suitable for new construction or retrofit

    Available Detection Ranges (Sq. Ft.): 500, 1,000, 2,000

    Leviton's series of ODC occupancy sensors feature daylight harvesting capabilities to help you further reduce energy consumption. When daylight harvesting is integrated into your lighting

    Product Features

    • Test Mode for simplified commissioning
    • Manual Switch and Emergency Override are Class 1 or Class 2 circuits
    • Output short circuit protection
    • Self-configuring local manual switch input
    • Momentary or maintained switches are supported
    • "Fail-Safe" Circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates safety concerns.

    Technical Details

    • Technology: Multi-Technology PIR/Ultrasonic
    • Line Voltage: Yes
    • Mount: Ceiling
    • Adjustment: Self-Adjusting
    • Pattern Degrees: 180
    • Grade: Commercial
    • Color: White
    • Title 24 Compliant: Yes

    Electrical

    • Input V
