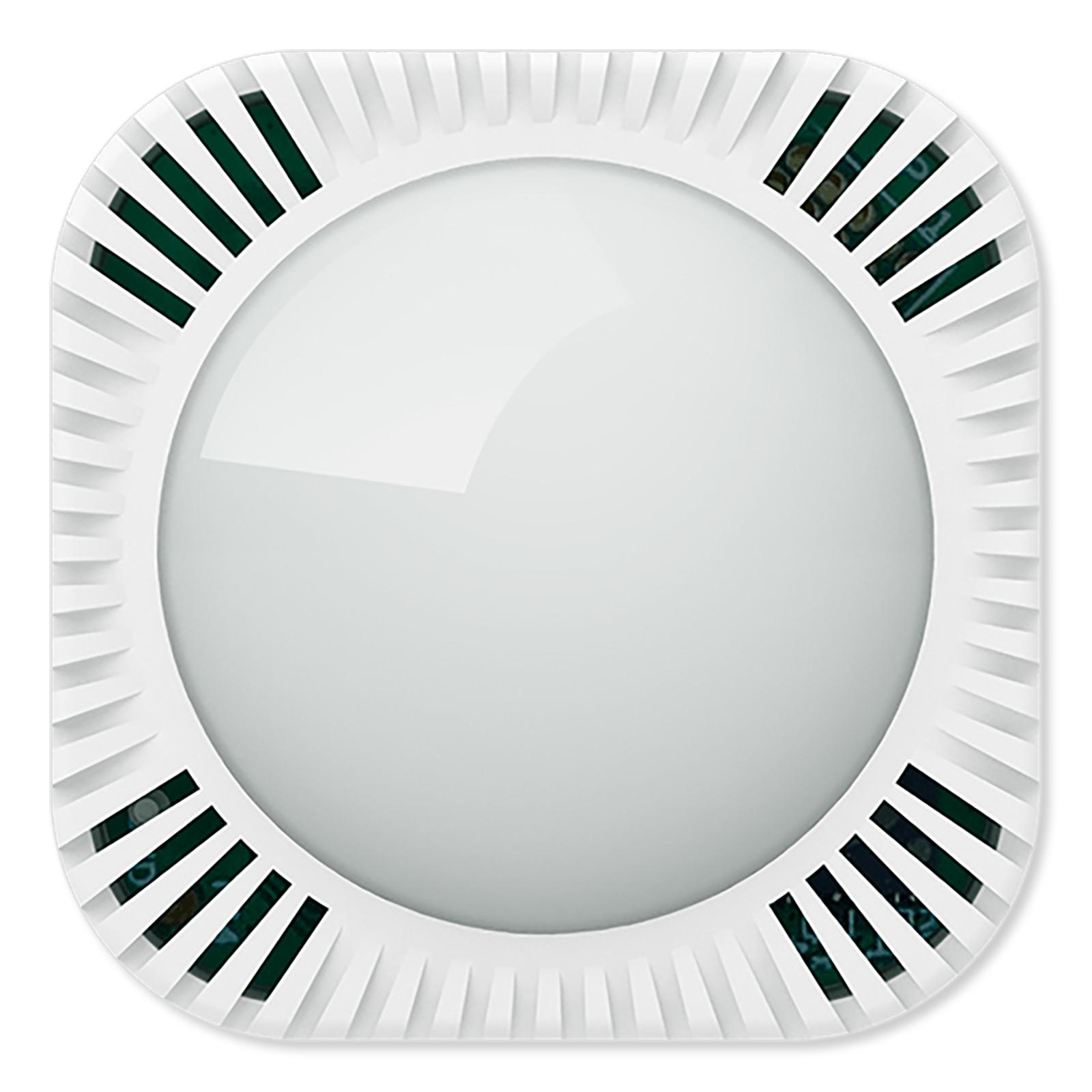

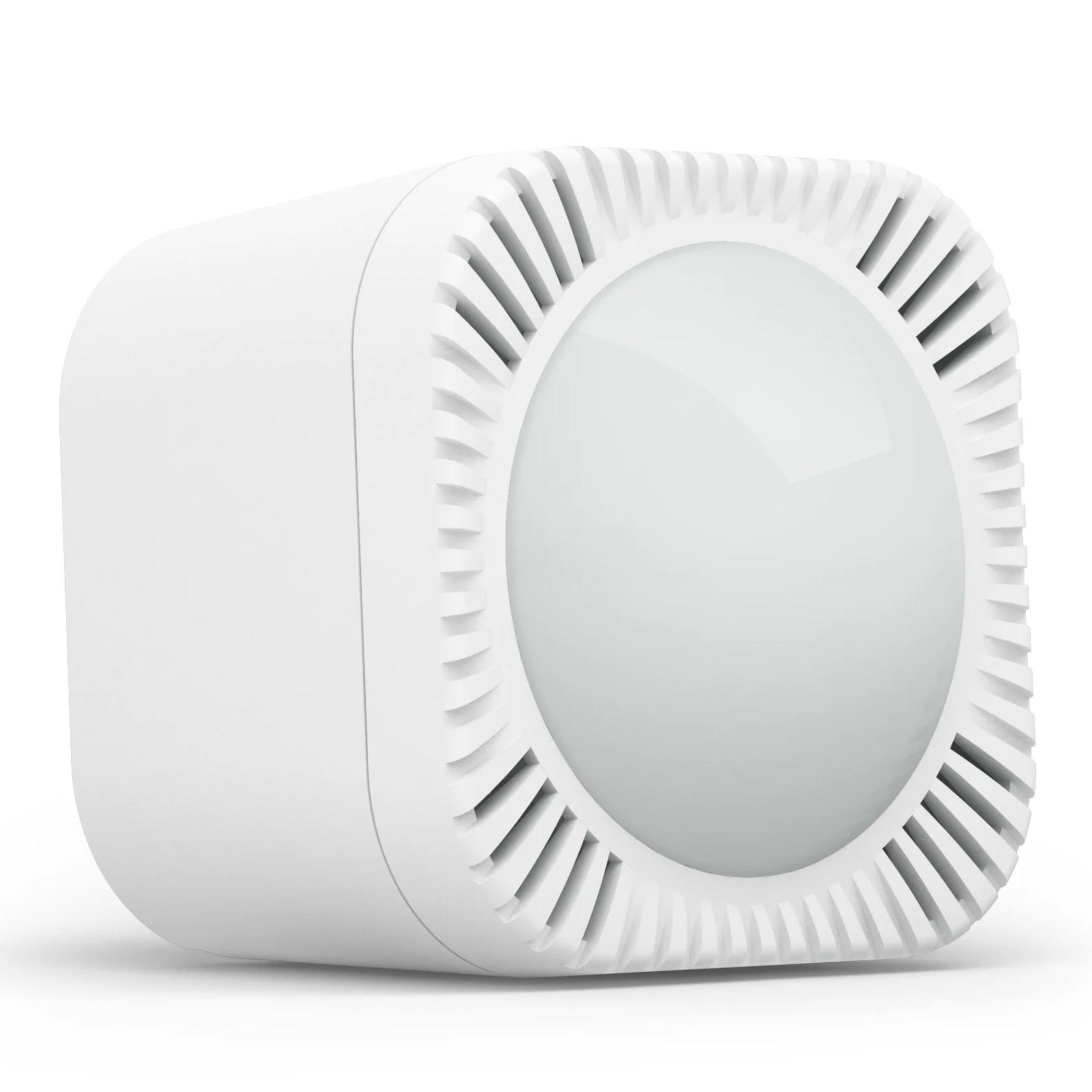

Aeotec Z-Wave Plus TriSensor 8 Multi-Sensor, 800 Series

Z-Wave Plus 800 Series 3-In-1 Sensor

Upgrade your home automation system with the Aeotec Z-Wave Plus TriSensor 8 Multi-Sensor, 800 Series. This multi-sensor combines three powerful sensors in one compact device to provide accurate motion detection, advanced light sensing capabilities, and accurate temperature sensing. It features Z-Wave 800 and Z-Wave Long Range (Z-Wave LR) certifications that ensure compatibility with all major Z-Wave hubs and controllers, faster and stronger transmissions, an extended wireless range up to 1 mile line of sight, S2 enhanced security, and better energy efficiency compared to previous Z-Wave series.

• Wireless Z-Wave 800 multi-sensor detects and reports changes in motion, temperature, and light levels
• Detects movement within a 120° angle up to 33 feet away
• Measures temperature between 14° to 122°F (-10° to 50°C) and reports sudden changes in temperature
• Detects ambient light levels from 0 to 3,000 lux
• Standard Z-Wave mesh protocol range reaches up to 656 feet (200m) line of sight, Z-Wave LR compatible protocol reaches up to 1 mile (1.6km) line of sight
• Z-Wave 800 software provides increased power, longer range, Smart Start installation, and S2 enhanced security
• Small size (1.77 inches) allows it be placed just about anywhere, indoors or outdoors
• Can send notifications to your smartphone when motion is detected (requires compatible Z-Wave controller with mobile app)

Monitor The Room In Three Different Ways

Motion: The Aeotec Z-Wave Plus 800 Series TriSensor 8 Multi-Sensor accurately detects indoor motion within a range of 33 feet (120° detection angle), making it ideal for monitoring any average-sized room in your home. This Z-Wave multisensor also boosts home security by activating connected lights when motion is detected in the dark, providing better illumination for your cameras and enhancing recorded footage. Furthermore, once the TriSensor is paired with a compatible Z-Wave controller, the Aeotec Multisensor 800 Series can send alerts to your smartphone if motion is detected while you're away.

Temperature: Maintain the ideal room temperature and conserve energy by using the Z-Wave multisensor's temperature sensor to communicate with and trigger other Z-Wave devices, such as a Z-Wave thermostat or motorized window coverings. Each Aeotec TriSensor 8 features a precise temperature sensor that measures temperatures ranging from 14° to 122°F (-10° to 50°C) and reports significant changes to your Z-Wave controller.

Ambient Light: Automate your Z-Wave-controlled lights with the Z-Wave multisensor. Its built-in digital light sensor detects ambient light levels from 0 to 3,000 lux, allowing you to program Z-Wave lights and curtains to create the ideal ambiance at any time of day. Additionally, the Aeotec TriSensor 8 can turn off lights in rooms when no motion is detected, reducing energy consumption and lowering utility costs.

Installation Details

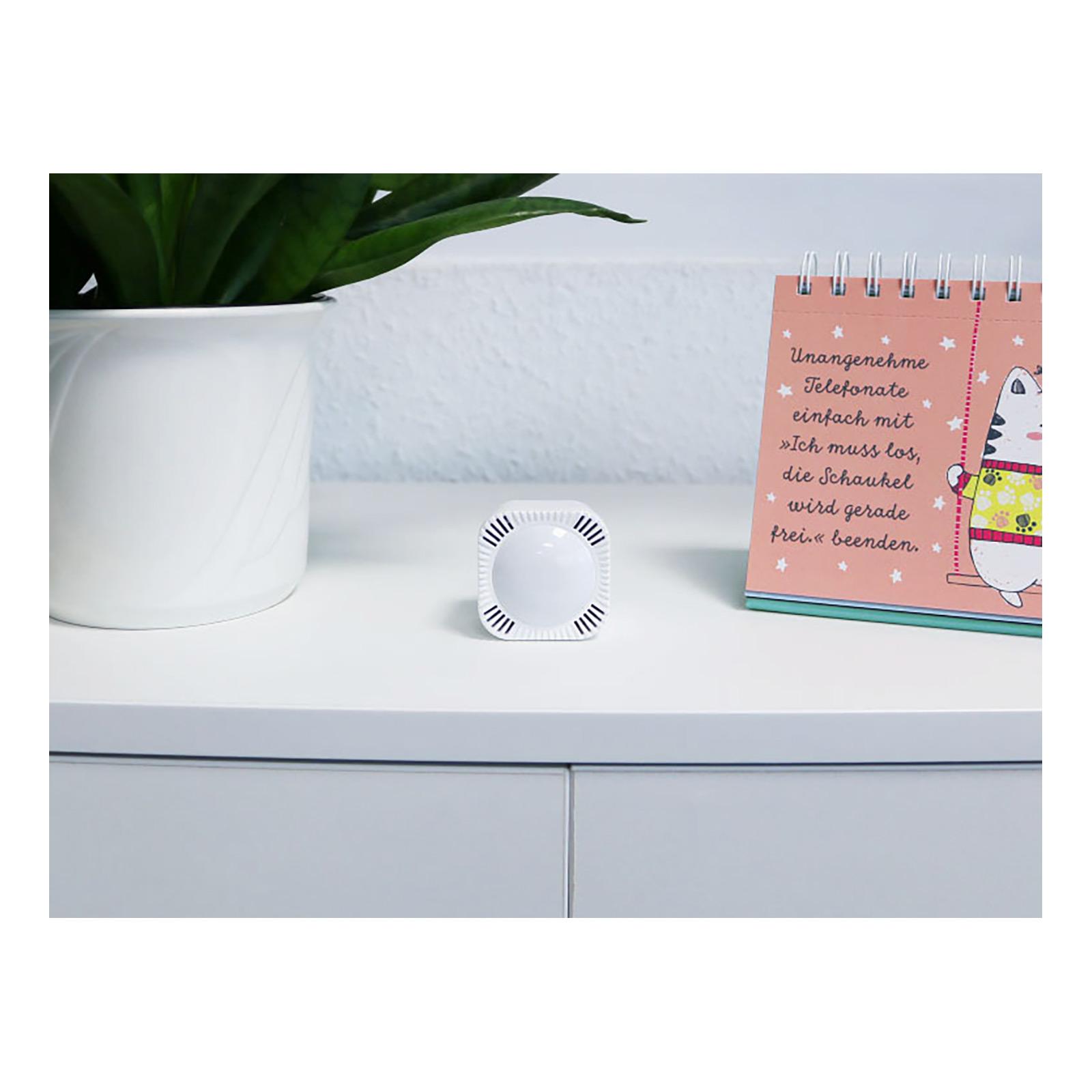

The Aeotec Z-Wave Plus TriSensor 8 Multi-Sensor comes with a mounting arm for installation on a wall or in a corner with freedom to adjust and rotate the sensor. The Z-Wave 800 Series Multisensor can also be placed on a desk, kitchen counter, table, or flat surface.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 1300 ft/400m, three layers of encryption, faster operation, and longer battery life.

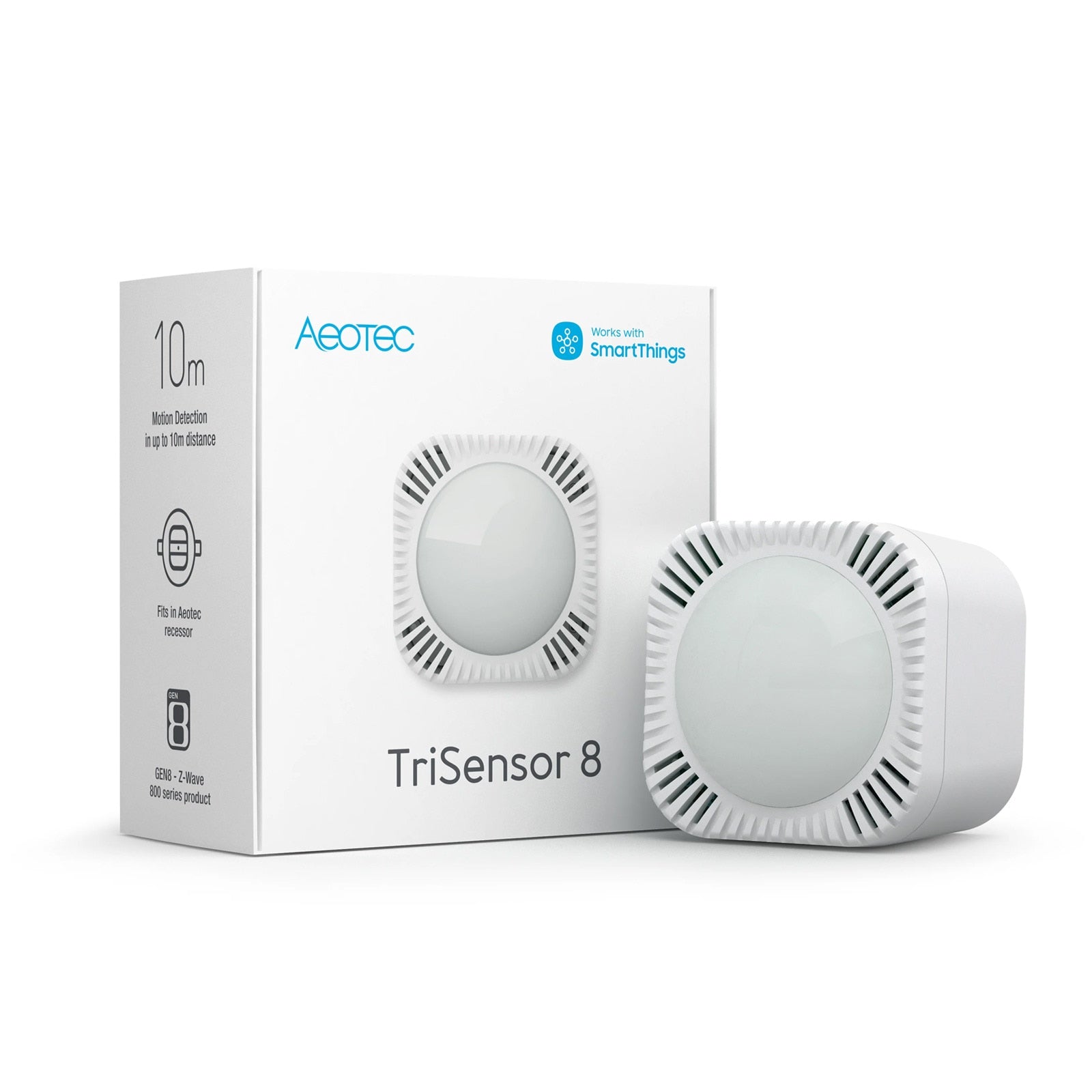

Contents

• TriSensor
• Battery Cover
• Double-Sided Tape
• (2) Screws
• Back Arm Mount
• Warranty Card
• Quick Start Guide

NOTE: Z-Wave compatible gateway or system hub required, sold separately.

Harmonizing The Digital Home

Formerly Aeon Labs, Aeotec is a leading developer and manufacturer of wireless products which complement the "Digital Smart Home". Their products are designed to save energy, protect the home, and ultimately improve life. They focus on providing innovation, the highest caliber of quality, and unparalleled user experience without sacrifice.
