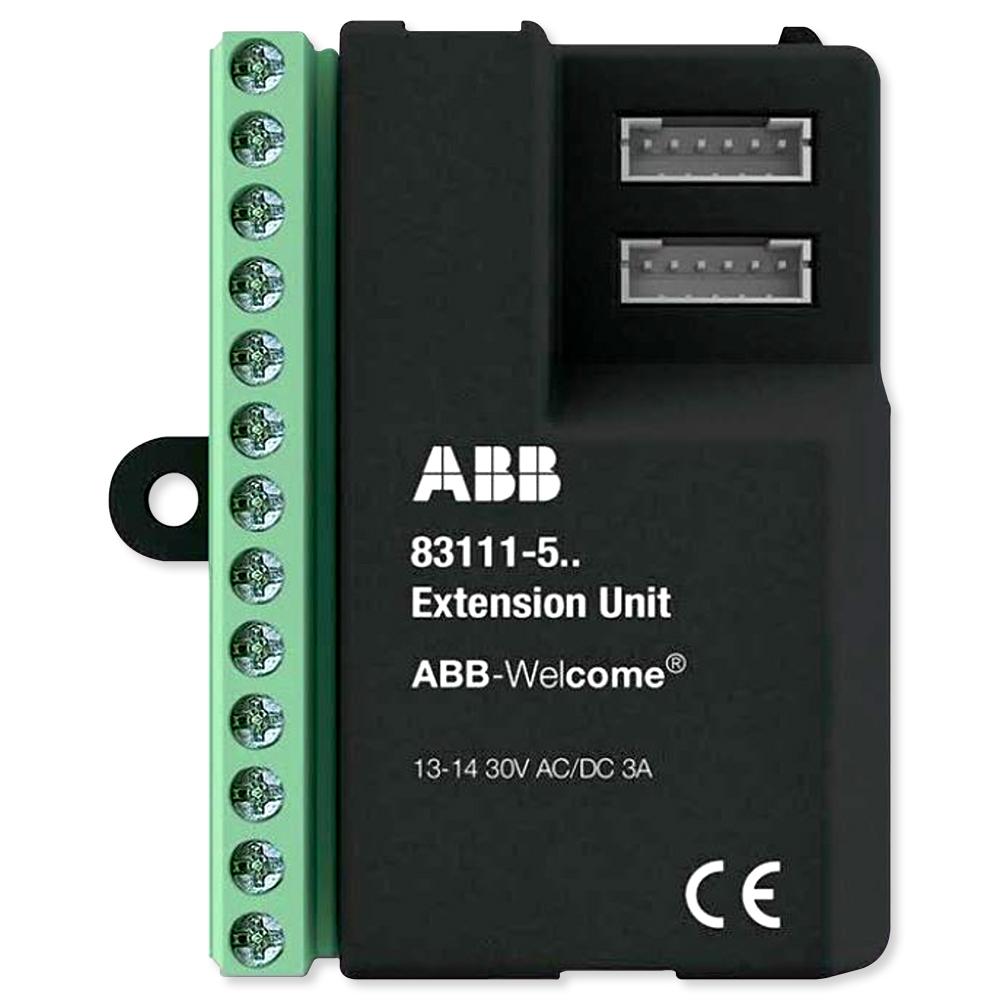

    ABB-Welcome Audio Extension Unit

    ABB-Welcome Audio Extension Unit

    ABB83111500

    $167.45

    Notify me when this product is available:

    Connect More Buttons to the Audio Integration Unit

    Designed to extend the capabilities of the ABB-Welcome Audio Integration Unit (sold separately), the ABB-Welcome Audio Extension Unit allows you to connect up to 12 additional pushbuttons of your third-party mailbox or bell system, so that visitors can use those pushbuttons to initiate calls with your ABB Door Entry System. The extension unit provides 12 binary inputs for the buttons, as well as an interface for the connection of keypad extensions. With the aid of the keypad extensions (not included), the unit can be extended to a maximum of 99 inputs.

    NOTE: Requires 2-wire connection to the Audio Integration Unit (83110-500), sold separately.

    About the ABB Door Entry System

    Also known as the "Welcome" system, the Door Entry System is a first-of-its-kind modular intercom and access control system that offers one flexible solution for any i

    Technical Details

    • Manufacturer Part #: 83111-500
    • Single-Wire Clamps: 2 x 0.6 mm2 – 2 x 1 mm2
    • Multi-Strand Clamps: 2 x 0.6 mm2 – 2 x 0.75 mm2
    • Bus Voltage: 20 – 30 V DC
    • Temperature Range: -13° to 131°F (-25° to 55°C)
    • Dimensions: 2.68(L) x 1.97(W) x 1.34(D) inches (68 x 50 x 24 mm)
    • Warranty: 2 Years

    System Capacity

    • 9 Guard Units per System
    • 60 Buildings per System
    • 250 Indoor Stations per Building
    • 9 Outdoor Stations per Building (including gate and other outdoor stations)
    • 2 Locks per Outdoor Station

    »ABB Welcome 83111-500 Audio Extension Unit Installation Manual (.pdf)»ABB Welcome Brochure (.pdf)»ABB Welcome M Door Entry System Brochure (.pdf)»ABB Welcome Door Entry System Manual (.pdf)
