    Home / New Home Installation Intercoms / ABB-Welcome Video Outdoor Station, 1/2 Pushbutton

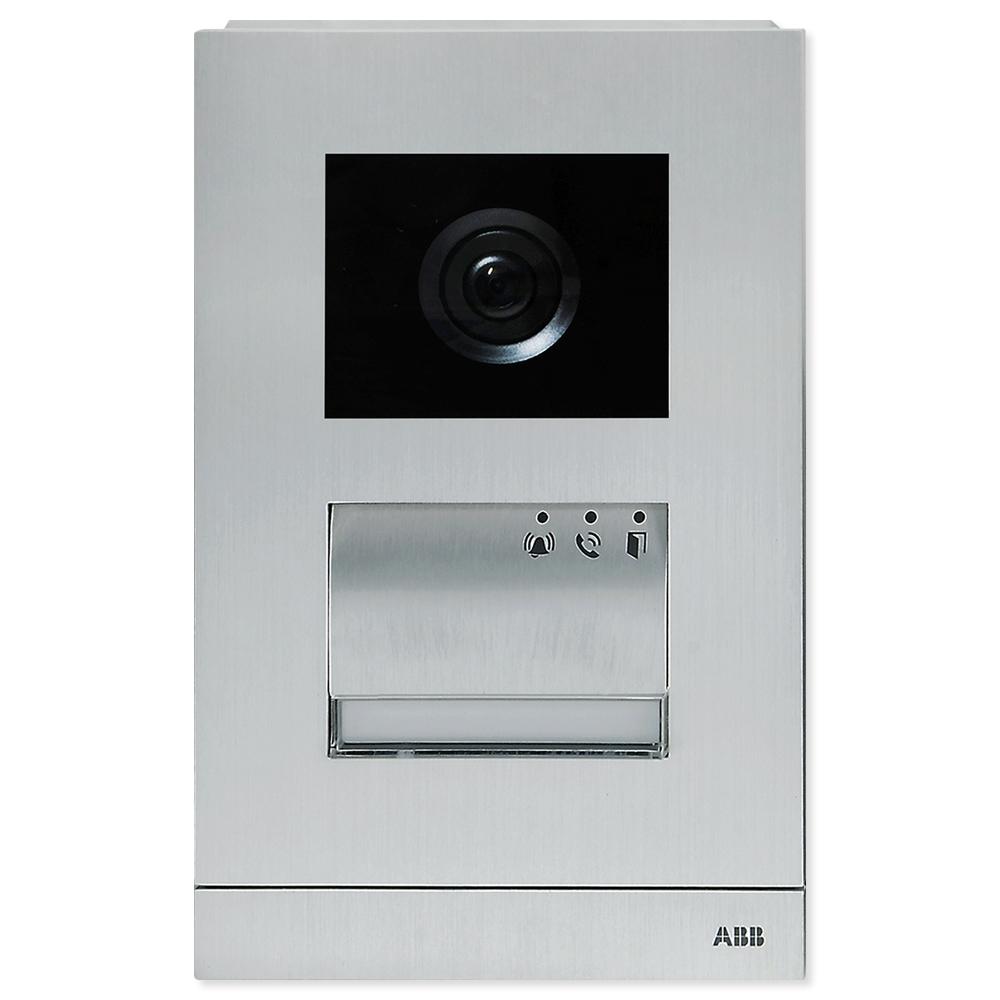

    ABB-Welcome Video Outdoor Station, 1/2 Pushbutton

    ABB-Welcome Video Outdoor Station, 1/2 Pushbutton

    ABBM21351P1A

    $1,287.51

    Notify me when this product is available:

    Pre-Assembled Outdoor Station for ABB Door Entry Systems

    The ABB Video Outdoor Station with 1/2 Pushbutton is a pre-assembled custom outdoor station for the ABB Door Entry System, facilitating quicker installation for common applications. The two-module station includes the Audio Module with 1/2 Pushbutton (M251022A-A) and the Camera Module (M251021C), as well as the required 2-module Aluminum Faceplate (51022CF-A). This configuration allows a visitor to initiate a call with an indoor station/residence by pressing the pushbutton and to then talk with the resident, while the resident can view visitors through the camera from a video indoor station.

    • Includes faceplate and 2 modules: Audio with Pushbutton, Camera
    • Provides two-way communication with indoor stations
    • Built-in speaker, microphone, and two door lock terminals
    • Activated by indoor station or built-in pushbutton
    • Live video feed viewable on vide

    Product Features

    • Video camera with large detection angle (H 86°, V 67°, D 104°)
    • Manual mechanical adjustment (H ± 15°, V ± 15°)
    • Optional to connect 1 additional output inside the video indoor station
    • 1 output for door opener without the need of additional power supply
    • 1 output for floating output, door opener (30V AC/DC 1A)
    • 1 input for door status check
    • 1 input for exit pushbutton

    Technical Details

    • Manufacturer Part #: M21351P1-A
    • Dimensions: 7.91 x 4.92 x 1.93 inches
    • Warranty: 2 Years

    Audio Module with 1/2 Pushbutton (M251022A-A)

    • Operating Temperature: -40° to 158°F (-40° to 70°C)
    • Protection: Waterproof: IP54; Vandal-proof: IK 07

    »ABB M21351P1-A Video Outdoor Station Spec Sheet (.pdf)»ABB M25102xA-x Audio module Spec Sheet (.pdf)»ABB M251021C Camera Module Spec Sheet (.pdf)»ABB M25102 Outdoor Station Installation Manual (.pdf)»ABB Welcome Brochure (.pdf)
