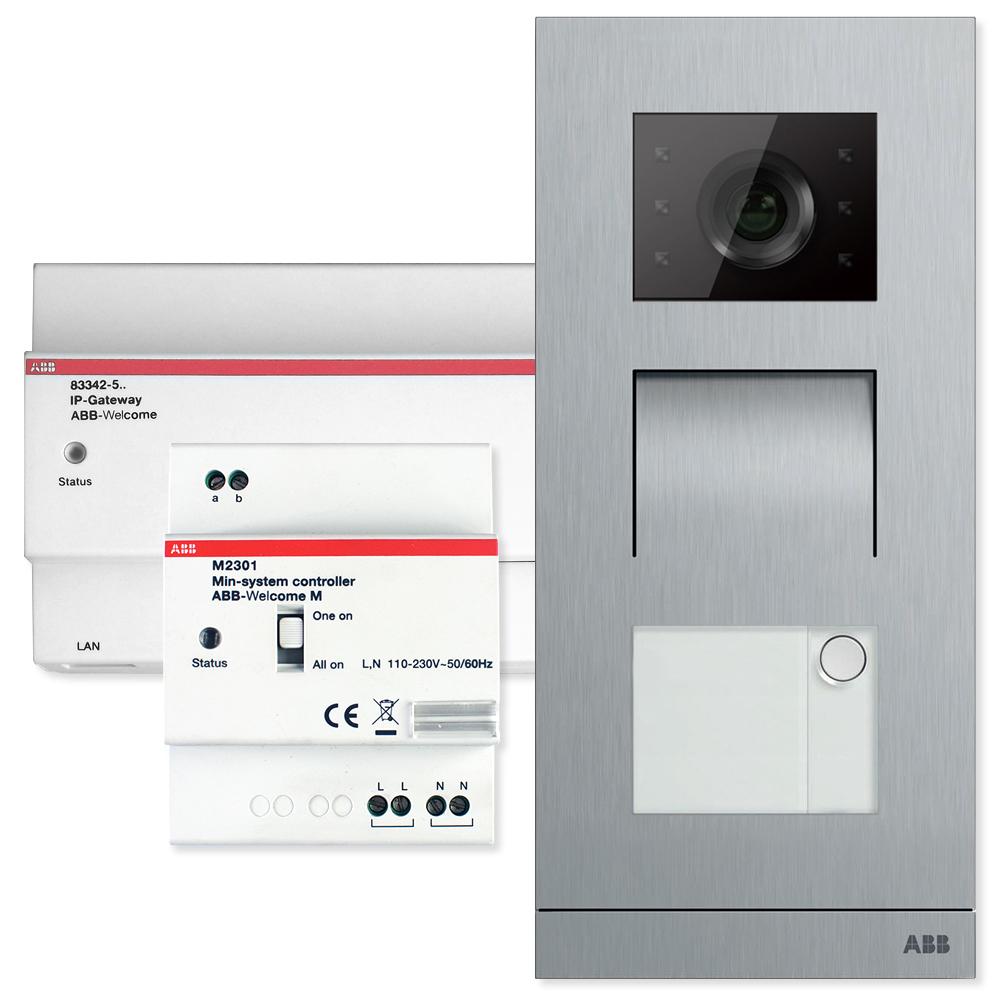

  • ABB Cell Phone Door Entry Integration Kit

    ABBM20353

    Notify me when this product is available:

    Intercom System to Answer Your Door Remotely

    Answer your door from anywhere through a mobile device by installing the ABB Cell Phone Door Entry Integration Kit. This complete door intercom system comes with an outdoor station with a speaker and microphone, as well as an IP Gateway that connects the station to the Internet, allowing you to talk with visitors at the outdoor station through up to four mobile devices, such as smartphones and tablets. The kit also includes the required system controller and mounting box. The controller supports a wide range of add-on components (sold separately), so you can expand the system as you wish.

    • Provides communication with visitors at your door via mobile devices
    • Supports up to four Internet-enabled devices (smartphones and tablets)
    • Free app for iOS and Android mobile devices
    • Can optionally trigger up to two door strike releases

    Requirements

    • DSL-6000 Internet connection or faster
    • Minimum 3G (UMTS) mobile Internet
    • Android 4.0 or higher, or iOS 4 or higher

    Technical Details

    • Manufacturer Part #: M20353
    • Warranty: 2 Years

    Mini Outdoor Station, 1-Button (M21311P1-A)

    • Dimensions: 3.89 x 6.61 x 1.02 inches

    IP Gateway (83342-500)

    • Operating Temperature: -13° to 131°F (-25° to 55°C)
    • Protection: IP20
    • Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Bus Input Voltage: 20-30VDC
    • Size: 10 TE

    Mini System Cont
