    Home / New Home Installation Intercoms / ABB-Welcome Camera Interface

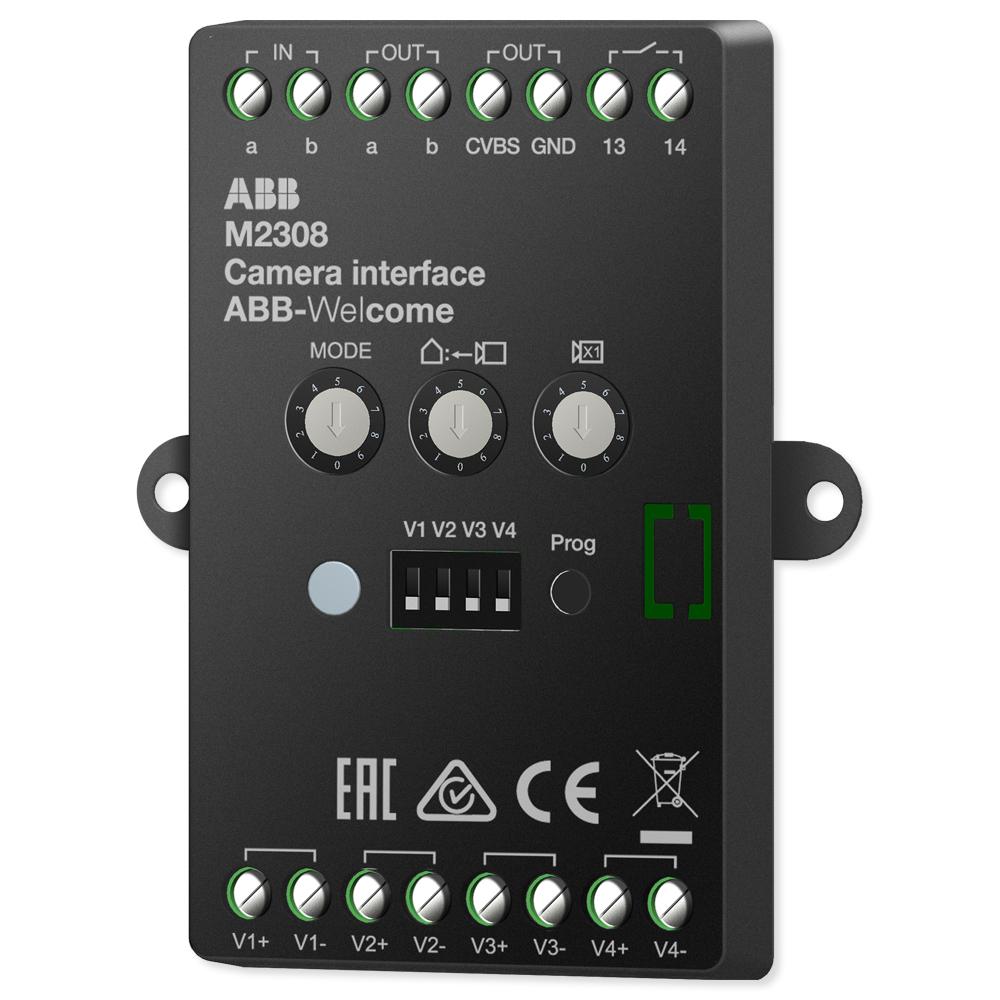

    ABB-Welcome Camera Interface

    ABB-Welcome Camera Interface

    ABB83327500

    $214.73

    Notify me when this product is available:

    Connect Analog Cameras to the ABB Door Entry System

    The ABB Camera Interface allows you to connect up to four third-party analog surveillance cameras to an outdoor station in your ABB Door Entry System. Once a camera is connected, its video feed can be viewed from a video indoor station or Guard Unit in the same way a Camera Module's video is viewed (Camera Module not required). The interface also supports input and output of the outdoor station's video signal to a third-party DVR during a call, while the video can be viewed simultaneously from a video indoor station.

    • Connects up to 4 third-party cameras to an outdoor station
    • Allows viewing from an indoor station or Guard Unit
    • Can optionally send video a third-party DVR
    • Surface-mounts or DIN rail-mounts

    NOTE: Requires connection to an outdoor station. Does not include camera(s) or DVR. For use with analog cameras only. Does not supp

    • Manufacturer Part #: 83327-500
    • Operating Temperature: -13° to 131°F (-25° to 55°C)
    • Protection: IP30
    • Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 0.75 mm2
    • Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 0.75 mm2
    • Bus Input Voltage: 20-30VDC
    • Video Input: 1Vp-p, PAL/NTSC
    • Video Output: 1Vp-p at 75 ohms, PAL/NTSC
    • Interface to Camera: Coax cable, max 100m; Other cables, 10-50m
    • Dimensions: 3.03 x 2.4 x 0.98 inches (77 x 61 x 25 mm)
    • Warranty: 2 Years

    System Capacity

    • 9 Guard Units per System
    • 60 Buildings per System
    • 250 Indoor Stations per Building
    • 9 Outdoor Stations per Building (including gate and other outd

    »ABB 83327-500 Camera Interface User Manual (.pdf)»ABB Welcome Brochure (.pdf)»ABB Welcome M Door Entry System Brochure (.pdf)»ABB Welcome Door Entry System Manual (.pdf)
