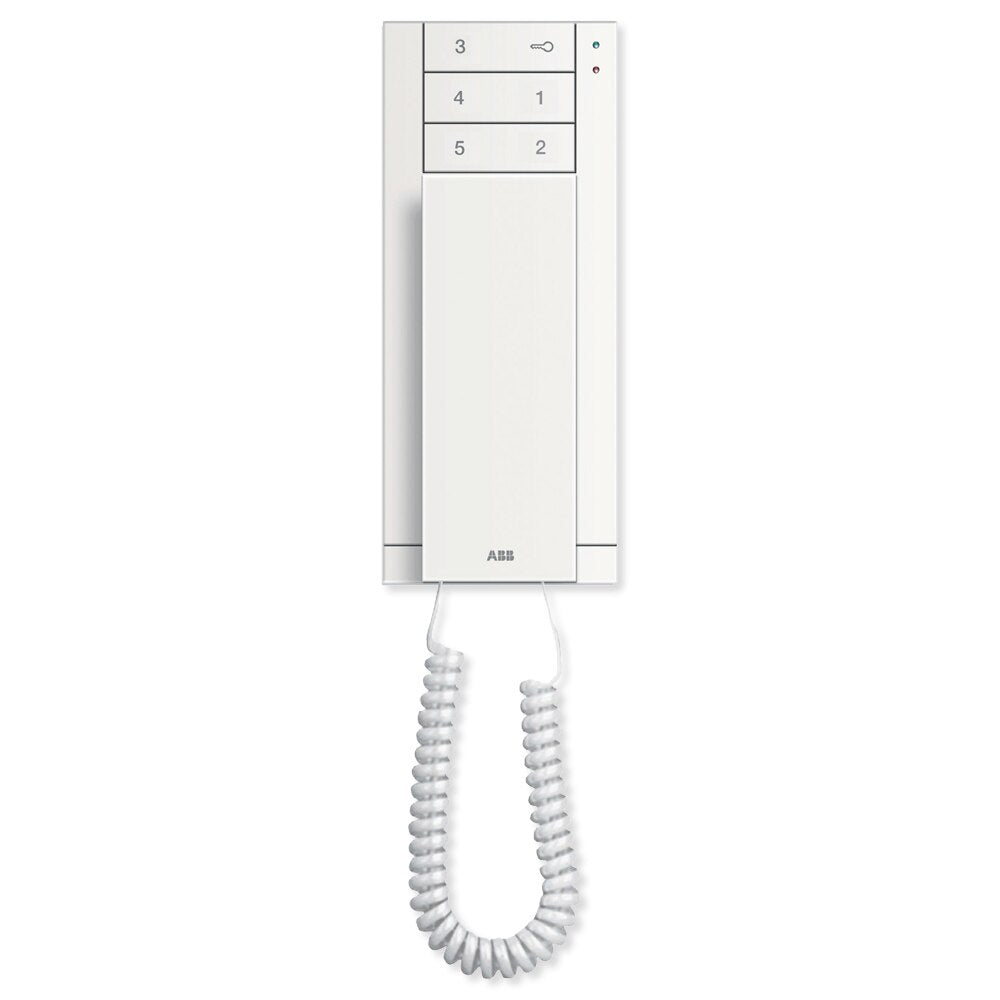

  • ABB Audio Handset Indoor Station, 6 Buttons

    ABBM22001W

    Notify me when this product is available:

    Audio Indoor Station for ABB Door Entry Systems

    Designed like a corded telephone, the ABB Audio Handset Indoor Station with 6 Buttons gives residents a convenient way to answer intercom calls from outdoor stations in their ABB Door Entry System. When the station rings, pick up the handset to answer. The handset provides clear audio communication, and the six pushbuttons make it easy to access other functions in the system, including triggering a door lock release, making a door status check, and calling a Guard Unit. With a built-in induction loop, the station also optionally supports hearing aid users by sending incoming audio wirelessly to the hearing aid(s) and directly into the resident's ear(s).

    • Provides audio communication with outdoor stations
    • 1 button for door unlock release and 5 auxiliary buttons
    • Up to 5 different ringtones differentiate call sources
    • Adjustable volume via side switch (max-mid-
    • Manufacturer Part #: M22001-W
    • Operating Temperature: 14° to 131°F (-10° to 55°C)
    • Storage Temperature: -40° to 158°F (-40° to 70°C)
    • Protection: IP30
    • Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
    • Bus Voltage: 20-30V
    • Dimensions: 7.8 x 3.19 x 1.69 inches
    • Warranty: 2 Years

    System Capacity

    • 9 Guard Units per System
    • 60 Buildings per System
    • 250 Indoor Stations per Building
    • 9 Outdoor Stations per Building (including gate and other outdoor stations)
    • 2 Locks per Outdoor Station
