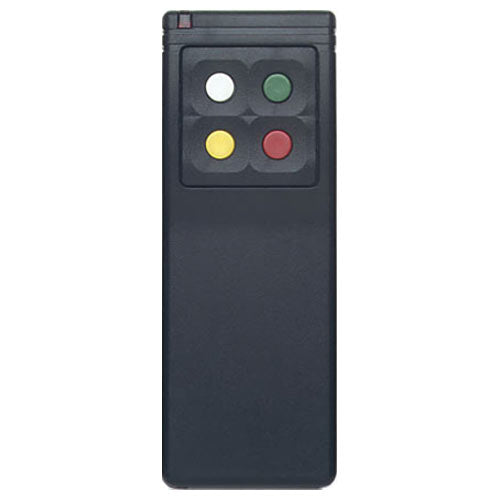

  • Linear MegaCode Visor Transmitter, 5-Channel

    LNMDT4A

    Notify me when this product is available:

    MegaCode Format

    The MDT-4A 5-Channel Visor Transmitter is designed for use with Linear’s access control products. The MDT-4A is five-channel device. Pressing one of the transmitter’s front buttons sends channel one through four. Pressing the small button on the transmitter’s top sends channel five. The top button can be hidden with the top button cover supplied. Also included are lithium batteries with a five-year service life and a visor clip.

    The transmitter is MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of code duplication. Because the receiver "learns" each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter.

    • Compatible with all Linear access receivers and controllers
    • Superior transmission range
    • Factory programmed MegaCode format suppo

    Technical Details

    • Battery Life: Up to five years
    • Frequency: 318 MHz
    • Number of Codes: 1,000,000+ (MegaCode format)
    • Channels: Five channel
    • Power: Two 3V 2032 type lithium batteries (supplied)
    • Dimensions: 1.6" W x 4.2" H x 0.8" D (41 x 107 x 20 mm)

    Models compatible with the MDT-4A

    • AE1000Plus: Commercial Telephone Entry System with Access Control – Four Doors
    • AE2000Plus: Commercial Telephone Entry System with Access Control – Four Doors, Large Screen
    • AKR-1: Exterior Digital Keypad with Radio Receiver
    • AM-RPR: Remote Proximity Receiver
    • AM-RRR: Remote Radio Receiver
    • MDR: 1-Channel Receiver
