  • Linear MegaCode Visor Transmitter, 1-Channel

    LNMDT1A

    MegaCode Format

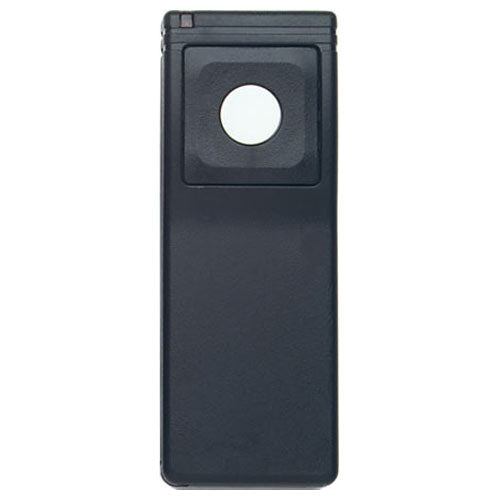

    The Linear MDT-1A 1-Channel Visor Transmitter is designed for use with Linear’s access control products. The MDT-1A is a single-channel device. Pressing either the round button on the transmitter’s front, or the small button on the transmitter’s top will send the same signal. The top button can be hidden with the top button cover supplied. Also included are lithium batteries with a five-year service life and a visor clip.

    The transmitter is MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of code duplication. Because the receiver "learns" each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter.

    • Compatible with all Linear access receivers and controllers
    • Superior transmission range
    • Factory programmed MegaCode format supports ove

    Technical Details

    • Battery Life: Up to five years
    • Frequency: 318 MHz
    • Number of Codes: 1,000,000+ (MegaCode format)
    • Channels: one channel
    • Power: Two 3V 2032 type lithium batteries (supplied)
    • Dimensions: 1.6" W x 4.2" H x 0.8" D (41 x 107 x 20 mm)

    Models compatible with the MDT-1A

    • AE1000Plus: Commercial Telephone Entry System with Access Control – Four Doors
    • AE2000Plus: Commercial Telephone Entry System with Access Control – Four Doors, Large Screen
    • AKR-1: Exterior Digital Keypad with Radio Receiver
    • AM-RPR: Remote Proximity Receiver
    • AM-RRR: Remote Radio Receiver
    • MDR: 1-Channel Receiver
