    Home / Linear / Linear Access Control Digital Keypad, Outdoor

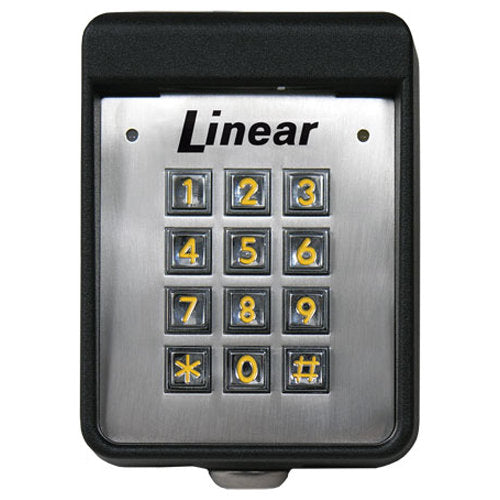

    Linear Access Control Digital Keypad, Outdoor

    Linear Access Control Digital Keypad, Outdoor

    LNAK11

    $259.06

    Notify me when this product is available:

    Designed For Access Control Applications

    The AK-11 Exterior Digital Keypad is a digital keyless entry system designed for access control applications. The keypad is housed in a rugged cast aluminum enclosure that can be mounted to a pedestal or bolted directly to a wall. The die-cast keys have bright, easy-to-read yellow graphics.

    Up to 480 entry codes, from 1 to 6 digits in length, can be programmed. They can activate either, or both, of the relay outputs. Relay #1 has a 5 Amp capacity. Relay #2 has a 1 Amp capacity. The relays can be set for timed or latch-on/latch-off toggle operation per each individual entry code. The on or off toggle state of a relay is maintained even after power interruption. When power is restored to the keypad, each relay will assume the state it was in when power was removed.

    Two indicators show the status of the entry system. The left indicator lights red to indicate power, then turns green when access

    • Self-contained keyless entry system ideal for airports, hospitals, warehouses, office buildings, parking lots and many other commercial facilities
    • Rugged, cast aluminum enclosure for indoor or outdoor mounting on a wall or pedestal
    • Four independent outputs and timers: two form C relays and two solid-state open collector outputs with unique programming per entry code
    • Up to 480 programmable input codes of one to six digits each for activating either or both relays
    • Two LED indicators show system status
    • Key operating features include: door sense input; inhibit input; request-to-exit input; alarm shunt output; timed anti-passback; and keypad lockout
    • Programmable courtesy light illuminates keypad for 1, 2, 3, or 4 minutes, or always on
    • Tactile and audible feedback
    • Keylock secures keypad to mounting backplate
    • 4" W x 5.5" H x 3" D

    »Linear AK-11 Access Control Digital Keypad, Outdoor Installation Manual (.pdf)
