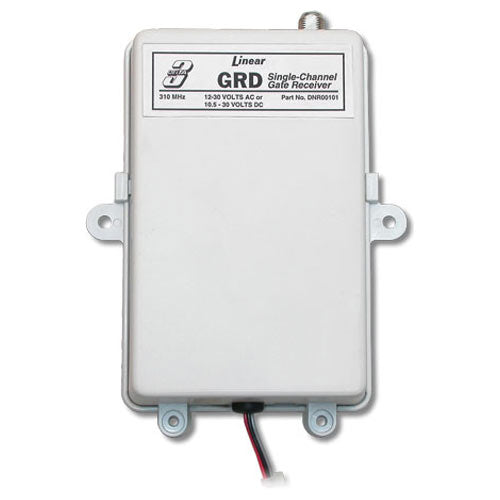

Linear Delta-3 Gate Receiver, 1-Channel

Delta-3 Format

The GRD is a 1-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed. The receiver uses the Delta-3 radio format, with 256 possible codes, set by dipswitch.

• Auto voltage sensing – no jumpers to set
• Single Form "A" (normally open) relay rated at 30 Volts AC/DC up to 5 Amps
• Supplied with whip antenna, three feet of coaxial cable and bulkhead connector

Linear Delta-3 Format Gate Receivers

The GRD and the GRD-2 are two auto sensing Delta 3 format gate receivers from Linear. They eliminate any chance of damage to either the gate operator or themselves from running off the wrong voltage. Nearly all gate operators offer either 24 or 12 volts AC or DC as accessory power. Because the GRD and GRD-2 are auto sensing, each receiver recognizes the gate operator’s correct voltage. As a result, install
