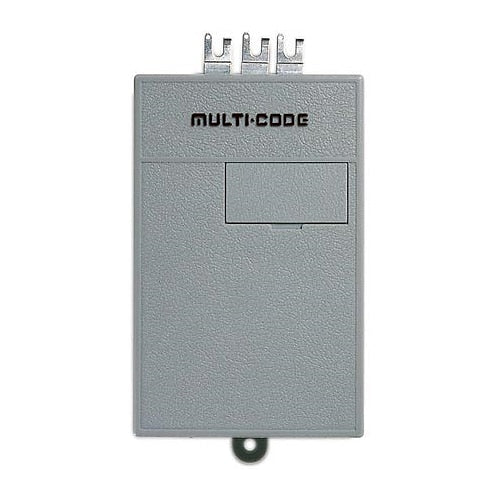

Linear Stanley Compatible Receiver, 1-Channel

Compatible With 310 MHz Stanley & Multi-Code Transmitters

The 309013 1-Channel Receiver is designed for use in residential garage door operator applications. Typically the receiver mounts directly to the three terminals on the door operator. An 11-inch wire antenna extends from the receiver.

The operator supplies 24-volt power to the receiver, or the receiver can be powered by a separate 24-volt AC power transformer. Remote power accessories available for the 309013 include the 109201 Wiring Harness and the 109207 Wiring Harness. Both models include a plug-in transformer.

The receiver’s exclusive two-way terminal lugs fit under terminal screws or can be used with push-on terminals in remote placement applications using the 109206 3-Wire Adapter.

The receiver is programmed with a 10-position coding switch. When a transmitter set to the same code is activated, the receiver’s output will activate, triggering the doo
