  • Leviton Telephone Security & 6-Way Video Panel, Compact Series

    Notify me when this product is available:

    Compact Series With Space-Saving Profile

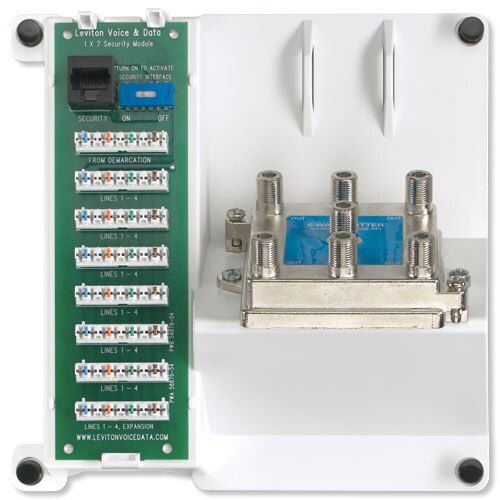

    Leviton's Compact Series Telephone Security and 6-way Video Panel combines a Telephone Security Board and a 6-way 1 GHz Video Splitter in a dedicated plastic bracket for essential telephone and video distribution. It handles up to four telephone lines through to seven telephone connections with security interface. It also features video output for up to six video connections.

    • Offers essential telephone and video distribution.
    • Handles up to 4 telephone lines through to 9 locations and routes video to 6 locations.
    • Fits in to any Leviton Structured Media enclosure or used as a stand-alone unit.

    Compact pre-configured structured cabling panels from Leviton are simple solutions for basic telephone and TV distribution in multi-dwelling units and apartments or any place where space and budgets are a priority.

    Compact Pre-Configured Panel Includes:

    Design Considerations

    • Determine outlet locations and carefully plan cable routing to ensure the selected unit satisfies requirements.
    • Install 75 Ohm termination caps on unused outputs of 6-way 1 GHz Video Splitter to reduce signal distortion or hosting.
    • Use Video Amplifier for increased signal strength.
    • Supports security systems via RJ-45 style interface with on/off (bypass) switch.

    Technical Details

    • Manufacturer Part #: 47603-TSV
    • 1x7 Telephone Security Board: 1
    • 6-Way Video Splitter: 1
    • Standards and Certifications: TIA/EIA-568-A and FCC Part 68 compliant.
    • Warranty: 2 Year Limited

    Mechanical

    • Telephone Security: 7 110-IDC, 1 RJ45 Security, 1 RJ45 Expansion
    • Video Splitter:
