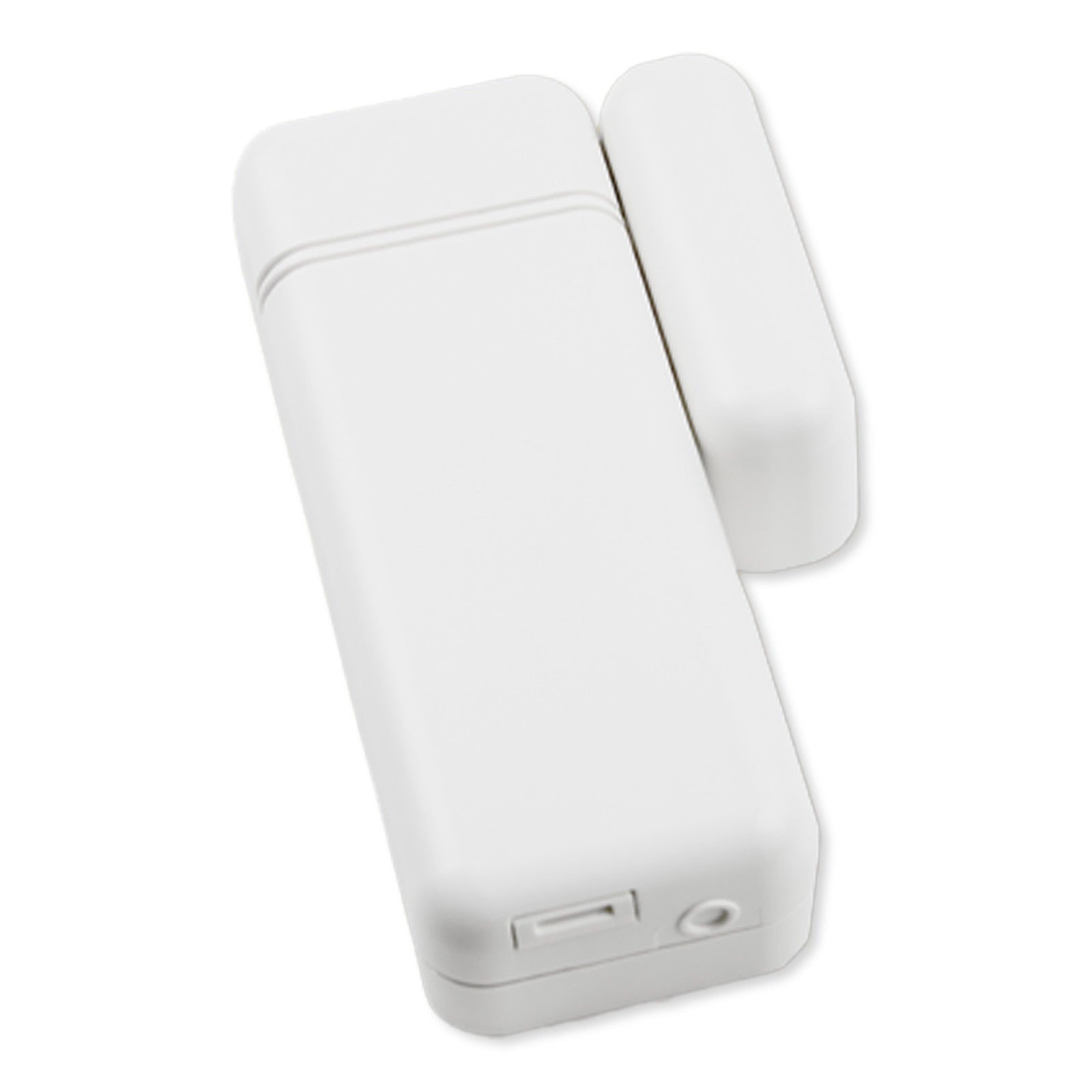

Qolsys IQ Shock Mini

Monitor The Status Of Any Open/Close Door or Window

Receive instant alerts when an object is tampered with, opened or closed with the Qolsys IQ Shock Mini. This mini vibration and contact sensor communicates via 319.5 MHz frequency to send alerts when an object the sensor is mounted on is moved or tampered with, as well as sending alerts when an Open/Close Object's status changes. The sensor is also capable of triggering a connected alarm when shock levels are exceeded due to an attempted forced entry. Used with any 319.5 MHz compatible control panel or receiver, such as a Qolsys IQ Panel or IQ Hub, this wireless, battery-powered sensor sends intelligent notifications to your panel, such as "door left open". Notifications can be custom-named, so you can know exactly what's going on. Name notifications for the sensor at your front door, for example, "front door left open". The sensor can also be included in automation rules. For example, you could create a rule that adjusts your connected thermostat when a door is left open.

• Monitors open/closed status of a door/window and features vibration detection
• Code output alerts include: tamper, tamper restore, alarm, alarm restore, low battery
• Capable of utilizing intelligent notifications such as "door left open, object moved" etc
• Compatible with 319.5 MHz wireless panels, including Qolsys IQ or GE/Interlogix
• Built-in tamper switch triggers alert if cover is removed
• 5 Year Battery Life

Installation Details

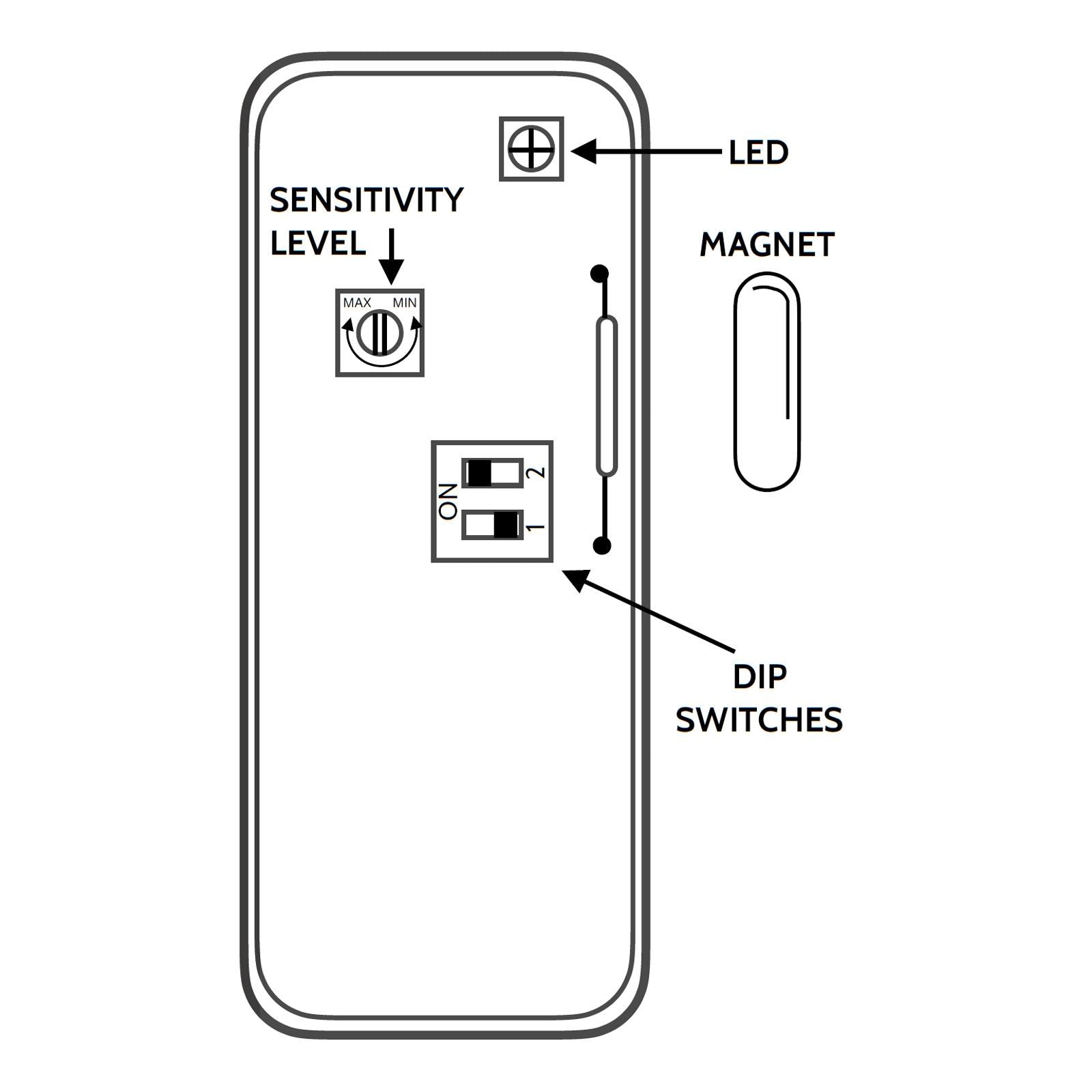

The Shock Sensor consists of a sensor, a magnet, and a shock sensitivity adjustment dial inside the sensor body that lets you customize the sensitivity of the sensor between Min, Med, and Max. The sensor installs on the door/window frame, and the magnet installs on the door/window itself. When the sensor detects that the magnet has moved more than 1 inch or that a strong vibration/shock level has been exceeded, a notification is triggered.

Possible Applications:

• Doors: swing doors, sliding doors, closet doors, etc
• Windows: bay windows, skylights, etc
• Storage: cabinets, dressers, drawers, safes, etc

Contents

• Sensor Body
• Magnet
• (2) CR123A Batteries
• User Manual

NOTE: Requires connection to a 319.5 MHz compatible control panel/receiver, sold separately.
