  • Global Cache Global Connect, GC7 w/ Serial, IR Port, CC Relays x2

    GC7NESLIR2RT

    Notify me when this product is available:

    Add Common Devices to Your Home Internet

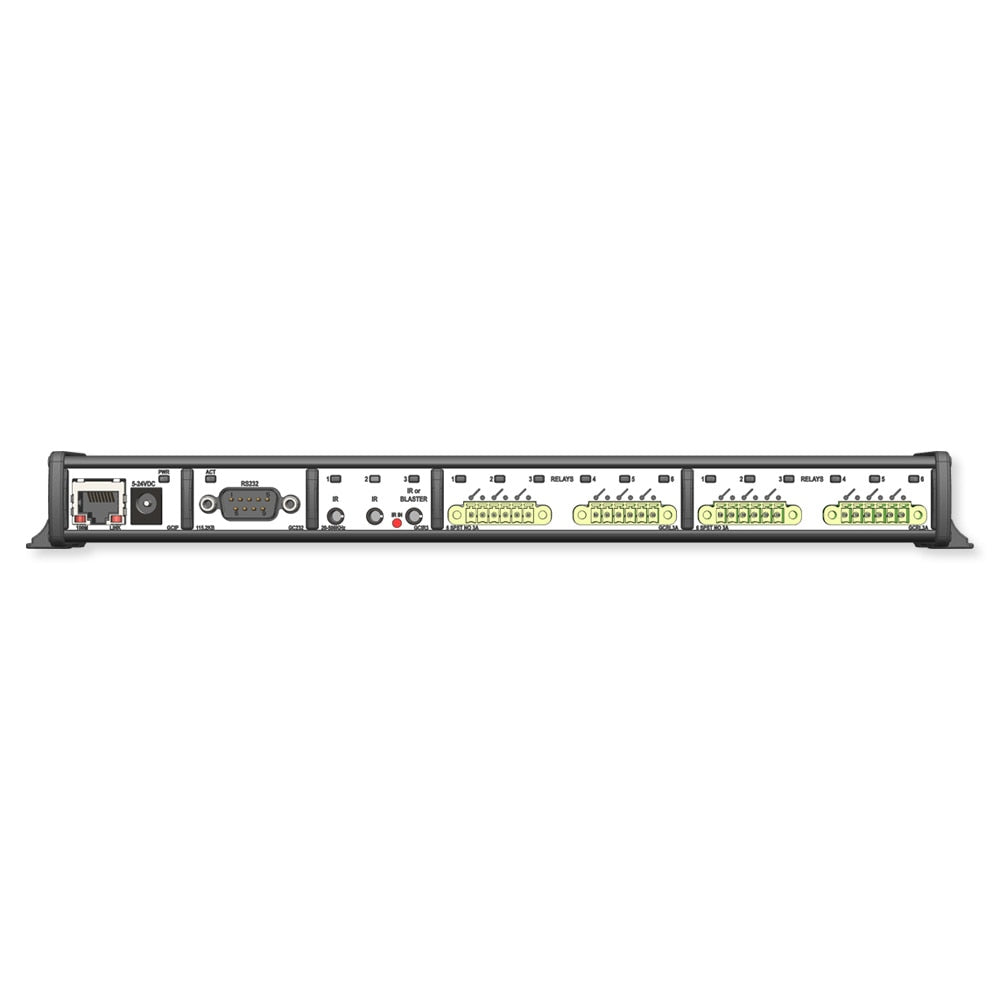

    The Global Caché Global Connect, GC7 is a high performance modular network adapter that is capable of providing universal control over multiple devices that operate with different communication protocols. This Global Connect GC7 Model includes Bidirectional Serial connections, IR Emitter and IR Blaster module, and Contact Closure Relays connections.

    • Modular network adapter enables universal control over multiple connection types
    • Supports Serial, IR, and Contact Closure Relays
    • Configure Module Setting using the Global Connect Online Web Portal
    • Control connected devices via PC or Internet-connected device
    • Reduces wiring and device clutter by centering around a singular network connection hub
    • Backwards compatibility with existing Global Caché devices

    Global Connect supports multiple communications simultaneously for a diverse ran

    • Manufacturer Part #: GC7/NE/SL/IR/2RT

    Single Ethernet Network Module

    • Network Connector: RJ45
    • Network Speed: 100Mbps, Full Duplex
    • Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
    • Power Input: Range: 5V-24V
    • Chassis Slots Occupied: 1

    3 IR Emitters/ 1 IR Blaster Cable

    • Ports: 3 x IR Outputs/Sensor Inputs
    • Included Cables: 3 x IR Emitters, 1 x IR Blaster
    • IR Output Frequency: 20KHz – 500KHz
    • IR Learner Frequency: 20KHz – 200KHz
    • Chassis Slot Occupied: 2

    Serial RS232 Bi-directional

    • Ports: 1 x Male DB9
    • Baud Rate: 300-115200 baud
    • Flow Control:
