Shelly Wi-Fi 1 Mini Gen3 Smart Relay

Add Wi-Fi Connectivity To Lights And Appliances

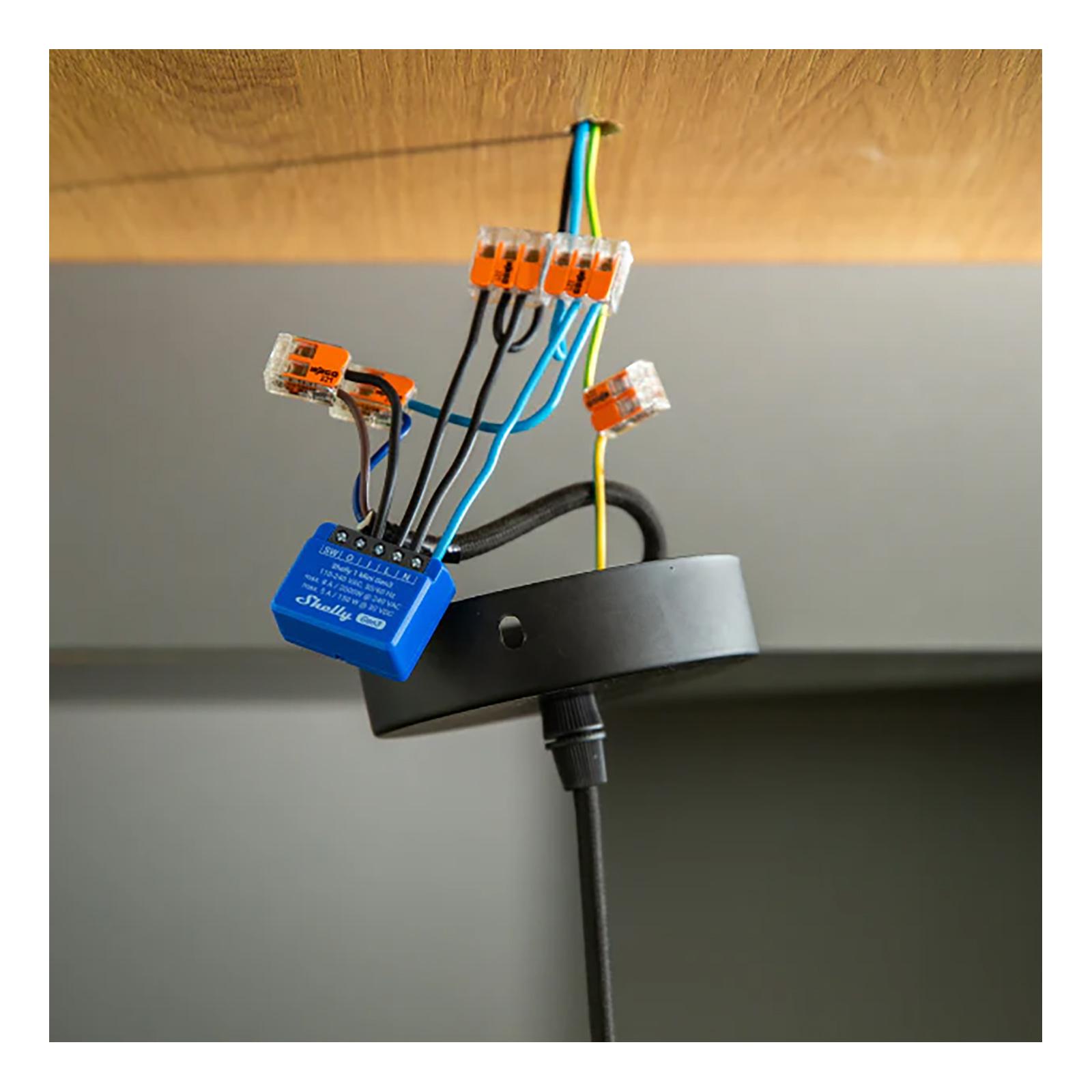

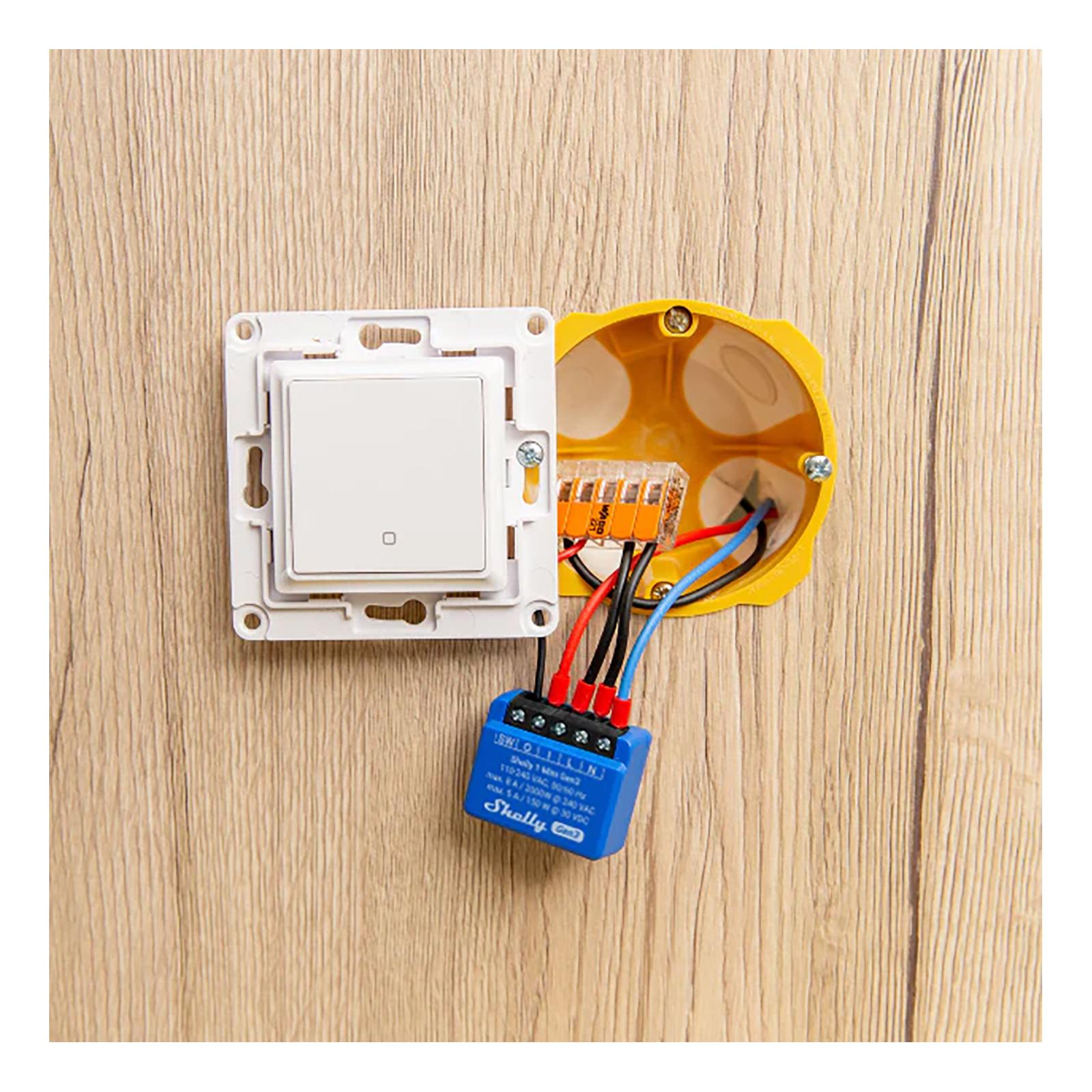

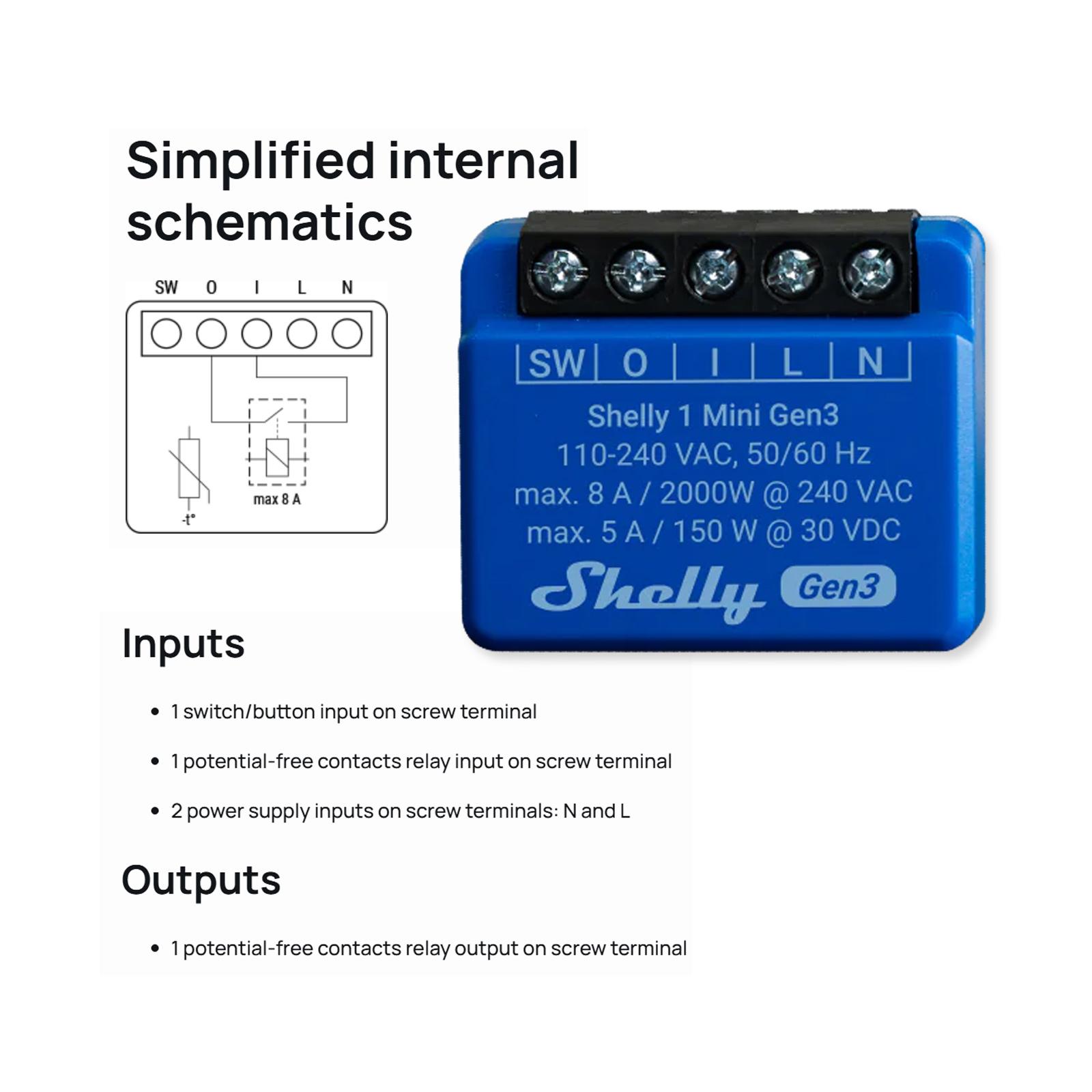

Add remote Wi-Fi connectivity to a light switch, wall outlet, or a small electrical appliance with the Shelly Wi-Fi 1 Mini Gen3 Smart Relay. This mini Wi-Fi relay is specifically built for installing inside an appliance's housing or behind a wall switch or outlet to add Wi-Fi remote control over lights and connected devices. It features 1 switch/button input, 2 power supply inputs, 1 potential-free contacts relay input, and 1 potential-free contacts relay output. It's compatible with various load types, such as resistive loads (incandescent bulbs and heating devices), capacitive loads (capacitor banks, electronic equipment, and motor start capacitors), and inductive loads (LED light drivers, transformers, fans, refrigerators, and air conditioners). Powered by a powerful Shelly chip with 8MB of memory, this smart relay ensures a smoother and faster performance than the previous version of the Shelly Plus 1 Mini.

• Adds Wi-Fi functionality by installing behind wall outlets, light switches, or inside appliance casings
• Connects effortlessly to your Wi-Fi network and functions as a Wi-Fi extender – no smart hub required
• Ideal for lights, garage doors, irrigation devices, doorbells, smart door locks, and other small appliances
• Offers Bluetooth connectivity for quick setup and can serve as a Bluetooth gateway
• Supports up to 8 A at 240 VAC and 5 A at 30 VDC and offers overheating protection
• Powered by an upgraded processor and enhanced flash memory for superior performance
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

The Shelly 1 Mini Gen3 can be remotely accessed, controlled, and monitored from anywhere with an Internet connection using the Shelly Smart Control App (for iOS and Android) – just as long as the 1 Mini Gen3 Smart Relay is connected to a Wi-Fi router and the Internet. You'll be able to use your smartphone, tablet, PC, or home automation system to control the connected light or appliance and even add them to smart home automation scenes to make life at home or the office a whole lot easier. When integrated with other Shelly products or smart sensors, you can trigger your lights to turn on when someone enters a room or have the lights turned off when motion is not detected for a predetermined amount of time. It's even compatible with voice assistants such as Amazon Alexa and Google Assistant for easy voice commands.

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

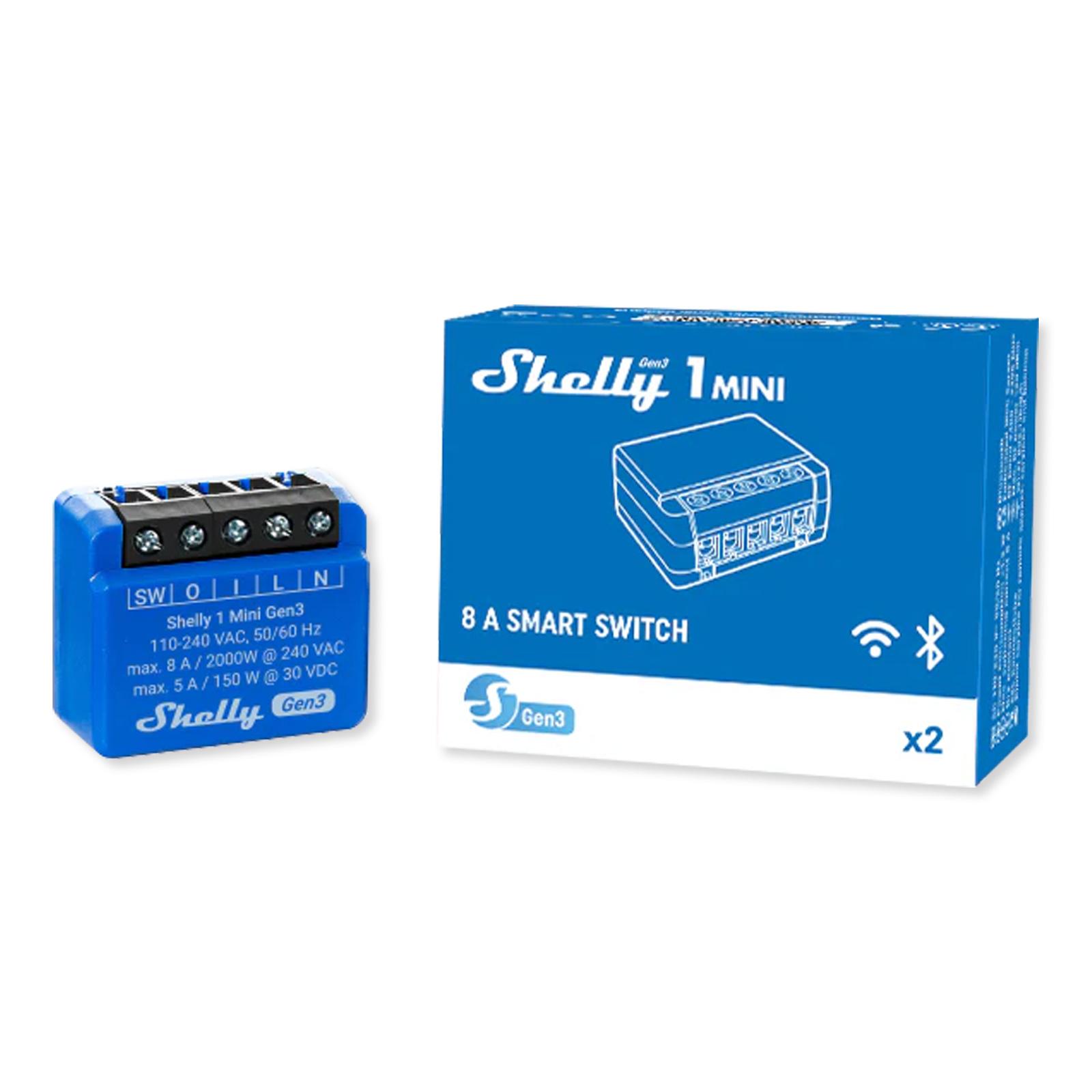

• Wi-Fi 1 Mini Gen3 Smart Relay
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.
