Shelly Wave Pro Shutter US, Z-Wave 800 & Z-Wave LR

Install Z-Wave Control For Your Motorized Shutters & Blinds into Your Breaker Box

Upgrade your motorized shutters, blinds, or awnings with smart Z-Wave control with the Shelly Wave Pro Shutter US Module, Z-Wave 800 & Z-Wave LR. This Z-Wave wired control module mounts directly onto a DIN rail within your breaker box to add remote Z-Wave control over the motor of powered shutters, blinds, rollers, shades and other devices. Completely or partially open or close your connected shutters, blinds, or awnings from your local switch or by using your smart device via Z-Wave remote connections. The Wave Pro Shutter US and its controlled devices can be included into Z-Wave automated scenes such as opening at 7:00am when you wake up and closing at night, or automatically opening/closing when targeted temperatures are reached in order to make your indoors more comfortable. The Wave Pro Shutter US also measures and saves power consumption of the connected device(s) to give you an accurate reading of your motorized device's energy usage to help you save energy and money. The Shelly Wave Pro Shutter US utilizes Z-Wave 800 and Z-Wave LR wireless technology to provide reliable and long range connectivity, increased encryption protection, and easier setup into Z-Wave networks.

• Z-Wave control module adds Open/Close commands to a single motorized installation of rolling shades, shutters, drapery, covers, etc, up to 12.5A

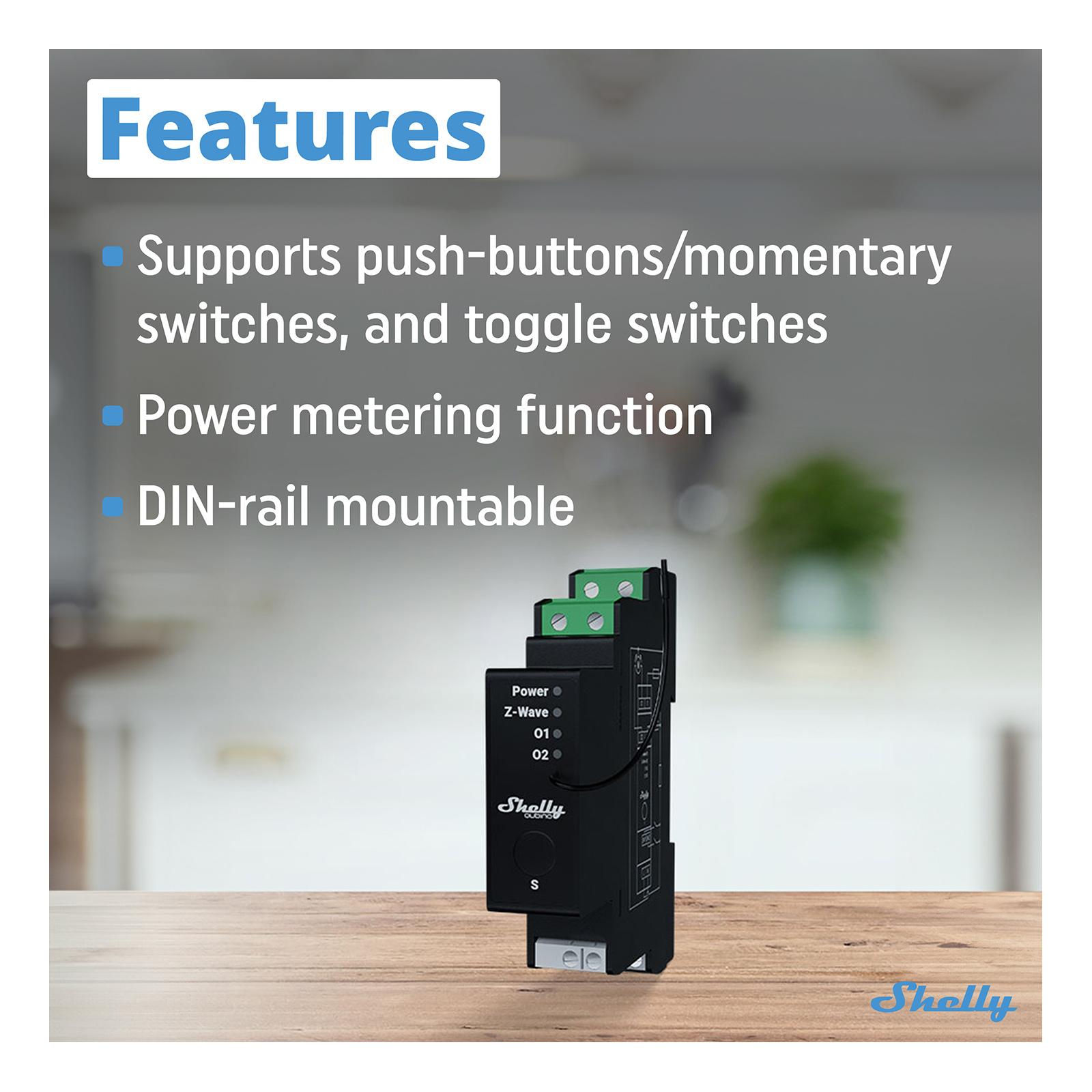

• Precisely adjust the angle of slats and shutters or partially open drapes, pool covers, and awnings; works with push-button switches and toggle switches
• Monitors and records energy consumption of motorized shutters to track activity status and optimize energy usage
• Shares realtime status of controlled devices and delivers usage notifications via Shelly Smart Control app
• Can be included in Z-Wave automated scenes and schedules to turn On/Off according to preset triggers, timers, or time of day
• Supports both standard Z-Wave mesh protocol or Z-Wave LR star protocol to offer users the choice between close range or incredible long range connection
• Standard Z-Wave mesh range reaches up to 130 feet (40m) line of sight to the nearest Z-Wave receiver or hub
• Z-Wave LR protocol uses direct transmissions between the device and hub to reach up to 1 mile (1.6km) line of sight at the cost of no signal repeating
• Z-Wave Smart Start technology pairs new devices quickly and S2 framework ensures enhanced security

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: Shelly Smart Control is natively compatible with Amazon Alexa.

Installation Details

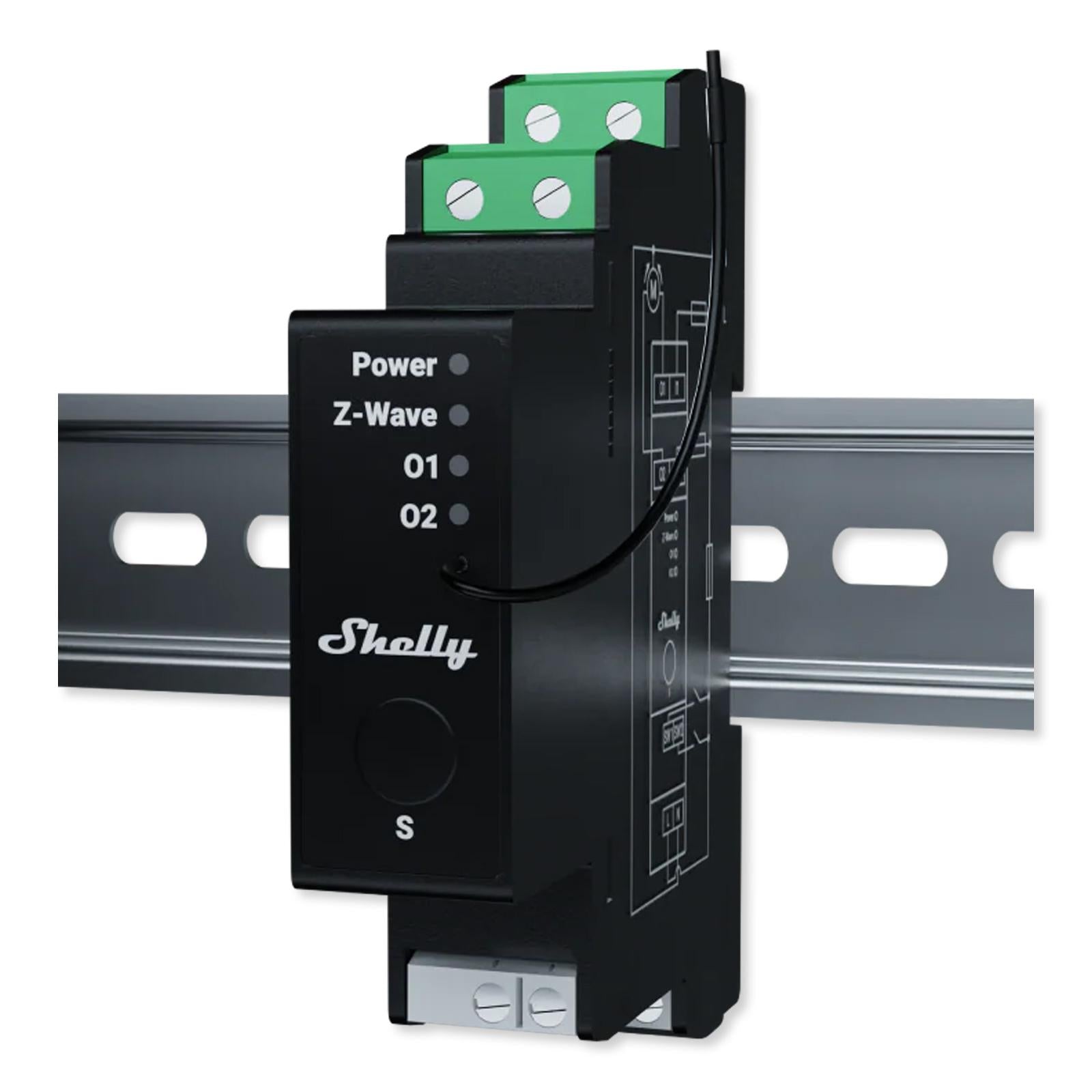

The Shelly Wave Pro Shutter US fits on a DIN rail inside a breaker box, and professional installation is required. A neutral wire is required for installation. The Wave Pro Shutter US will automatically attempt to locate and request inclusion into your local Z-Wave network after it is installed. In order to utilize Z-Wave LR communications, a Z-Wave LR compatible gateway or hub is required. Unlike standard Z-Wave mesh protocols, Z-Wave LR works as a star network, connecting a Z-Wave gateway directly to a Z-Wave LR device up to 1 mile (1.6km) away without using any other Z-Wave devices as a signal relay or node.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 130 feet (40m) to the nearest Z-Wave device, three layers of encryption, faster operation, and longer battery life.

Z-Wave LR Certification

Z-Wave LR extends Z-Wave connectivity beyond the boundaries of a single building with increased range and coverage and optimized battery life. Z-Wave LR devices operate on a star network topology which features a Z-Wave LR compatible gateway/hub at a central point and then establishes a direct connection to devices. ZWLR compatible devices offer up to 262 ft (80 m) indoor range line of sight and 1 mile (1.6km) outdoor without using any other Z-Wave devices as a signal relay or node. Z-Wave networks can support both Z-Wave LR and traditional Z-Wave nodes can co-exist within the same network, enabling a wide variety and combination of Z-Wave devices and Z-Wave LR devices.

Contents

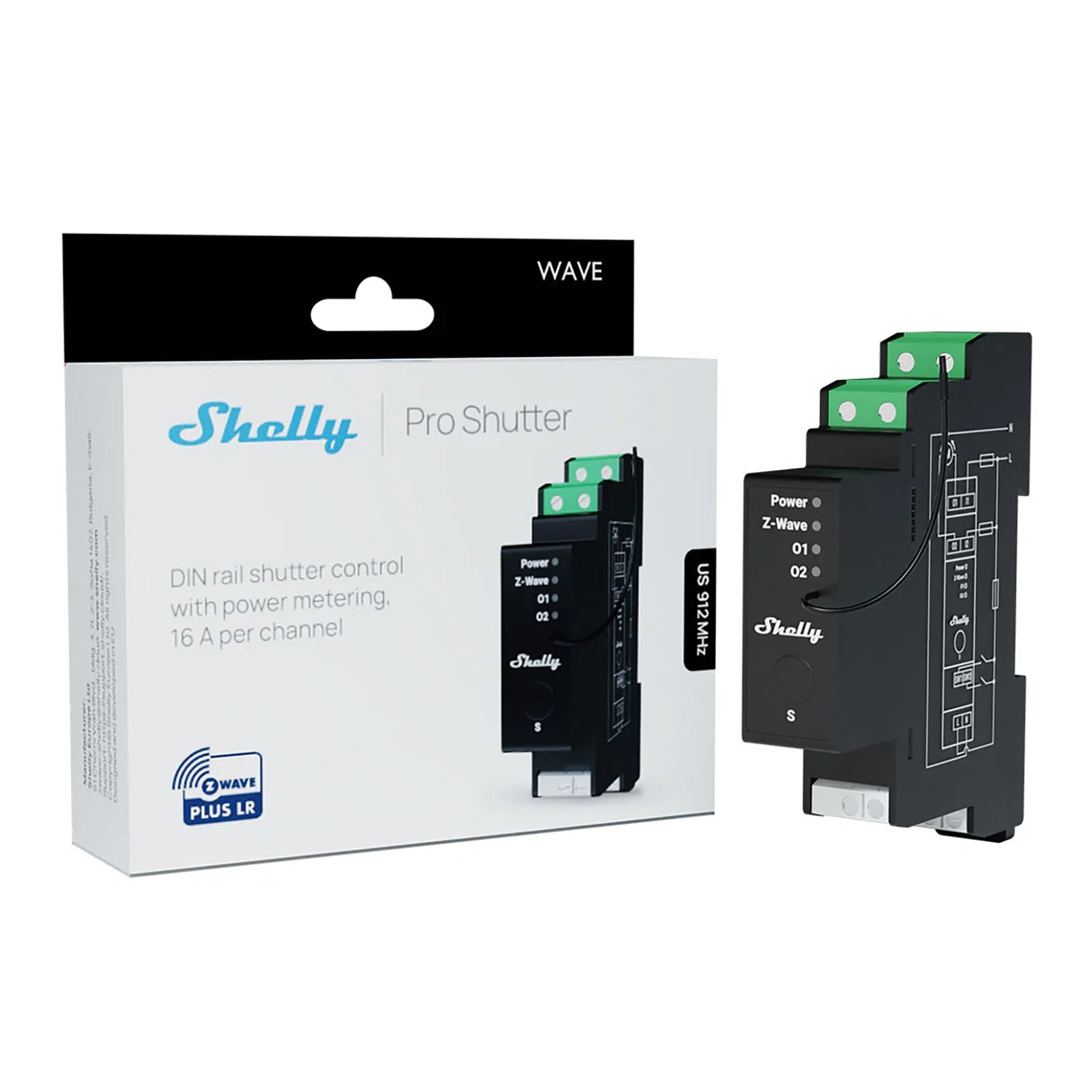

• Wave Pro Shutter US Module
• DSK Label
• User Manual

Notes

• Z-Wave compatible gateway or system hub required, sold separately.
• A neutral wire is required for installation.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.
