  • Leviton EV 48A Level 2 Electric Vehicle Charging Station, 18 Ft. Cable, Wi-Fi

    LVEV48W

    Notify me when this product is available:

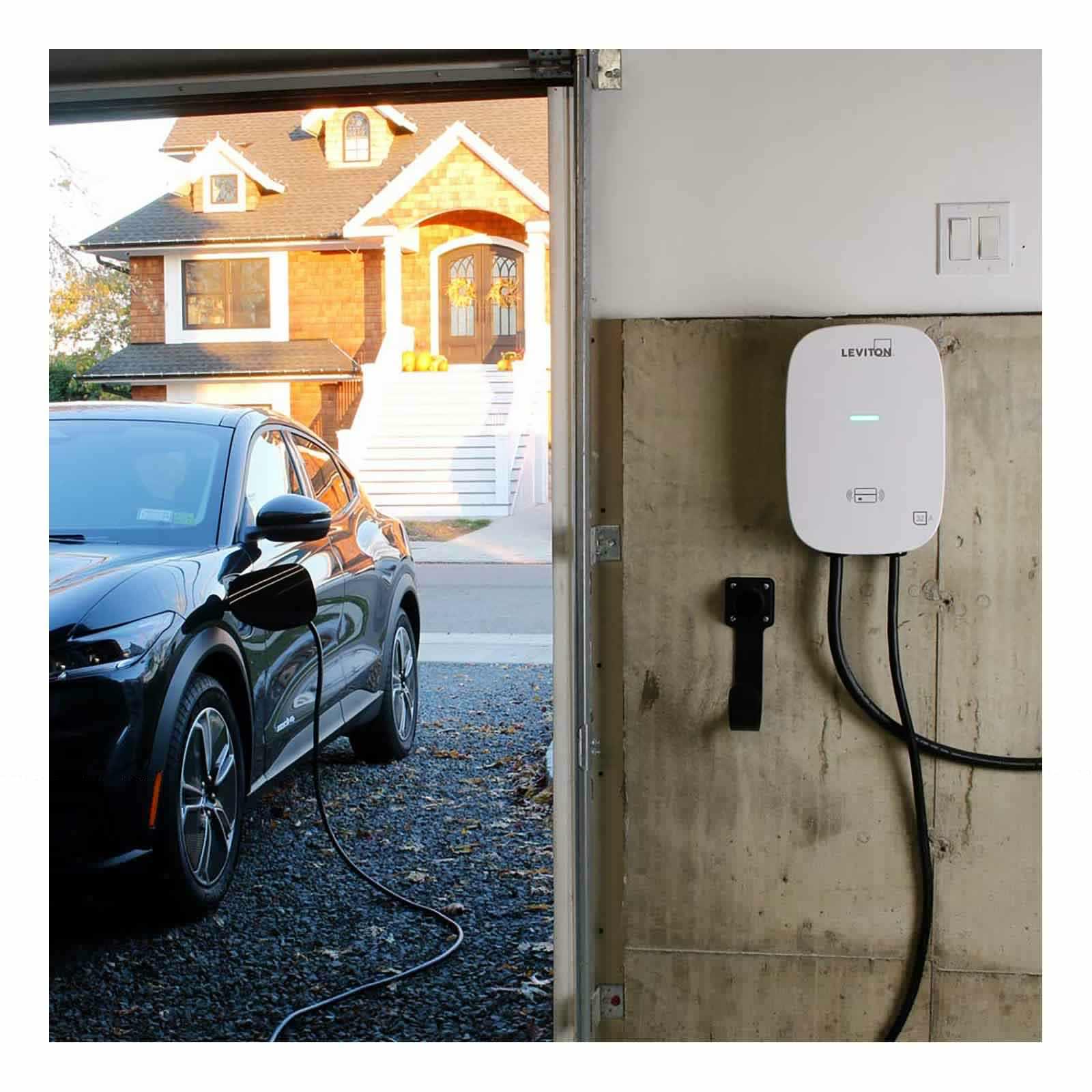

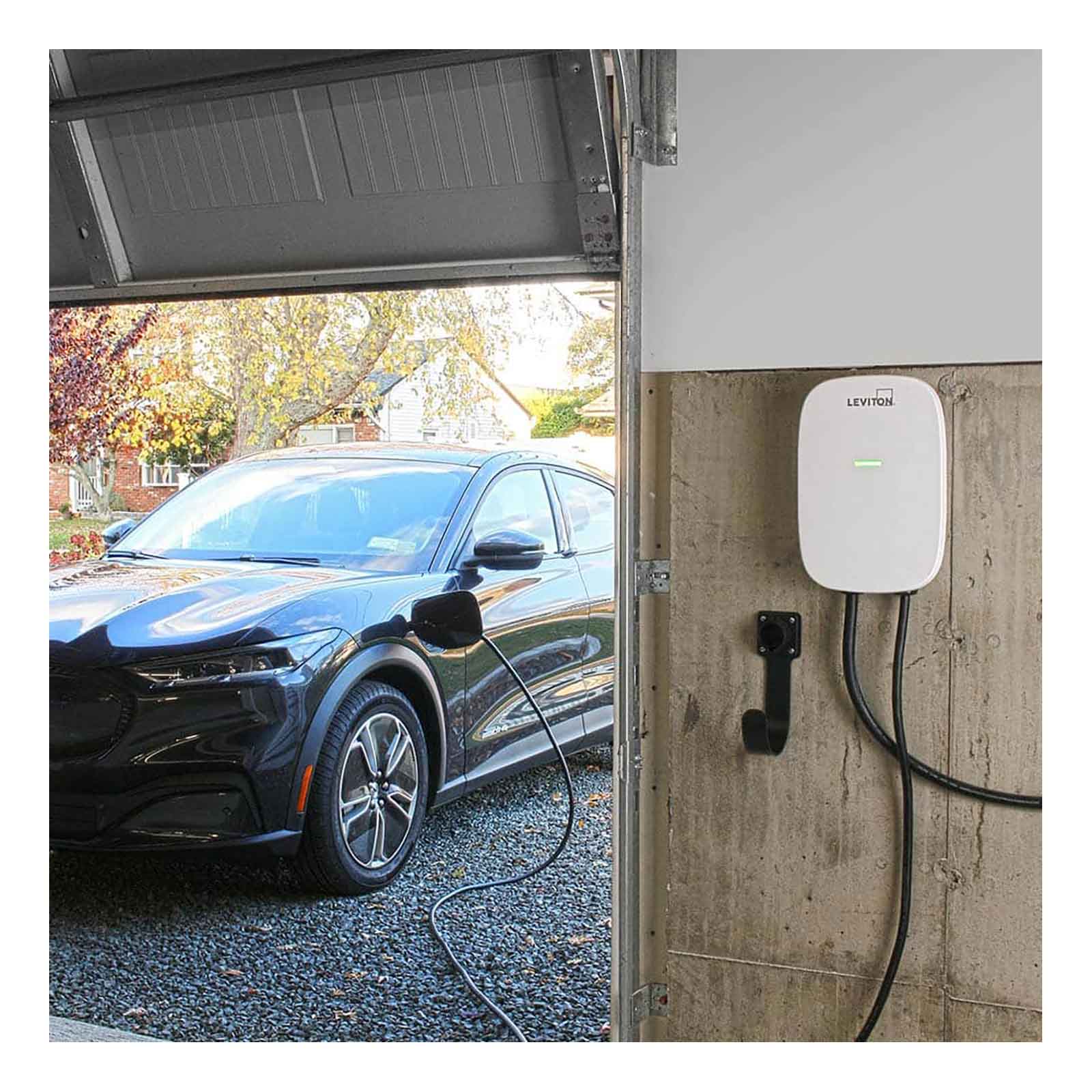

    Fast Wi-Fi Connected Electric Vehicle Charging At Home

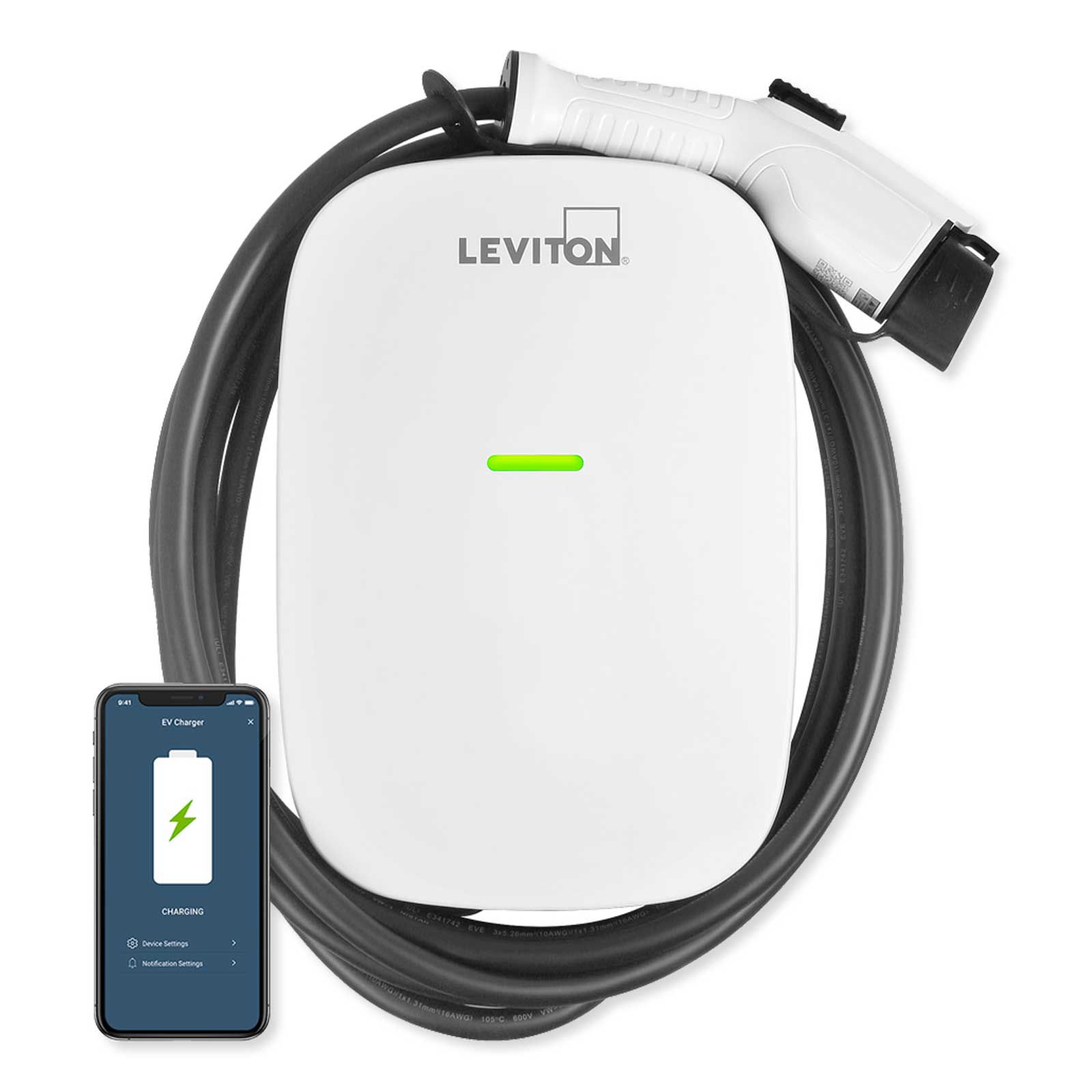

    Bring fast electric vehicle charging to your home for your electric vehicle with the Leviton EV Series 48A Level 2 Electric Vehicle Charging Station, 18' Cable, Wi-Fi. This Level 2 electric vehicle charger delivers up to 11.6kW of power through its 18-foot long weather resistant cable and works with any SAE 1772™ compatible electric vehicle available in North America. It is capable of charging a car five times faster than standard "Level 1" charging stations, helping you get back on the road faster. A built-in RFID reader offers users the ability to tap their RFID card on the front of the unit to instantly turn On/Off the station. This model is Wi-Fi compatible for remote features, including checking on device status and notifications, or remotely turning the charger On/Off when not at home through the My Leviton app.

    • Manufacturer Part #: EV48W
    • UPC: 078477877593
    • Warranty: 2-Year Limited

    Electrical

    • Amperage: 48A
    • Breaker: 60A
    • Voltage: 208/240 VAC
    • Output Power: 11.6kW
    • Short Circuit Current Rating: 20 mA CCID per UL 2231
    • Charging Connector: #10 AWG SAE J1772
    • Number of Phase / Wire: L1, L2 and Ground, Bottom Feed

    Environmental

    • Operating Humidity: 0 to 95 % Relative, Non-Condensing
    • Charging Cord Operating Temperature: -22°F to 122°F (-30°C to 50°C)
    • Operating Altitude: Up to 6,500 ft. (2,000 m)

    Material

    • Locking Mechanism: Phillips Head Screws, No Padloc
