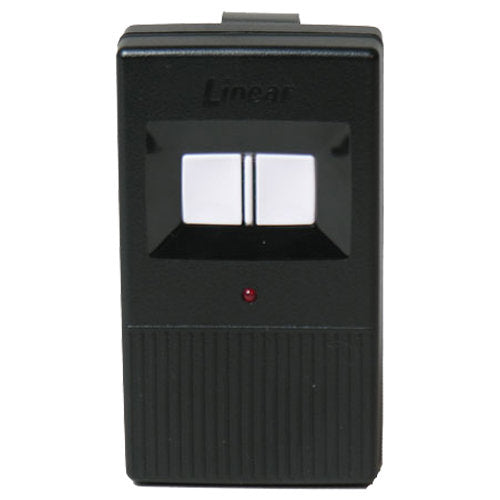

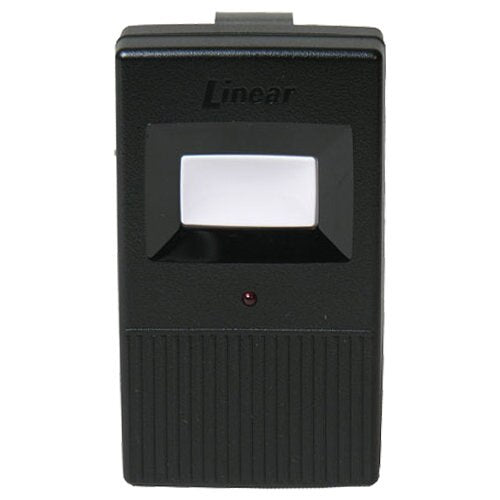

  • Linear MegaCode Block Coded Visor Transmitter

    LNMT2B

    Channel

    Used With Linear’s Access Control Products

    The Linear MegaCode Block Coded Visor Transmitters are designed for use with Linear’s access control products. The Transmitters are available in 1-Channel and 2-Channel versions.

    The 1-channel Transmitter device will send a signal when the button is pushed. The 2-Channel Transmitter will send a channel one signal when the left button is pushed and a channel two signal when the right button is pushed. A visor clip is included.

    The transmitters are MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of code duplication. Because the receiver "learns" each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter.

    Block coded transmitters are factory programmed to a sequential series of transmitter ID codes. When used

    Transmitter Features

    • Compatible with all Linear access receivers and controllers
    • Superior transmission range
    • Factory programmed MegaCode format supports over 1,000,000 codes
    • Operate LED
    • Visor clip included
    • 9-volt battery supplied
    • MegaCode format
    • RF Frequency: 318 MHz
    • 2.2" W x 3.8" H x 0.9" D

    Technical Details

    1-Channel Transmitter

    • Frequency: 318 MHz
    • Number of Codes: 1,000,000 plus ID codes
    • Code Set Method: Factory programmed
    • Channels: one channel
    • Power: one 9 V battery (supplied)
    • Dimensions: 2.2" W x 3.8" H x 0.9" D (56 x 97 x 23 mm)

    2-Channel Transmitter

    • Frequency:
