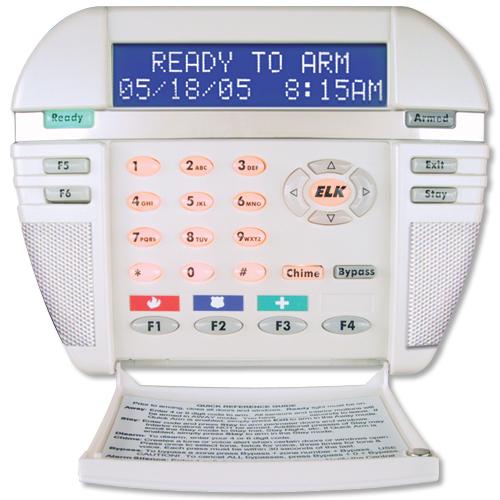

  • Elk M1 LCD Keypad with Blue LCD Display

    ELKM1KPB

    M1 Series Multi-Function Keypad

    The ELK-M1KPB is an addressable LCD Keypad for M1 Controls. It features a 32 character, backlit display with adjustable intensity and extra large character fonts, improving readability. Six (6) function ("F") keys can be programmed to contact emergency services or perform tasks; such as, controlling lights, watering the lawn, closing or opening the garage door, etc. The Elk navigation keys easily guide you through the full list of automation tasks, programming, systems diagnostics, and more. An optional plug-in proximity reader is available allowing prox card or fob arming, disarming, door strike control, etc. The fold down door features magnetic closure and can be completely removed, if desired.

    • Backlit, Large Character LCD Display, 16 x 2 lines
    • Blue LCD Display
    • Six (6) programmable function keys
    • Unique Menu Navigation/Direction keys
    • Adjustable volume for to
    • Manufacturer Part #: ELK-M1KPB
    • UPC: 762158550041
    • Input Connection: 6 Pin Plug-In "Flying Lead" Connector (Included)
    • Operating Voltage: 13.8 Volts DC
    • Current Draw: 40-50mA Idle (low backlight, sound silent) 160mA fully active
    • Color: Glacier White
    • Size: 6.875" x 5.25" x 1.375"
